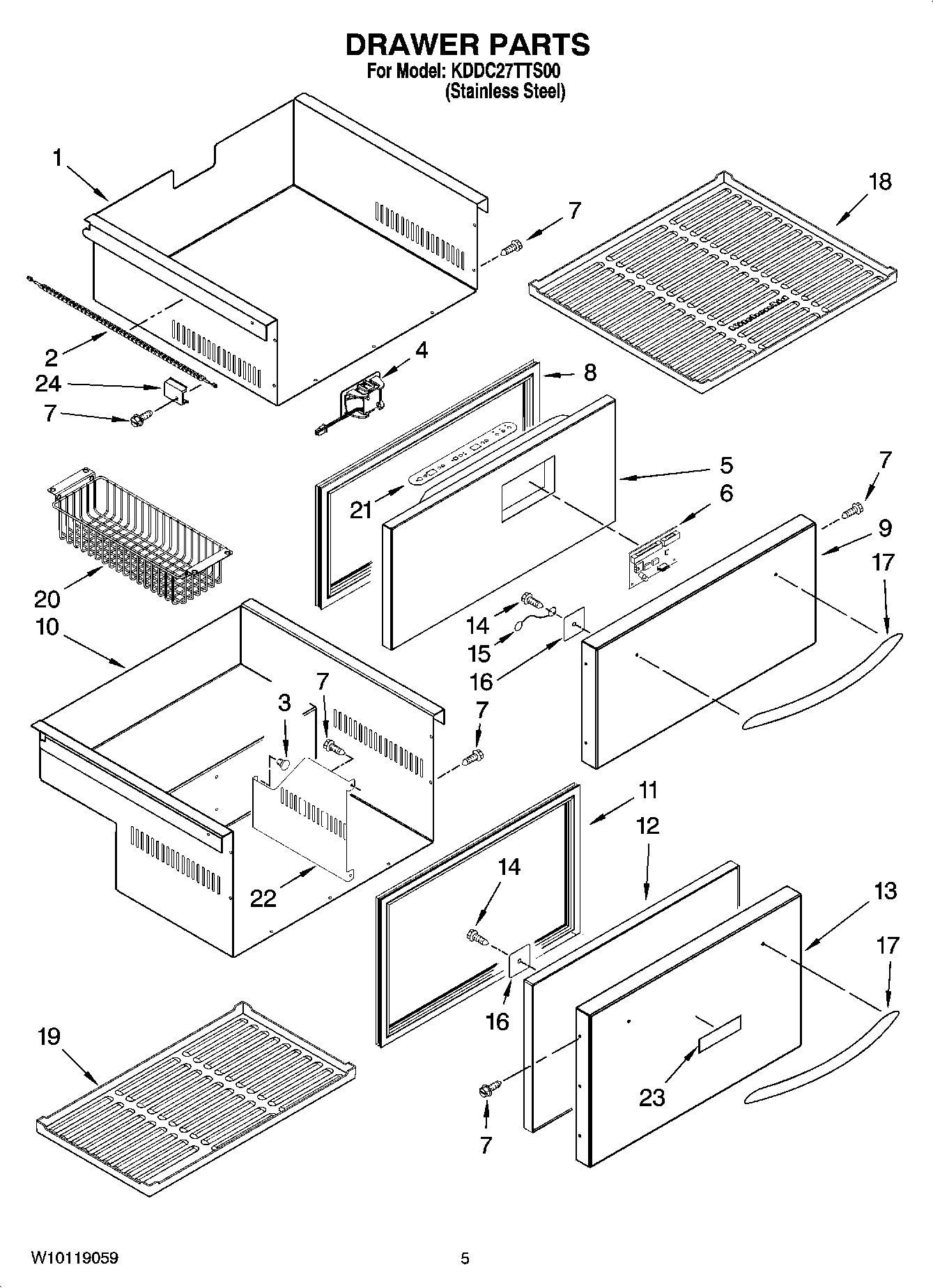

KDDC27TTS00 03 – DRAWER PARTS

Products

PositionProduct
1Drawer, Upper
2Harness, Wiring (Drawer)
3Rivet, Plastic
4Light Assembly (2)
5Drawer Front (Upper)
6Control, Electronic
78534081 Whirlpool Screw Assembly
8Gasket, Upper Drawer
9Skin, Door (Upper)
10Drawer, Lower
11Gasket, Lower Drawer
12Drawer Front (Lower)
13Skin, Door (Lower)
14Screw
15Wire, Ground
16Plate, Backing
17Handle
18Mat, Upper Drawer
19Mat, Lower Drawer
20Basket (2)
21OVERLAY
22DIVIDER
23NAMEPLATE
24Cover, Connector
