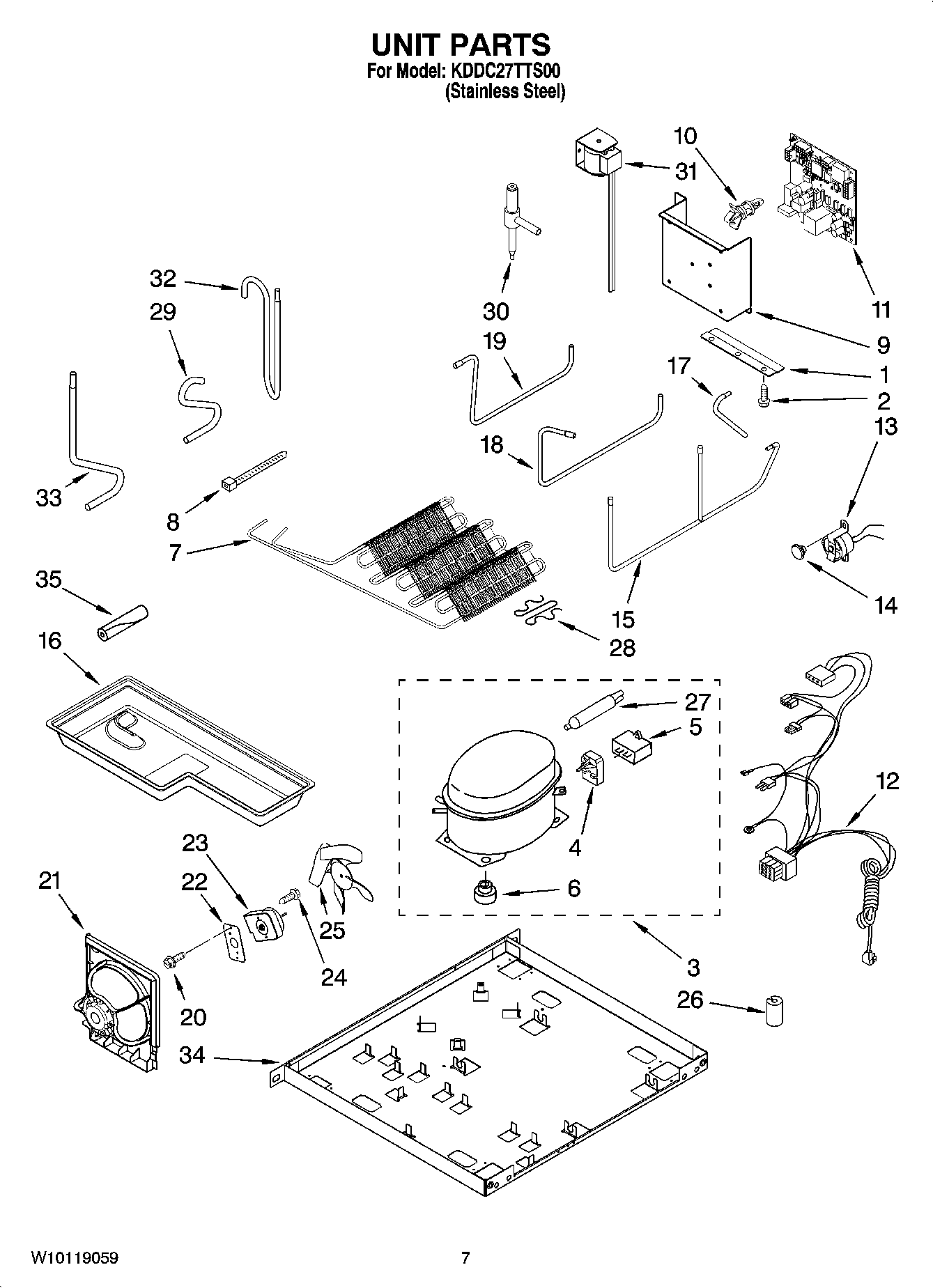

KDDC27TTS00 04 – UNIT PARTS

KDDC27TTS00 04 – UNIT PARTS

Written by

in

KDDC27TTS00 04 – UNIT PARTS

Products

PositionProduct
1Bracket, Control Box
2WP489478 Whirlpool Refrigerator Screw
3COMPRESSOR
4Start-Device Combination
5WPW10662129 Whirlpool Refrigerator Run Capacitor
6WP2163786 Whirlpool Refrigerator Grommet
7CONDENSER
8WPW10339879 Whirlpool Wire Tie
9Box, Control Board
102223800 Whirlpool Refrigerator Spacer
11Control Board (Main)
12Harness, Unit (Includes 13)
13Bi-Metal
14Plug, Button
15Tube, Suction
16Tray, Evaporator
17Tube, Process
18Tube, Drier to Lower Valve
19Tube, Drier to Upper Valve
20WP8281196 Whirlpool Screw
21Fan, Motor Bracket
22Plate
23W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
248281197 Whirlpool Refrigerator Screw
25W11458267 Whirlpool Refrigerator Fan Blade
26W10852725 Whirlpool Refrigerator Grommet
27Drier
28Clip, Compressor (4)
29Tube, Discharge
30Valve, Solenoid (2)
31Coil, Solenoid (2)
32Tube, Heat Loop to Drier
33Tube, Condenser to Heat Loop
34Baseplate
35WP2158826 Whirlpool Refrigerator Dampener
35REFRIGERANT CHARGE 3.25 oz. (R-134A)
