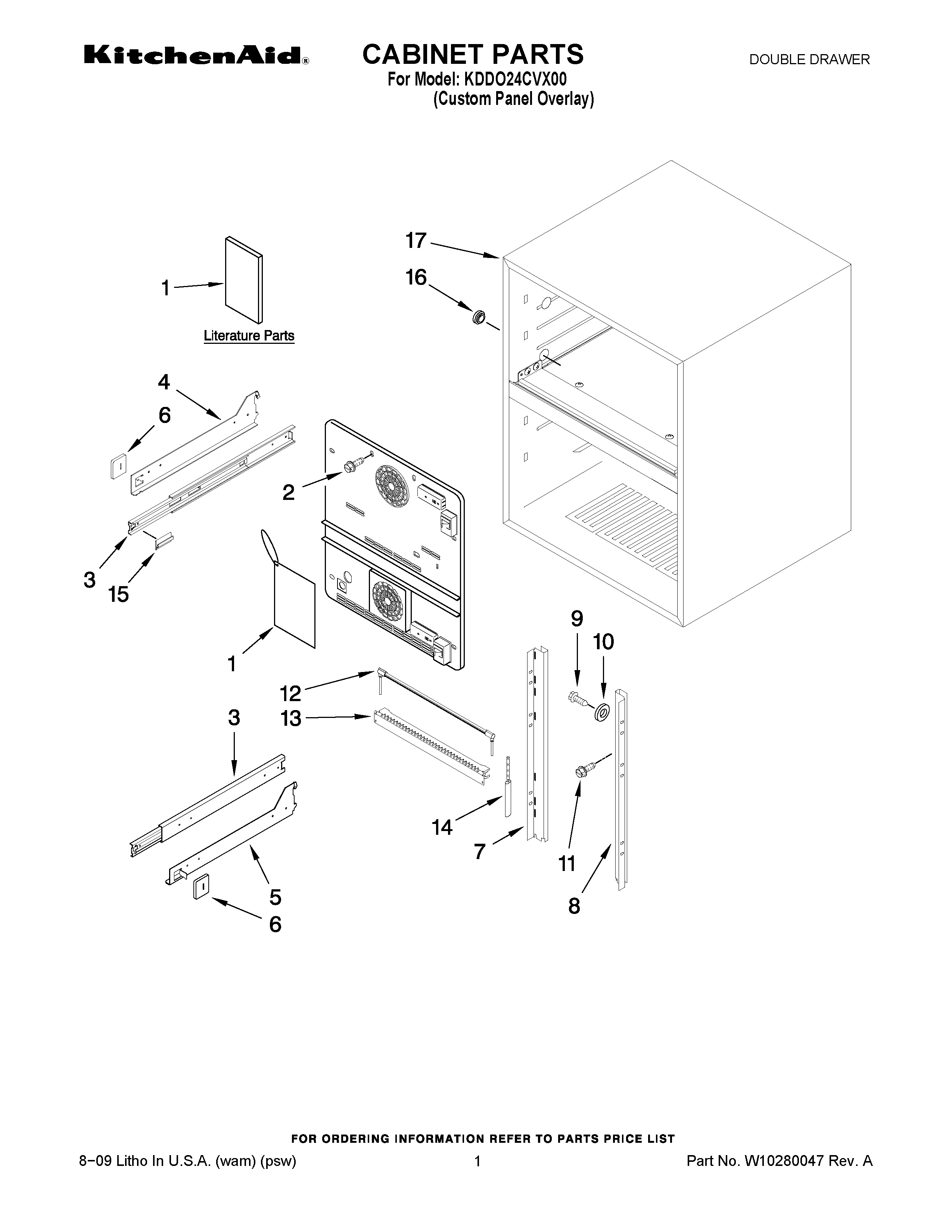

KDDO24CVX00 01 – CABINET PARTS

Products

PositionProduct
1ENERGY GUIDE
1Service & Wiring Sheet
1Use & Care Guide
1Installation Instructions
24344793 Whirlpool Screw
3WPW10233777 Whirlpool Refrigerator Slide
4Support Shelf, LH
4SUPPORT SHELF, LH (BOTTOM DRAWER)
5SUPPORT SHELF, RH (BOTTOM DRAWER)
5Support Shelf, RH
6SUPPORT RUBBER A
7LADDER, LH
8W10304194 Whirlpool Refrigerator Wire Harness
9Screw
10Washer
11SCREW W/WASHER
12W10204610 Whirlpool Refrigerator Heater
134344747 Whirlpool Refrigerator Shield
14W10281315 Whirlpool Refrigerator Bi-Metal
15W10204630 Whirlpool Refrigerator Clip
16Liner Bushing
17CABINET (NOT A SERVICEABLE PART)
