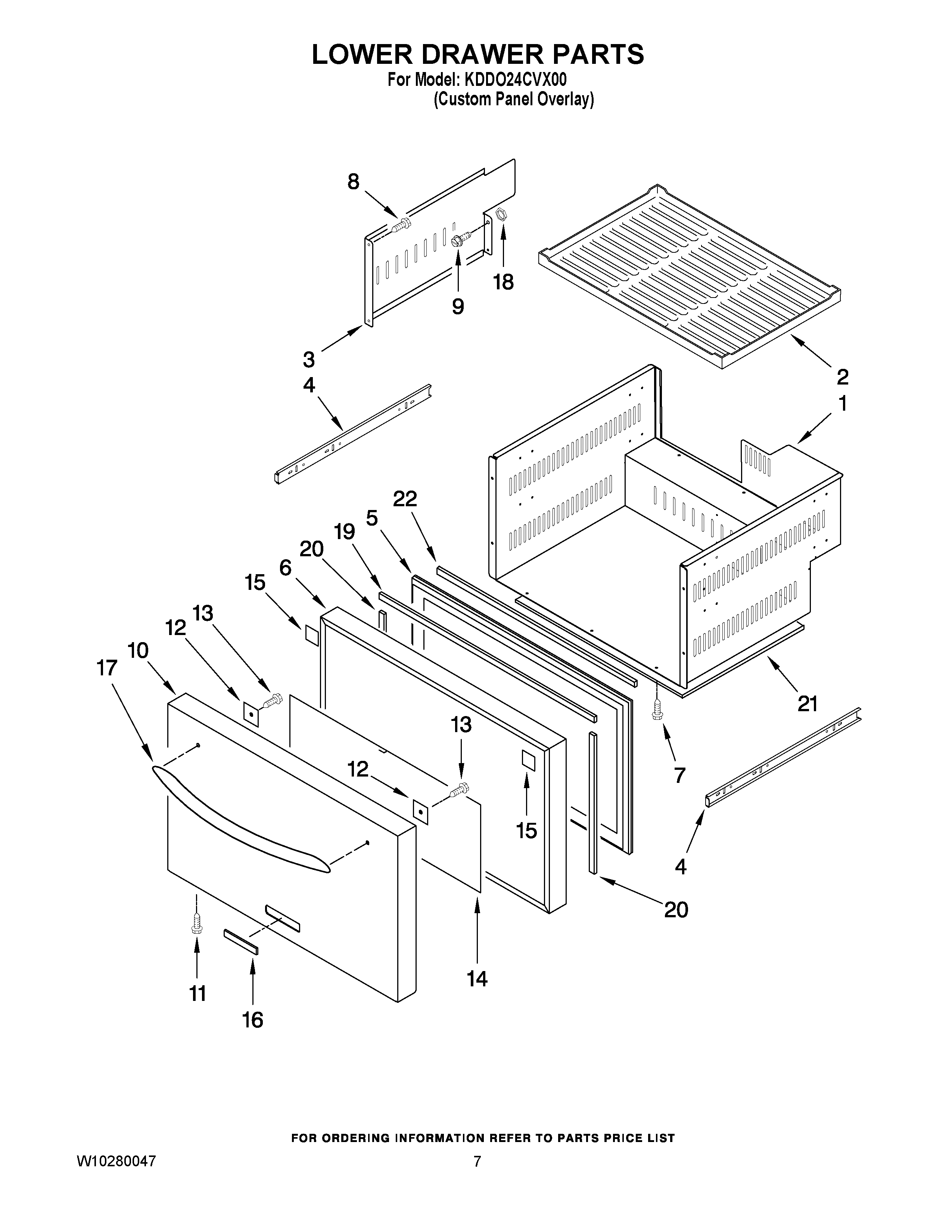

KDDO24CVX00 04 – LOWER DRAWER PARTS

Products

Position	Product
1	DRAWER BOX ASSY.
2	Bottom Mat
3	Drawer Partition
4	WPW10233777 Whirlpool Refrigerator Slide
5	WPW10204700 Whirlpool Refrigerator Gasket
6	Formed Door Assy.
7	W10204808 Whirlpool Refrigerator Screw
8	SCREW
9	W10204810 Whirlpool Screw
10	Overlay Parts Kit
11	W10837731 Whirlpool Screw Assembly
12	Plate
13	W10859467 Whirlpool Refrigerator Screw
14	W10204867 Whirlpool Front Drawer
15	W10204868 Whirlpool Front Drawer
16	NAMEPLATE
17	Door Handle
18	W10204920 Whirlpool Refrigerator Nut
19	W10204889 Whirlpool Refrigerator Gasket
20	W10204897 Whirlpool Refrigerator Gasket
21	DRAWER BOTTOM SEAL
22	COLD AIR SEAL
