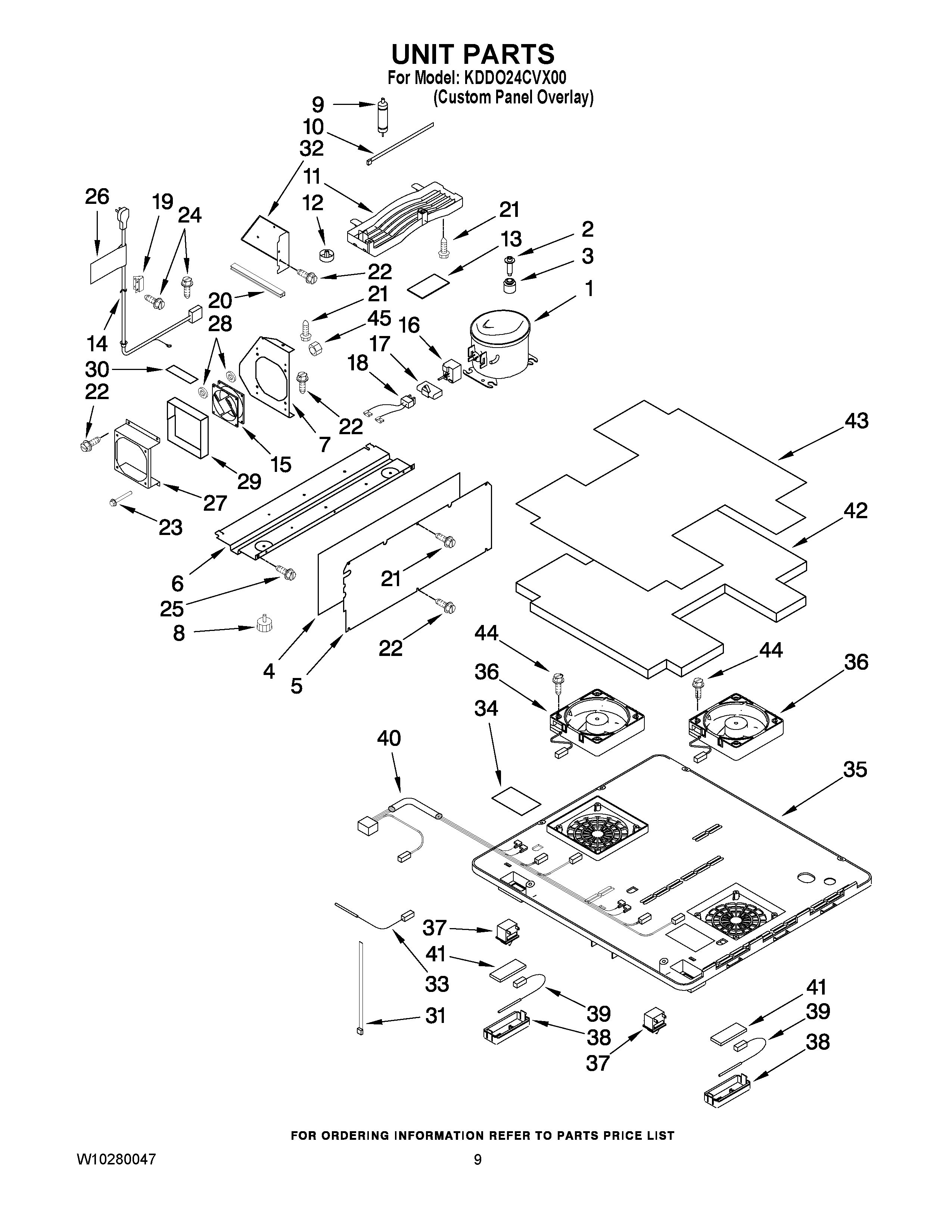

KDDO24CVX00 05 – UNIT PARTSadmin2025-04-26T12:38:38+00:00KDDO24CVX00 05 – UNIT PARTS ProductsPositionProduct1WPW10287744 Whirlpool Refrigerator Compressor2W10772873 Whirlpool Screw3WP4344779 Whirlpool Refrigerator Grommet4Rear Insulation5REAR COVER6CABINET BASE PLATE7W10204674 Whirlpool Refrigerator Baffle8W11106296 Whirlpool Refrigerator Leveler9W10163273 Whirlpool Refrigerator Tube11Drain Pan12W10163276 Whirlpool Refrigerator Trap13W10163274 Whirlpool Pad14WPW10204676 Whirlpool Refrigerator Power Cord15W10204677 Whirlpool Refrigerator Condenser Motor16W10287745 Whirlpool Refrigerator Overload17W10287848 Whirlpool Refrigerator Thermistor18CAPACITOR19CLAMP, CORD20TRIM, EDGE21SCREW22W11380570 Whirlpool Microwave Screw23BOLT244344826 Whirlpool Refrigerator Screw25BOLT264344913 Whirlpool Label Assembly27Fan Cover28W10204688 Whirlpool Plate Assembly29Vibration Rubber A30Vibration Rubber B314344829 Whirlpool Tie Wire32BRACKET, DEFROST TIMER33W10205063 Whirlpool Thermistor34W10205062 Whirlpool Wire Cover35Fan Cover36W10854409 Whirlpool Refrigerator Evaporator Motor37W10270520 Whirlpool Refrigerator Switch38Sensor Case39WPW10204946 Whirlpool Refrigerator Thermistor40W10204947 Whirlpool Refrigerator Wire Harness41W10204948 Whirlpool Refrigerator Control Box42W10281541 Whirlpool Refrigerator Sealer43PLATE COVER44W10205061 Whirlpool Screw Assembly45NUT
