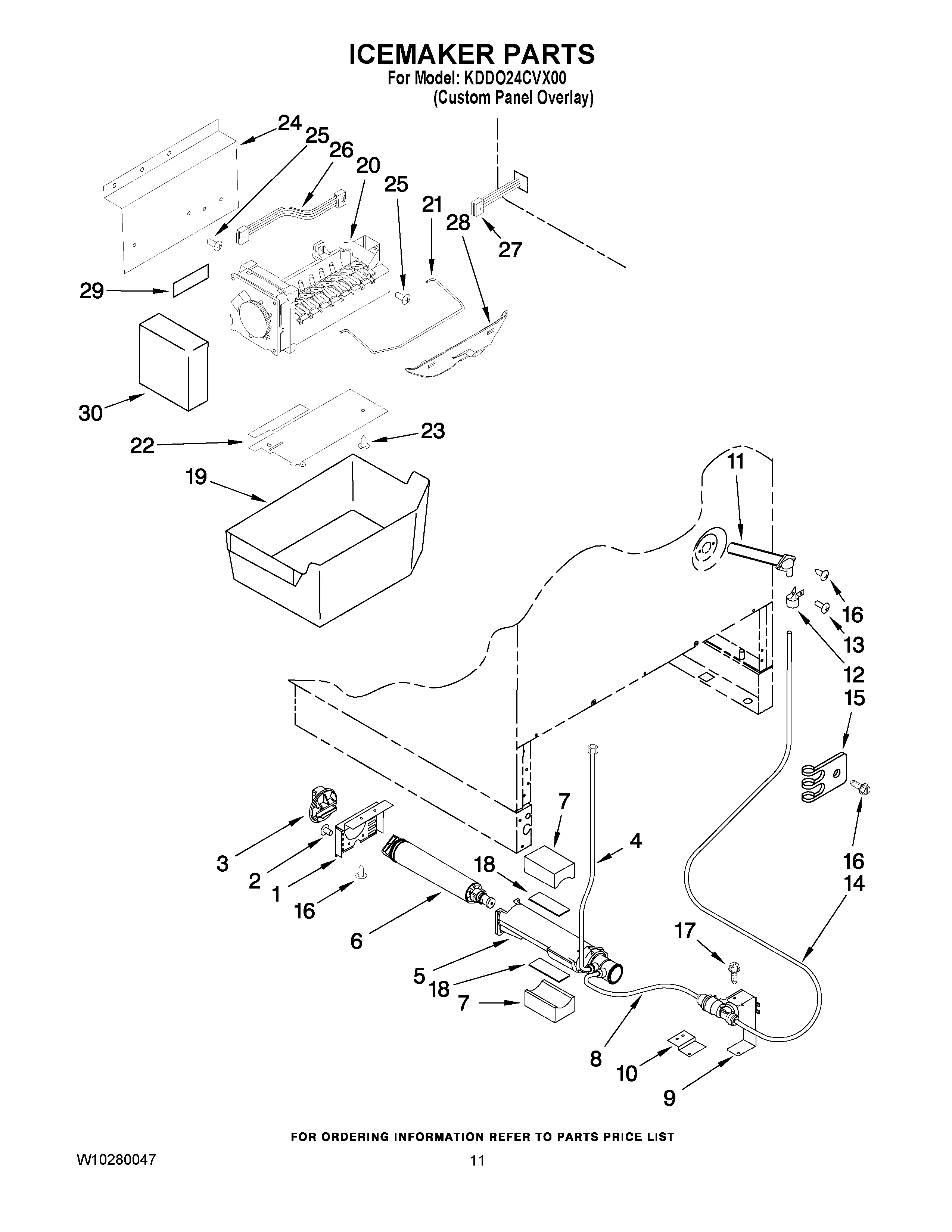

KDDO24CVX00 06 – ICEMAKER PARTSadmin2025-04-26T12:38:53+00:00KDDO24CVX00 06 – ICEMAKER PARTS ProductsPositionProduct1BRACKET, FILTER2SCREW, SUPPORT3WP2186494B Whirlpool Refrigerator Filter Cap48201597 Whirlpool Inlet Water Fill Tube Kit Filter5WP2225521 Whirlpool Water Filter Housing6EDR6D1 Whirlpool EveryDrop® Ice and Water Refrigerator Filter 6 (Dark Bl7W10281561 Whirlpool Refrigerator Block8W10772928 Whirlpool Refrigerator Water Tube9VALVE-INLT REFR10W10281565 Whirlpool Refrigerator Bracket11WP2196157 Whirlpool Fill Tube12WP488878 Whirlpool Refrigerator Tube Clamp13SCREW14W10281586 Whirlpool Refrigerator Fitting15TUBE CLAMP16SCREW17SCREW18TAPE, FILTER19PAN-ICE204317943 Whirlpool Refrigerator Ice Maker Assembly21W10281546 Whirlpool Refrigerator Arm Shut222256178 Whirlpool Shield Assembly23Screw24PLATE, MOUNTING25SCREW26HARNESS, DEFROST27W10281551 Whirlpool Refrigerator Wire Harness28W10281552 Whirlpool Refrigerator Extension29W10281553 Whirlpool Refrigerator Shield30WPW10289690 Whirlpool Ice Maker Cover
