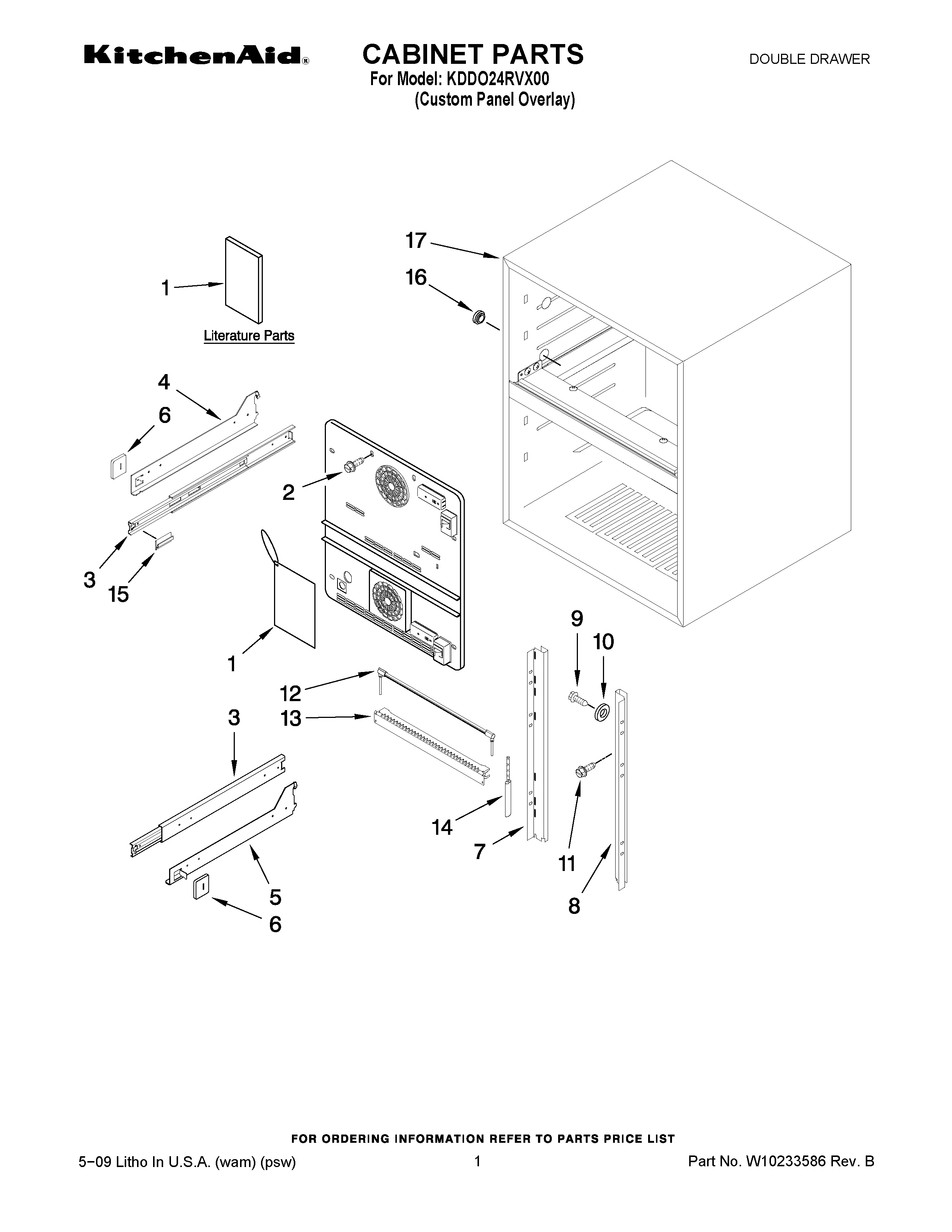

KDDO24RVX00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Energy Guide
1	Use & Care Guide
1	Installation Instructions
2	4344793 Whirlpool Screw
3	WPW10233777 Whirlpool Refrigerator Slide
4	Support Shelf, LH
5	Support Shelf, RH
6	Support Rubber A
7	Ladder, Shelf (Left Side)
8	Ladder, Shelf (Right Side)
9	Screw
10	Washer
11	SCREW W/WASHER
12	W10204610 Whirlpool Refrigerator Heater
13	4344747 Whirlpool Refrigerator Shield
14	W10204621 Whirlpool Refrigerator Bimetal Defrost
15	W10204630 Whirlpool Refrigerator Clip
16	Liner Bushing
17	Cabinet (Not A Servicable Part)
