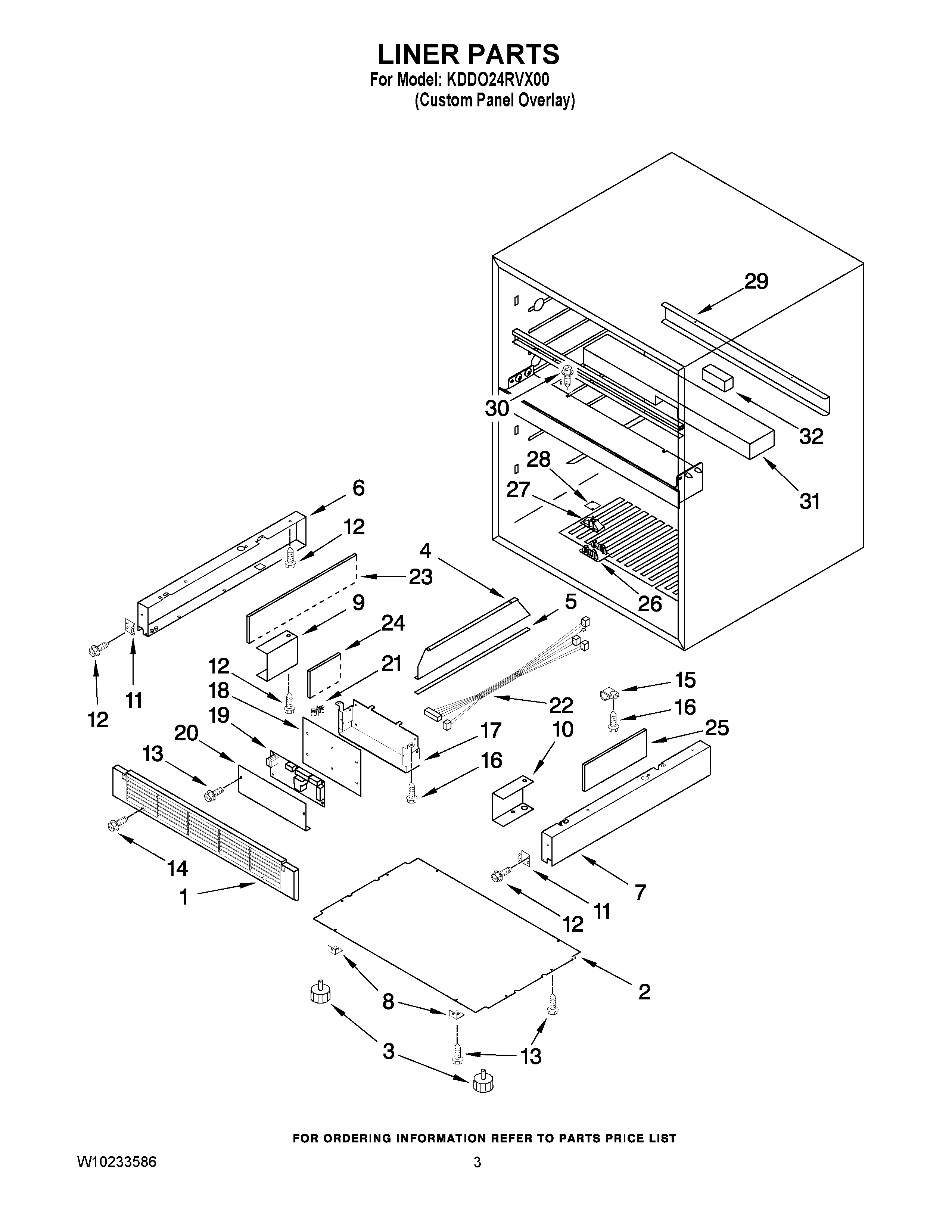

KDDO24RVX00 02 – LINER PARTS

Products

Position	Product
1	W10204635 Whirlpool Refrigerator Grille
2	Plate, Bottom
3	W11106296 Whirlpool Refrigerator Leveler
4	Brace, Support
5	4344823 Whirlpool Refrigerator Seal
6	4344789 Whirlpool Refrigerator Support
7	Frame, Side (Right Side)
8	4344771 Whirlpool Refrigerator Clip
9	4344820 Whirlpool Refrigerator Support
10	4344821 Whirlpool Refrigerator Support
11	W10204640 Whirlpool Refrigerator Clip
12	4344797 Whirlpool Screw
13	4344826 Whirlpool Refrigerator Screw
14	W10837731 Whirlpool Screw Assembly
15	W11456069 Whirlpool Refrigerator Clamp
16	SCREW
17	Main PCB Box
18	PCB Box Film
19	Main PCB
20	PCB Box Cover
21	W10204659 Whirlpool Refrigerator Spacer
22	W10204663 Whirlpool Refrigerator Wire Harness
23	Acoustic Foam B
24	Acoustic Foam C
25	Acoustic Foam A
26	W10204929 Whirlpool Cover
27	W10204931 Whirlpool Socket Assembly
28	W10204930 Whirlpool Refrigerator Light Lens
29	Mullion Cover
30	Screw
31	Mullion Insulation
32	W10205072 Whirlpool Refrigerator Insulation
