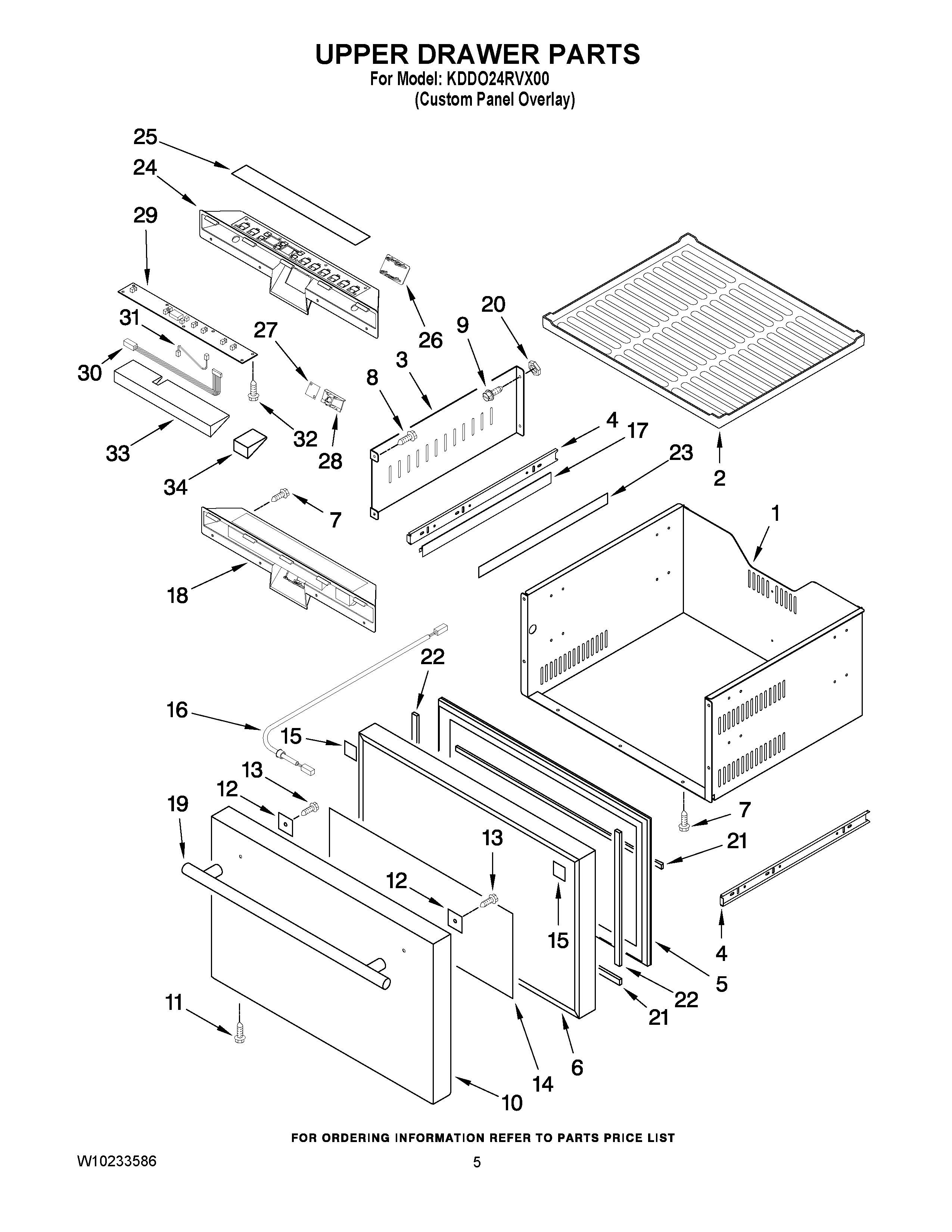

KDDO24RVX00 03 – UPPER DRAWER PARTSadmin2025-04-26T10:58:15+00:00KDDO24RVX00 03 – UPPER DRAWER PARTS ProductsPositionProductNIOverlay Parts Kit1Drawer Box Assy.2Top Mat3Drawer Partition4WPW10233777 Whirlpool Refrigerator Slide5WPW10204700 Whirlpool Refrigerator Gasket6Top Door Assy.7W10204808 Whirlpool Refrigerator Screw8SCREW9W10204810 Whirlpool Screw10Top Wrap11W10837731 Whirlpool Screw Assembly12Plate13W10859467 Whirlpool Refrigerator Screw14W10204867 Whirlpool Front Drawer15W10204868 Whirlpool Front Drawer16W10488357 Whirlpool Refrigerator Wire Harness17Lead Wire Support18Control Panel Assy19Door Handle20W10204920 Whirlpool Refrigerator Nut21W10204889 Whirlpool Refrigerator Gasket22W10204897 Whirlpool Refrigerator Gasket23W10205081 Whirlpool Refrigerator Tape24Control Panel25Label, Panel26W10204929 Whirlpool Cover27W10204930 Whirlpool Refrigerator Light Lens28W10204931 Whirlpool Socket Assembly29WPW10204932-includeCORE Whirlpool Electronic Control+Core30W10204933 Whirlpool Refrigerator Wire Harness31W10304194 Whirlpool Refrigerator Wire Harness32Screw33Panel Insulation34Panel Insulation B
