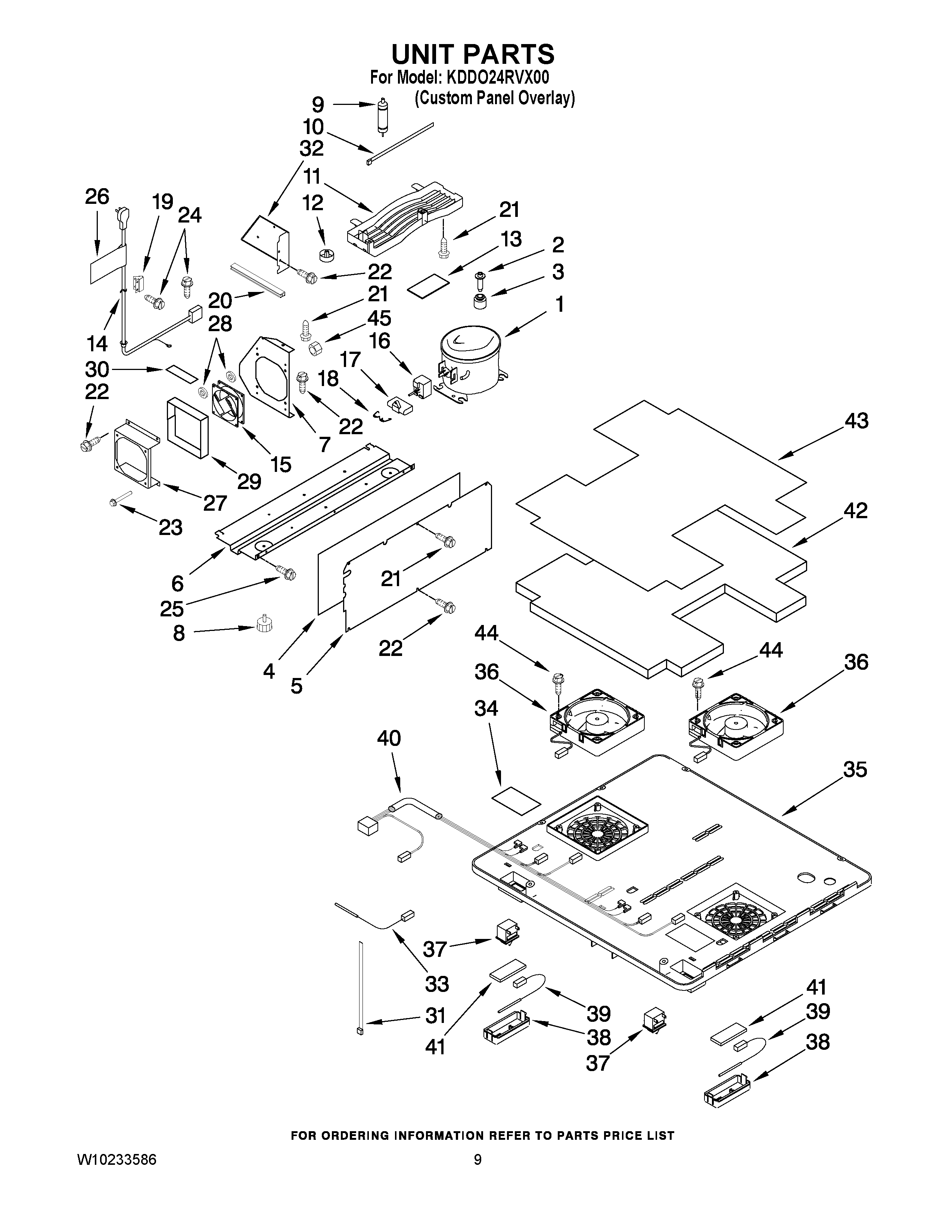

KDDO24RVX00 05 – UNIT PARTS

Products

Position	Product
NI	Warning Label
NI	REFRIGERANT CHARGE (3.25 OZ. 3.25 OZ.)
1	8201787 Whirlpool Refrigerator Compressor
2	W10772873 Whirlpool Screw
3	WP4344779 Whirlpool Refrigerator Grommet
4	Rear Insulation
5	4344786 Whirlpool Back Cover
6	Cabinet Base Plate
7	W10204674 Whirlpool Refrigerator Baffle
8	W11106296 Whirlpool Refrigerator Leveler
9	W10163273 Whirlpool Refrigerator Tube
11	Drain Pan
12	W10163276 Whirlpool Refrigerator Trap
13	W10163274 Whirlpool Pad
14	WPW10204676 Whirlpool Refrigerator Power Cord
15	W10204677 Whirlpool Refrigerator Condenser Motor
16	WP4344776 Whirlpool Refrigerator Start Device
17	WP1188476 Whirlpool Air Conditioner Capacitor
18	WP4344836 Whirlpool Clip
19	Clip, Bushing
20	TRIM, EDGE
21	SCREW
22	W11380570 Whirlpool Microwave Screw
23	Bolt
24	4344826 Whirlpool Refrigerator Screw
25	4344797 Whirlpool Screw
26	4344913 Whirlpool Label Assembly
27	Fan Cover
28	W10204688 Whirlpool Plate Assembly
29	Vibration Rubber A
30	Vibration Rubber B
31	4344829 Whirlpool Tie Wire
32	BRACKET, DEFROST TIMER
33	W10205063 Whirlpool Thermistor
34	W10205062 Whirlpool Wire Cover
35	Fan Cover
36	W10854409 Whirlpool Refrigerator Evaporator Motor
37	W10270520 Whirlpool Refrigerator Switch
38	Sensor Case
39	WPW10204946 Whirlpool Refrigerator Thermistor
40	W10204947 Whirlpool Refrigerator Wire Harness
41	W10204948 Whirlpool Refrigerator Control Box
42	Insulation
43	Plate Cover
44	W10205061 Whirlpool Screw Assembly
45	NUT
