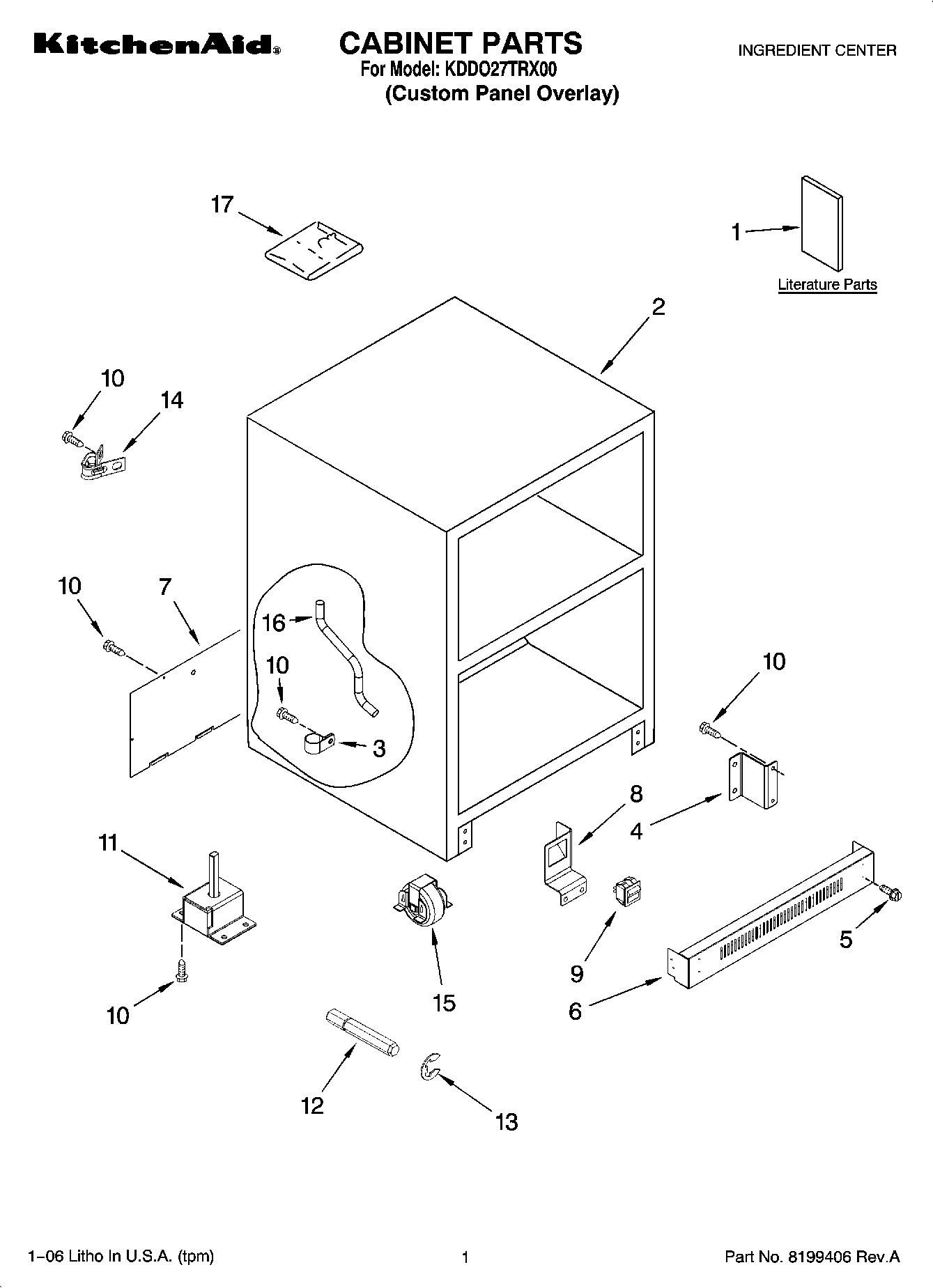

KDDO27TRX00 01 – CABINET PARTS

Products

PositionProduct
1Energy Guide
1Use & Care Guide
1Installation Instructions
1Service & Wiring Sheet
2Cabinet (Not A Servicable Part)
3Clamp, Drain Tube
4Bracket, Grille
5W10851443 Whirlpool Refrigerator Screw
6GRILLE
7Cover, Unit
8Bracket, Switch
9WP2266802 Whirlpool Refrigerator Switch
10WP489478 Whirlpool Refrigerator Screw
112005032 Whirlpool Refrigerator Leveler
12Rod, Leveler (Rear (2))
12Rod, Leveler (Front (2))
132006841 Whirlpool Ring
14549193 Whirlpool Refrigerator Power Clamp
15WPW10138054 Whirlpool Refrigerator Cabinet Roller
16Tube, Drain
17Kit, Mounting (4 brackets & 16 screws)
