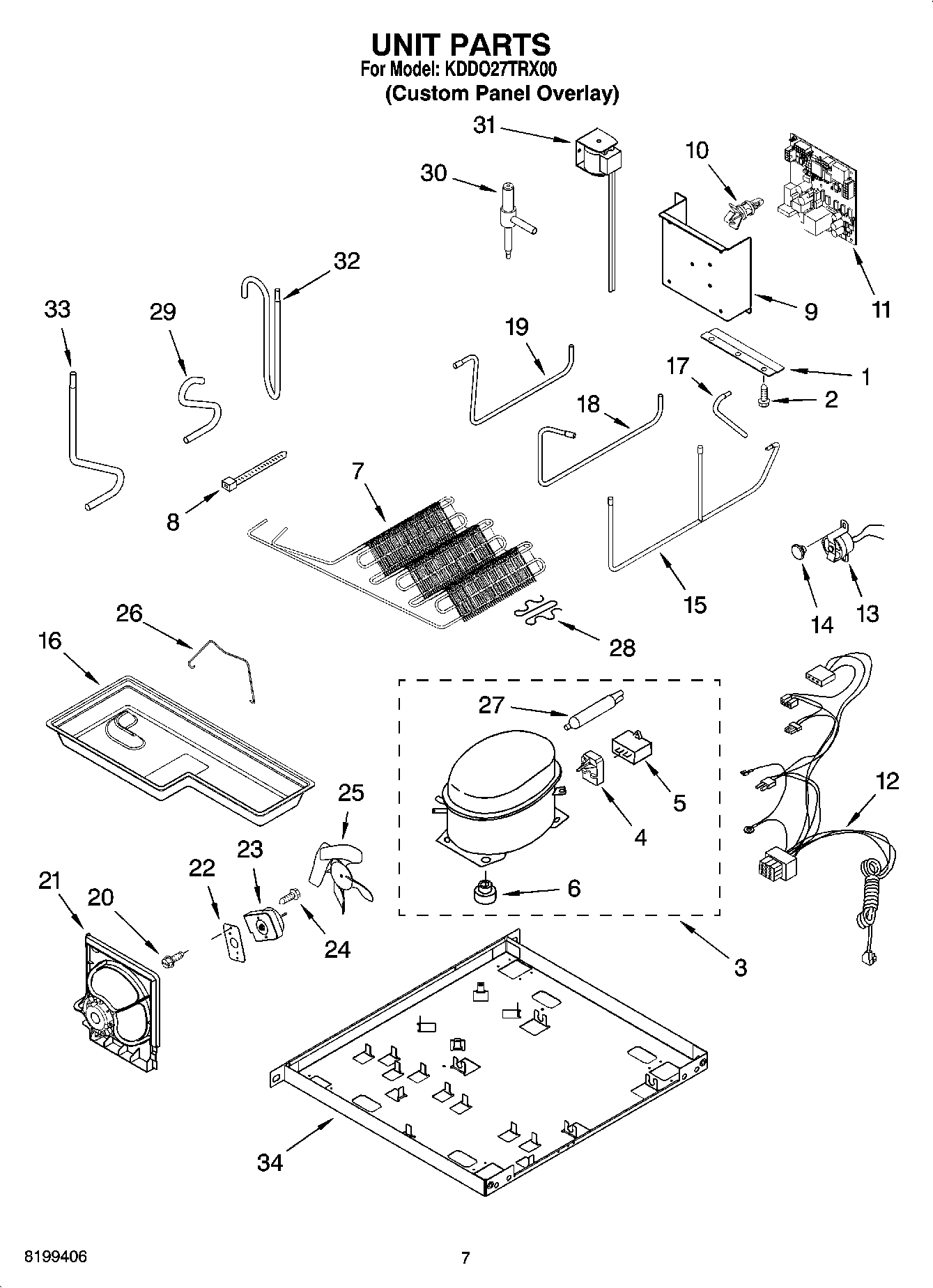

KDDO27TRX00 04 – UNIT PARTSadmin2025-04-26T12:36:58+00:00KDDO27TRX00 04 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Bracket, Control Box |
| 2 | WP489478 Whirlpool Refrigerator Screw |
| 3 | COMPRESSOR |
| 4 | Start-Device Combination |
| 5 | WPW10662129 Whirlpool Refrigerator Run Capacitor |
| 6 | WP2163786 Whirlpool Refrigerator Grommet |
| 7 | CONDENSER |
| 8 | WPW10339879 Whirlpool Wire Tie |
| 9 | Box, Control Board |
| 10 | 2223800 Whirlpool Refrigerator Spacer |
| 11 | Control Board (Main) |
| 12 | Harness, Unit (Includes 13) |
| 13 | Bi-Metal |
| 14 | Plug, Button |
| 15 | Tube, Suction |
| 16 | Tray, Evaporator |
| 17 | Tube, Process |
| 18 | Tube, Drier to Lower Valve |
| 19 | Tube, Drier to Upper Valve |
| 20 | WP8281196 Whirlpool Screw |
| 21 | Fan, Motor Bracket |
| 22 | Plate |
| 23 | W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade |
| 24 | 8281197 Whirlpool Refrigerator Screw |
| 25 | W11458267 Whirlpool Refrigerator Fan Blade |
| 26 | Clip, Retaining |
| 27 | Drier |
| 28 | Clip, Compressor (4) |
| 29 | Tube, Discharge |
| 30 | Valve, Solenoid (2) |
| 31 | Coil, Solenoid (2) |
| 32 | Tube, Heat Loop to Drier |
| 33 | Tube, Condenser to Heat Loop |
| 34 | Baseplate |
| 34 | REFRIGERANT CHARGE 3.25 oz. (R-134A) |
