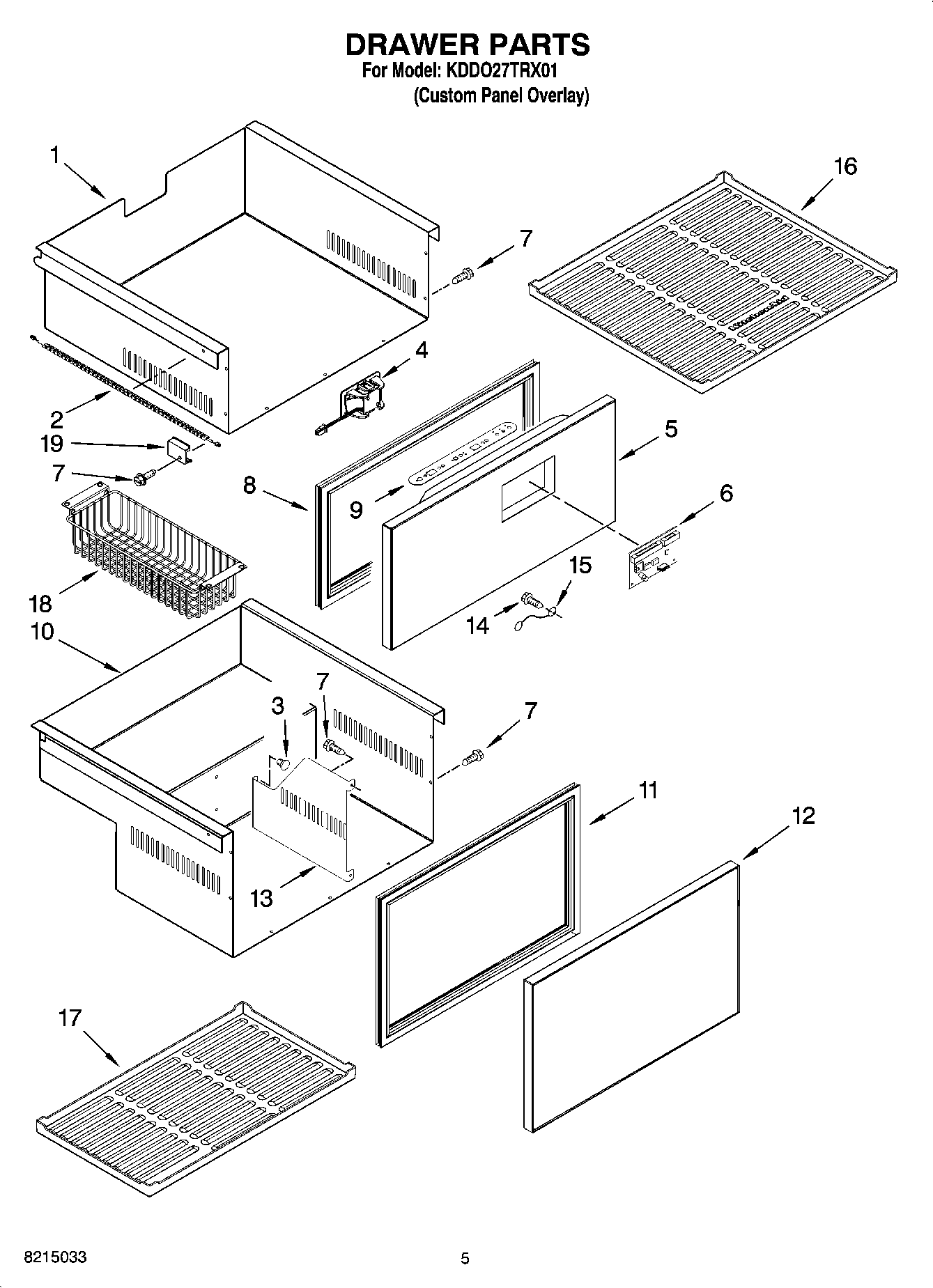

KDDO27TRX01 03 – DRAWER PARTSadmin2025-04-26T12:38:14+00:00KDDO27TRX01 03 – DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | Drawer, Upper |
| 2 | Harness, Wiring (Drawer) |
| 3 | Rivet, Plastic |
| 4 | Light Assembly (2) |
| 5 | Drawer Front (Upper) |
| 6 | Control, Electronic |
| 7 | 8534081 Whirlpool Screw Assembly |
| 8 | Gasket, Upper Drawer |
| 9 | OVERLAY |
| 10 | Drawer, Lower |
| 11 | Gasket, Lower Drawer |
| 12 | Drawer Front (Lower) |
| 13 | DIVIDER |
| 14 | WP489478 Whirlpool Refrigerator Screw |
| 15 | Wire, Ground |
| 16 | Mat, Upper Drawer |
| 17 | Mat, Lower Drawer |
| 18 | Basket (2) |
| 19 | Cover, Connector |
