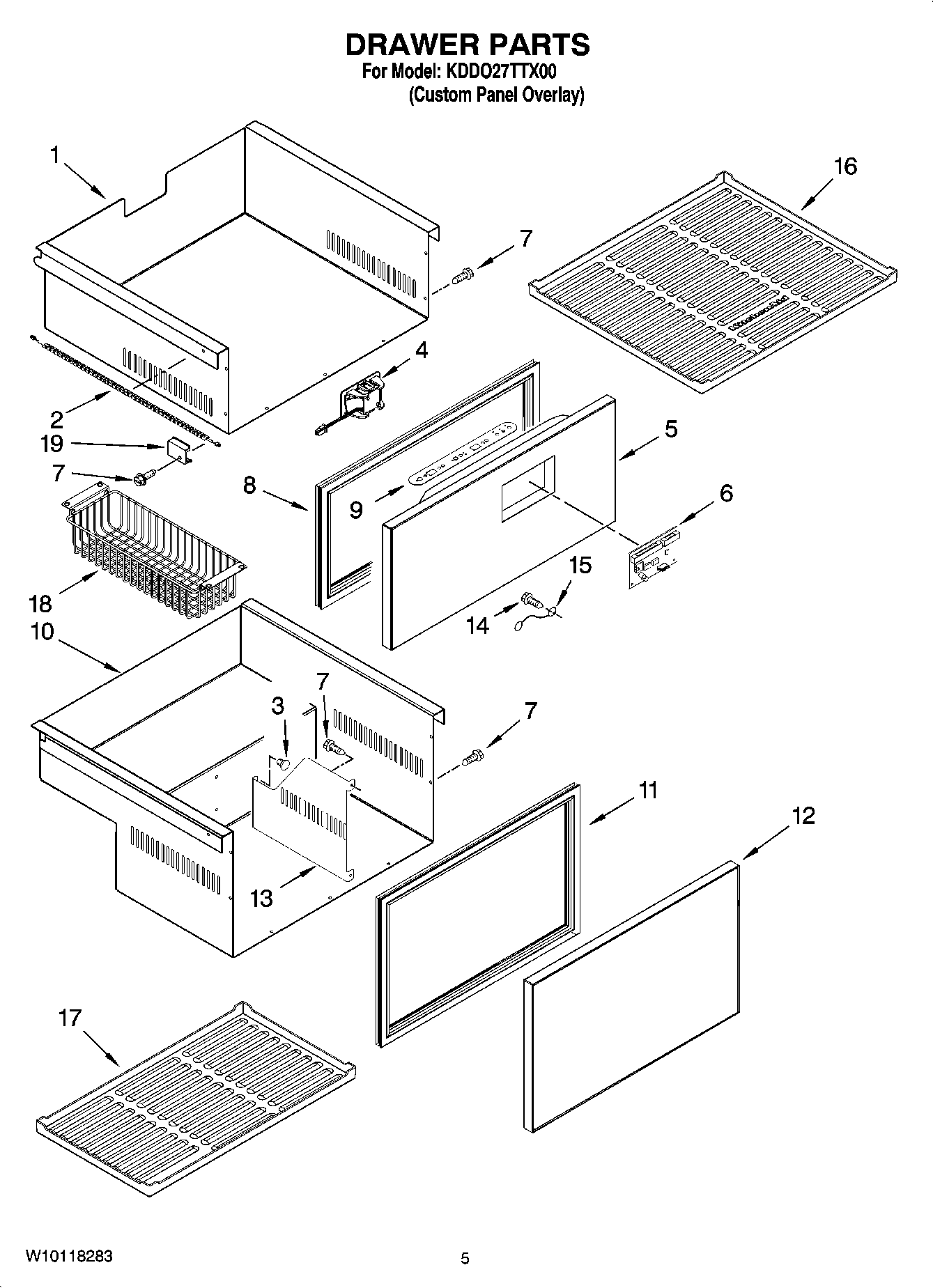

KDDO27TTX00 03 – DRAWER PARTS

Products

PositionProduct
1Drawer, Upper
2Harness, Wiring (Drawer)
3Rivet, Plastic
4Light Assembly (2)
5Drawer Front (Upper)
6Control, Electronic
78534081 Whirlpool Screw Assembly
8Gasket, Upper Drawer
9OVERLAY
10Drawer, Lower
11Gasket, Lower Drawer
12Drawer Front (Lower)
13DIVIDER
14WP489478 Whirlpool Refrigerator Screw
15Wire, Ground
16Mat, Upper Drawer
17Mat, Lower Drawer
18Basket (2)
19Cover, Connector
