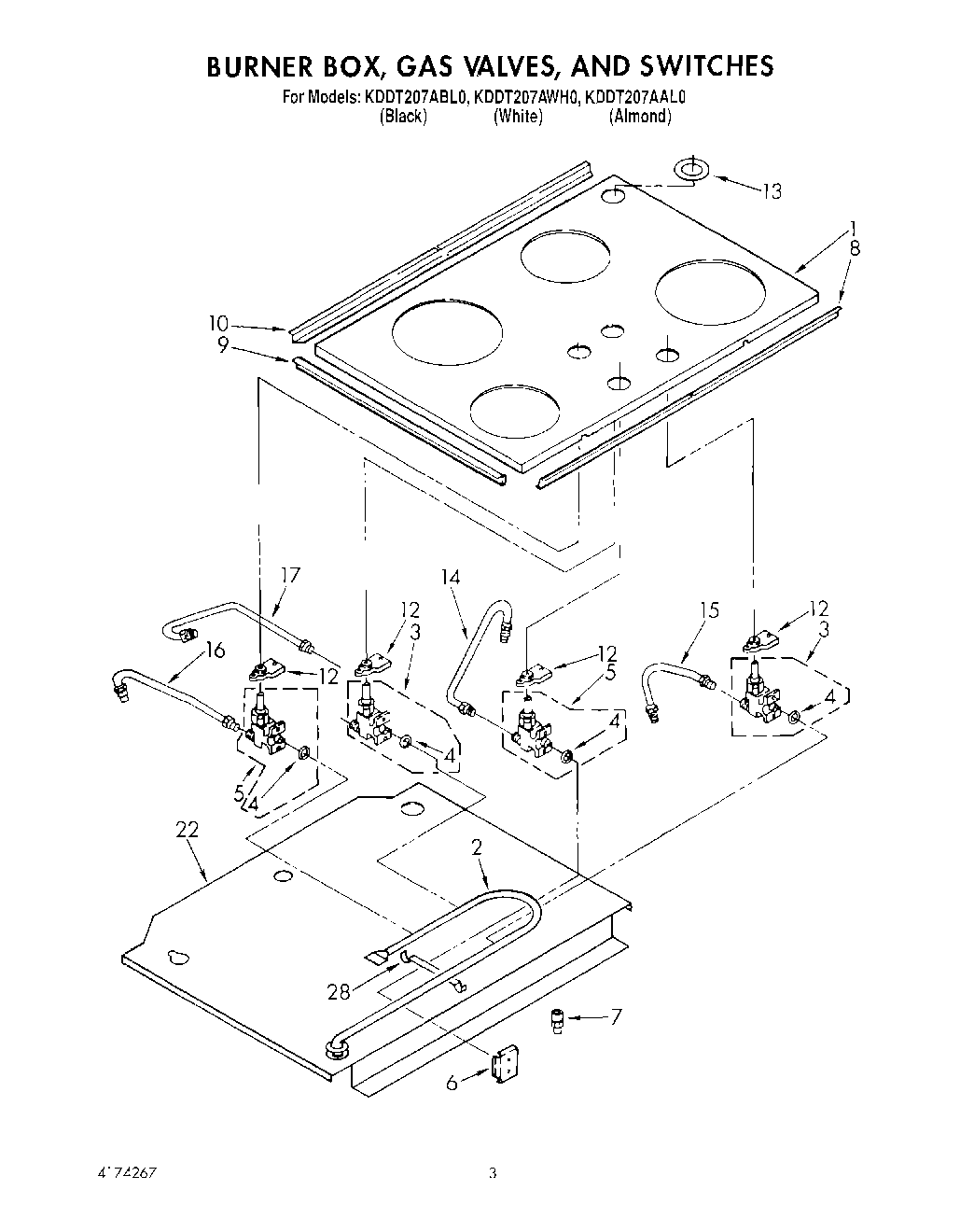

KDDT207AAL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4	Washer, Gas Valve Sealing Washer (4)
5	Valve, Gas Burner (RF & LR) (Includes Illus. 4)
5	WP3188425 Whirlpool Seal Switch
6	Bracket, Clamp (4) (Gas Valve)
6	Screw (8)
7	Fitting, Manifold Pipe
8	Frame, Front
9	Frame, Side (2)
10	Frame, Rear
12	WP3185427 Whirlpool Igniter Switch
13	Seal, Tube
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
22	Cover, Burner Box
22	Protector, Edge Miscellaneous
28	Screw
28	Clamp, Manifold
28	screw (3)
28	LP Gas Conversion
