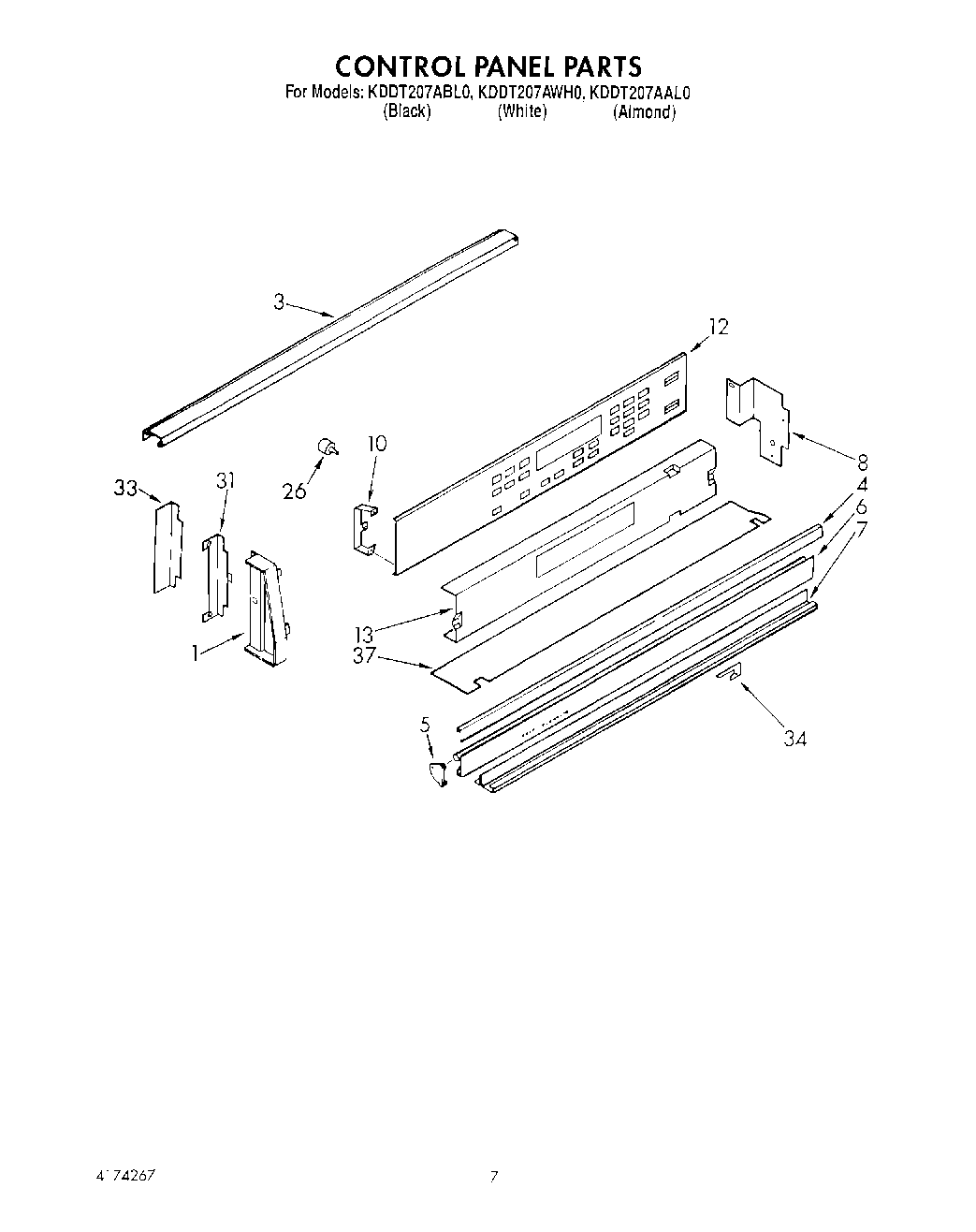

KDDT207AAL0 06 – CONTROL PANEL, OPTIONAL

Products

Position	Product
1	End Cap (White, LH)
1	End Cap (Black, RH)
1	End Cap (White, RH)
1	End Cap, L.H. (Almond)
1	End Cap (Almond, RH)
1	End Cap (Washer)
1	End Cap (Black, LH)
3	Rail, Top (Black)
3	Rail, Top (Bright Aluminum)
4	Trim, Center (Black)
4	Trim, Center (Bright Aluminum)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Door, Vent
6	Door, Vent (Semi-Bright Aluminum)
7	Trim, Bottom
7	panel, top (screw, 10a x 3/8 (3))
8	Bracket, Control Panel (Right Side)
8	Bracket, Control Panel (Left Side)
10	Bracket, Control Panel
12	Microcomputer
13	Panel, Control (Almond)
13	Panel, Control (White)
13	Panel, Control (Black)
13	Screw (2)
13	WP308605 Whirlpool Refrigerator Clamp
26	Bumper, Rubber (4)
31	Bracket, Support
33	Trim, End Cap (Almond)
33	Trim, End Cap (White)
33	Trim, End Cap (Black)
34	Shield, Air
34	Screw,
37	Shield, Control
37	LP Gas Conversion
