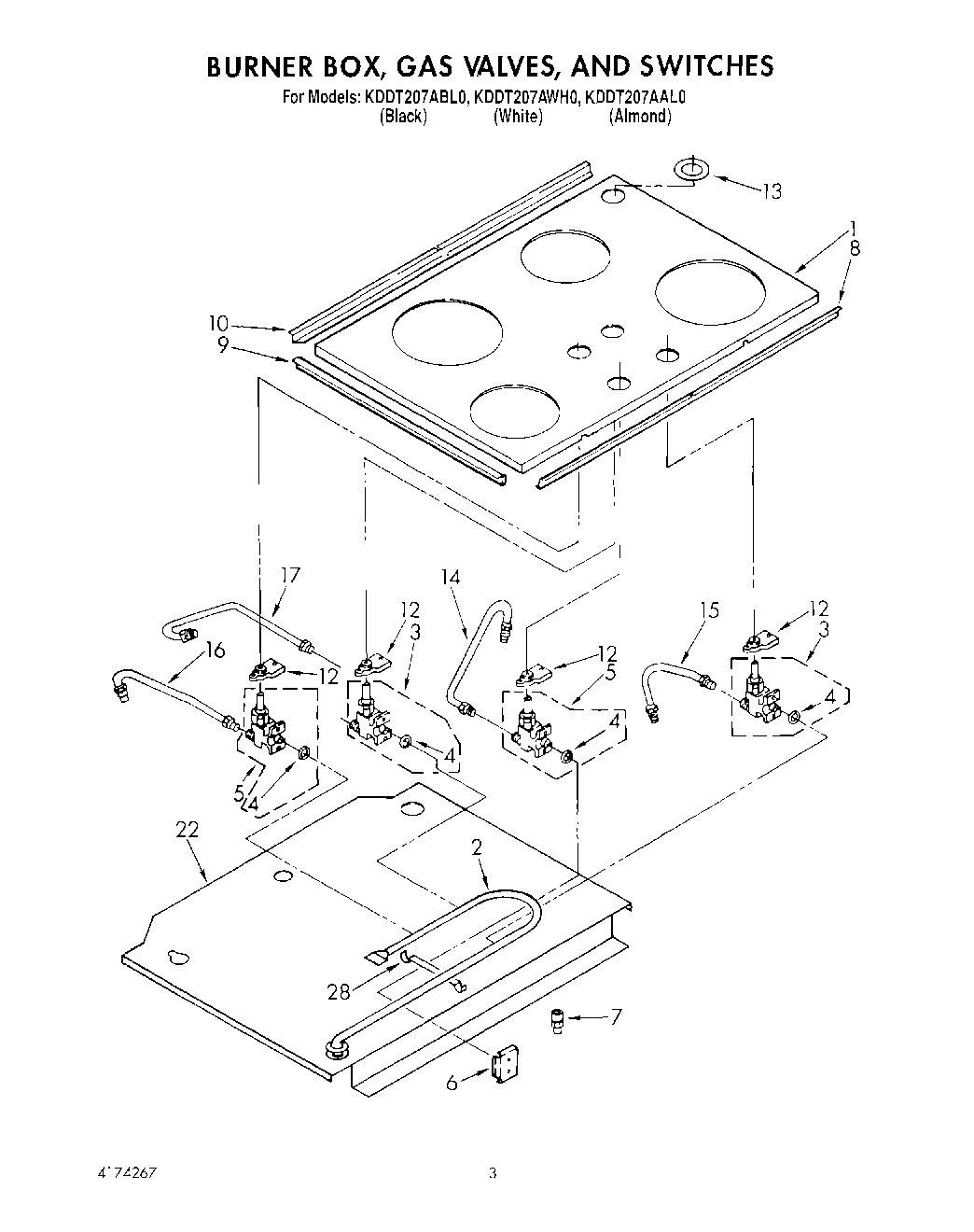

KDDT207ABL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Cover, Top Assy.
2Pipe, Manifold
3Valve, Gas Burner (LF & RR) (Includes Illus. 4)
4Washer, Gas Valve Sealing Washer (4)
5Valve, Gas Burner (RF & LR) (Includes Illus. 4)
5WP3188425 Whirlpool Seal Switch
6Bracket, Clamp (4) (Gas Valve)
6Screw (8)
7Fitting, Manifold Pipe
8Frame, Front
9Frame, Side (2)
10Frame, Rear
12WP3185427 Whirlpool Igniter Switch
13Seal, Tube
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
22Cover, Burner Box
22Protector, Edge Miscellaneous
28Screw
28Clamp, Manifold
28screw (3)
28LP Gas Conversion
