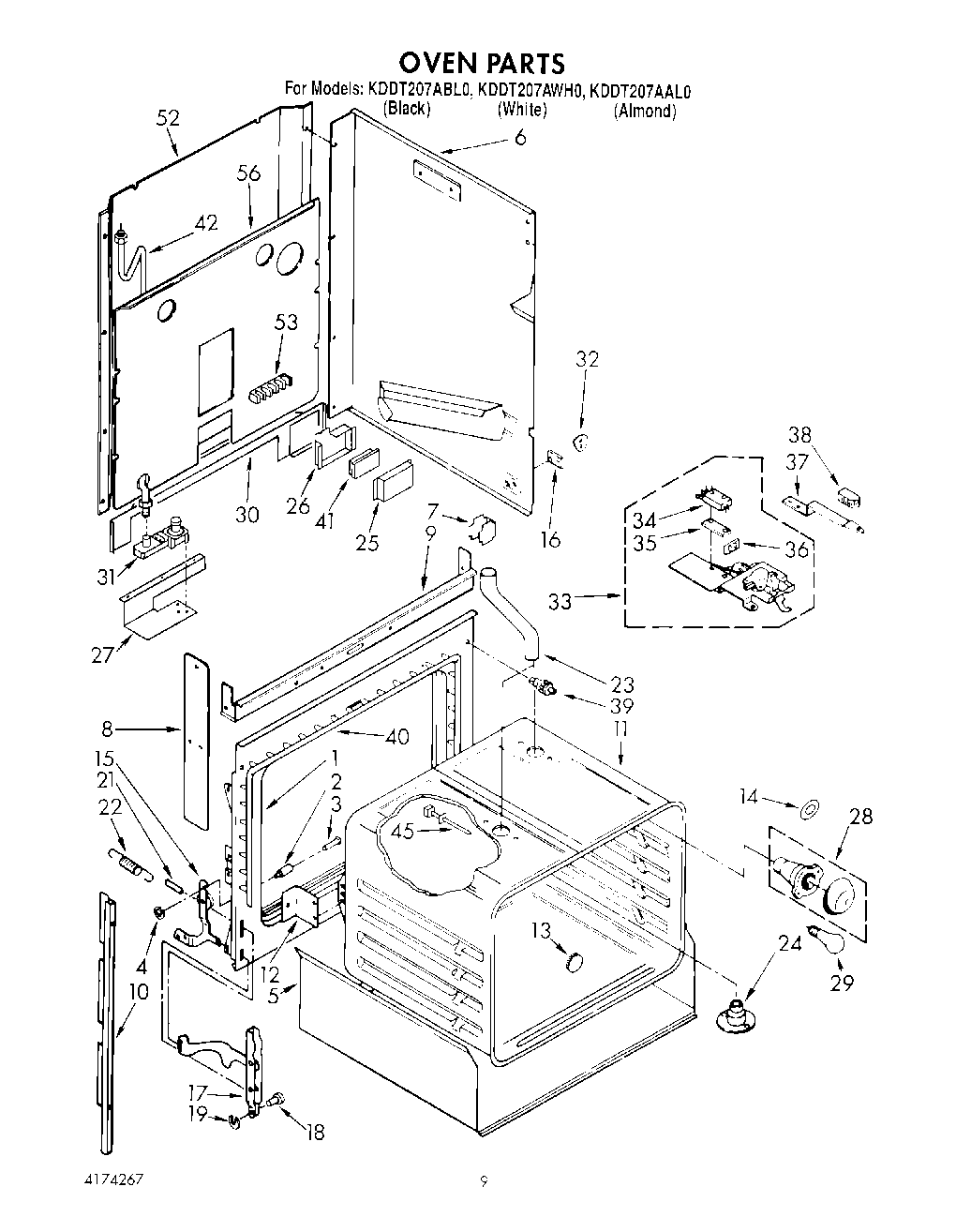

KDDT207ABL0 07 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3183262
	Cookbook T/C Oven
	Guide, Auto Set
	WPL LIT4174267
	WPL LIT3185977
	WPL LIT3187214
	WPL LIT3187001
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper L.H.
6	Side Wrapper R.H.
7	Support, Side Wrapper (4)
8	Screw (2)
8	Baffle, Insulation
9	Baffle, Top Insulation
10	Side Trim (Right Side)
10	Side Trim (Left Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	WPL 3185086
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Eliminator, Smoke
25	Bracket, Spark Module
26	Cover, Spark Module
27	Bracket, Regulator
27	Screw,
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Panel, Kick
31	WP3177991 Whirlpool Screw
32	Screw (3)
32	WPL 310662
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Knob, Latch Handle
38	Screw
39	Switch, Door
40	WPL 3185197
41	Screw
41	WP4454392 Whirlpool Spark Module
42	WPL 3184853
45	Sensor, Heat
52	Panel, Back
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
56	WPL 3149328
56	Cover, Rear
56	WP488729 Whirlpool Refrigerator Door Screw
56	WPL 310433
56	Insulation
56	WPL 310435
56	WPL 3187218
