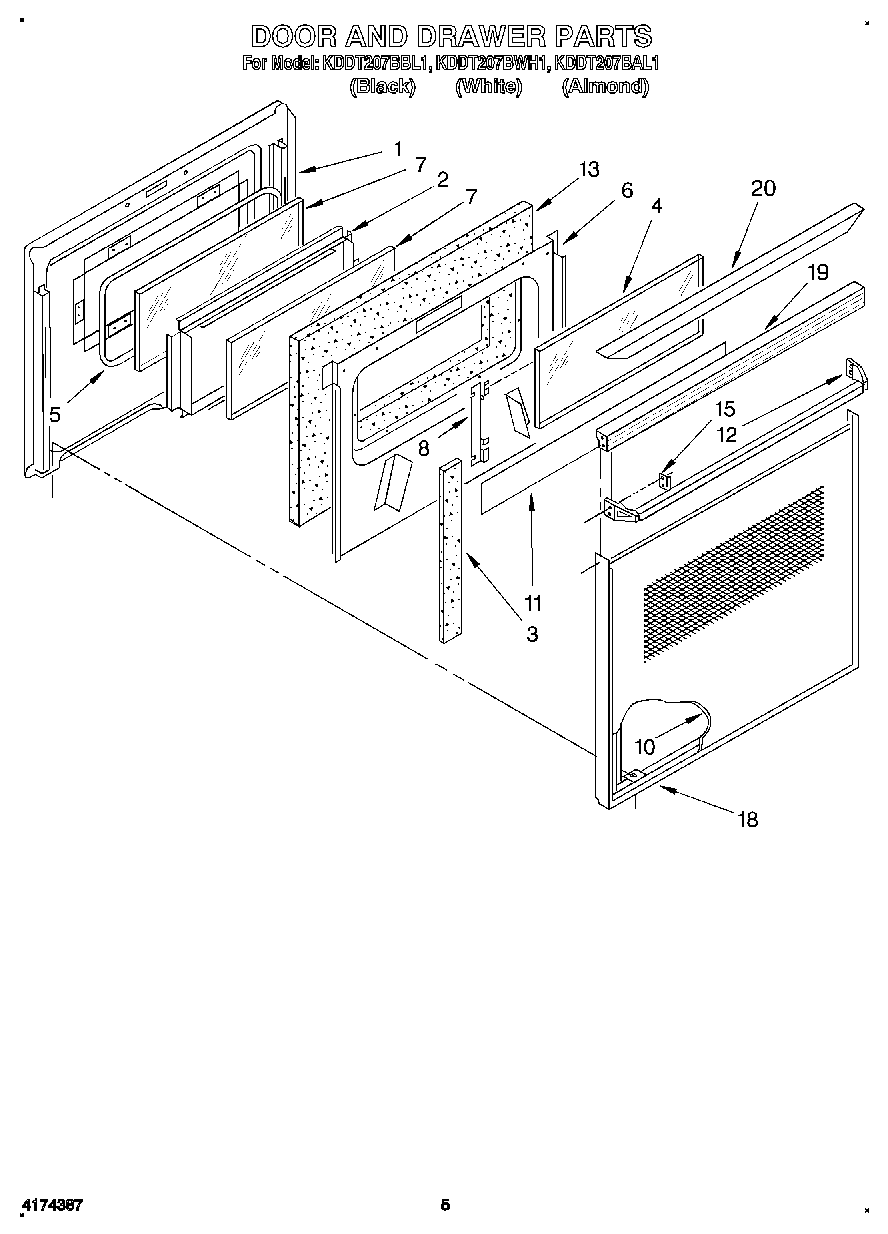

KDDT207BAL1 04 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (Almond)
12	Handle, Door (Black)
12	Handle, Door (White)
13	Insulation, Door
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
15	Screw
18	Frame, Door
19	Top, Door (Black Model)
19	Top, Door (White Model)
20	Cap, Top
20	WP308685 Whirlpool Microwave Screw
