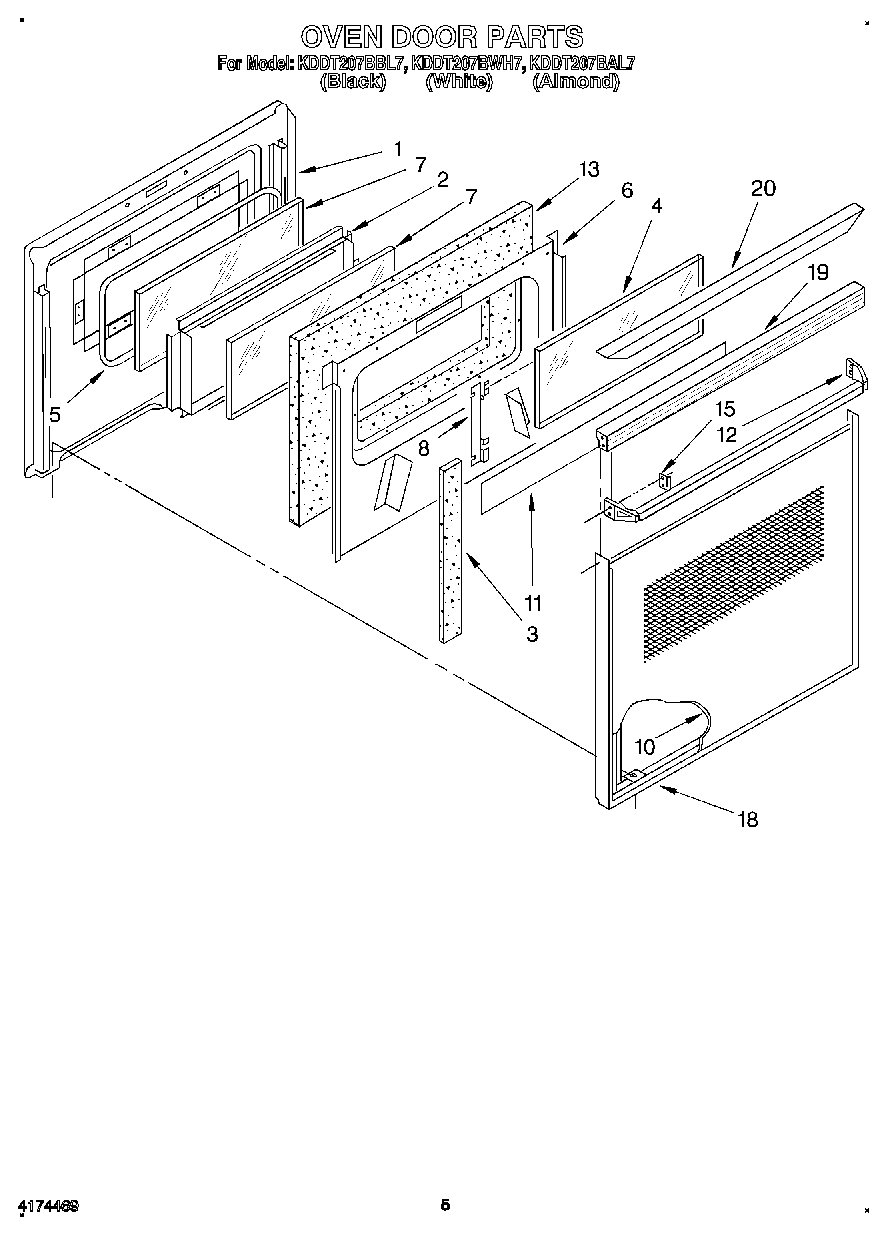

KDDT207BAL7 04 – OVEN DOORadmin2025-04-26T12:39:01+00:00KDDT207BAL7 04 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | Frame, Inner |
| 3 | Screw |
| 3 | Seal, Flange (2) |
| 4 | Screw |
| 4 | Glass, Clear |
| 5 | Seal, Door |
| 6 | Retainer, |
| 6 | Screw |
| 7 | WP3169203 Whirlpool Door Glass |
| 8 | Retainer, Glass (2) |
| 10 | Glass, Panel (Almond Model) |
| 10 | Glass, Panel (White Model) |
| 10 | Glass, Panel (Black Model) |
| 11 | Foil, Door |
| 12 | WP355515 Whirlpool Screw |
| 12 | Handle, Door (Black) |
| 12 | Handle, Door (Almond) |
| 12 | Handle, Door (White) |
| 13 | Insulation, Door |
| 15 | Clip, Mtg (2) |
| 15 | Screw |
| 18 | Frame, Door |
| 19 | Top, Door (Black Model) |
| 19 | Top, Door (White Model) |
| 20 | Cap, Top |
| 20 | Back Splash (Screw (4) 10AB x 1/2``) |
