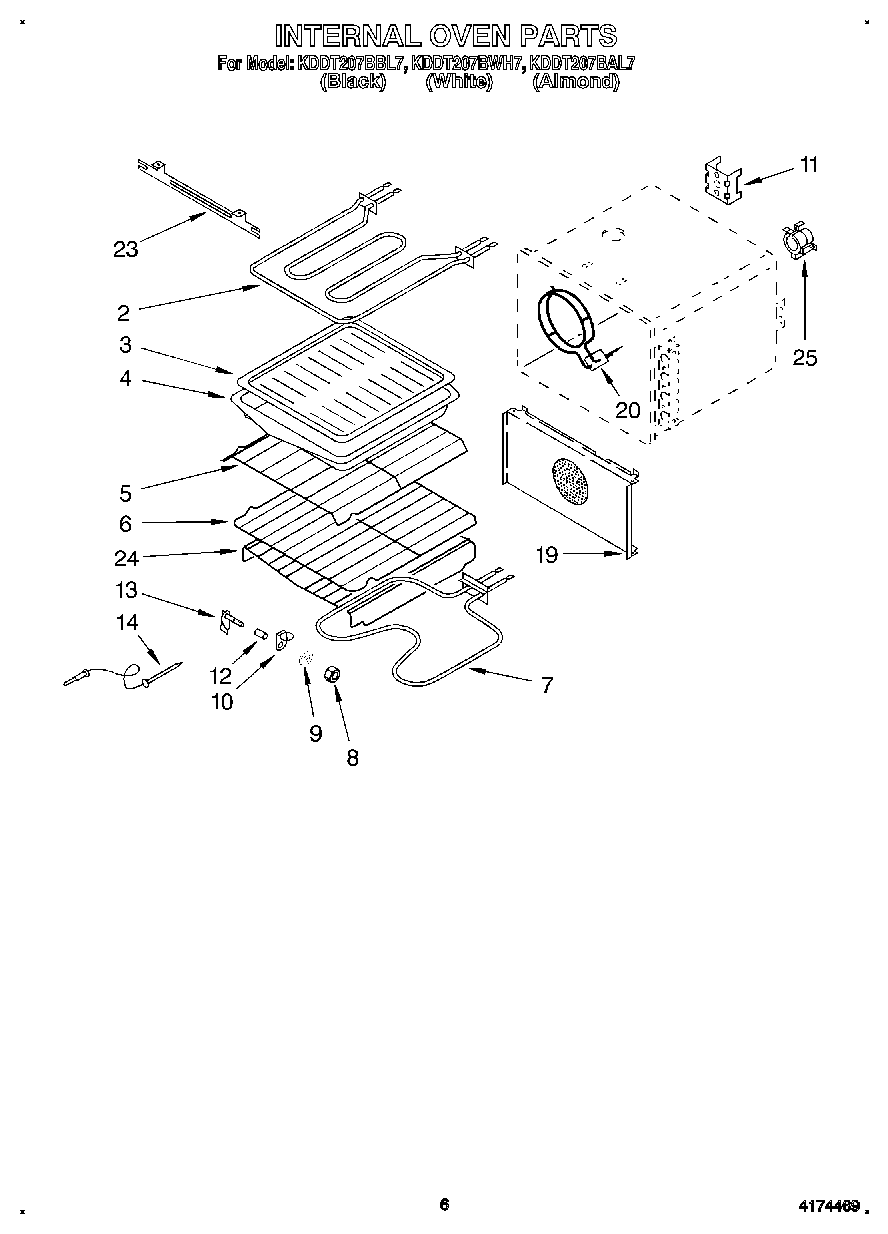

KDDT207BAL7 05 – INTERNAL OVEN

Products

Position	Product
2	Unit, Broil
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Straight
7	Screw (2)
7	WP661416 Whirlpool Bake Element
8	Lock-Nut, Cvr.Jack
9	Gasket, Meat Probe
10	Jack Cover
11	Bracket, Support Motor
12	Spacer - Tubing
13	Receptacle, Probe
14	Probe
19	Cover, Fan
20	Element, Convection
23	Screw (3)
23	Bracket, Element
24	Rack, Roasting
25	Thermostat
25	WP488729 Whirlpool Refrigerator Door Screw
