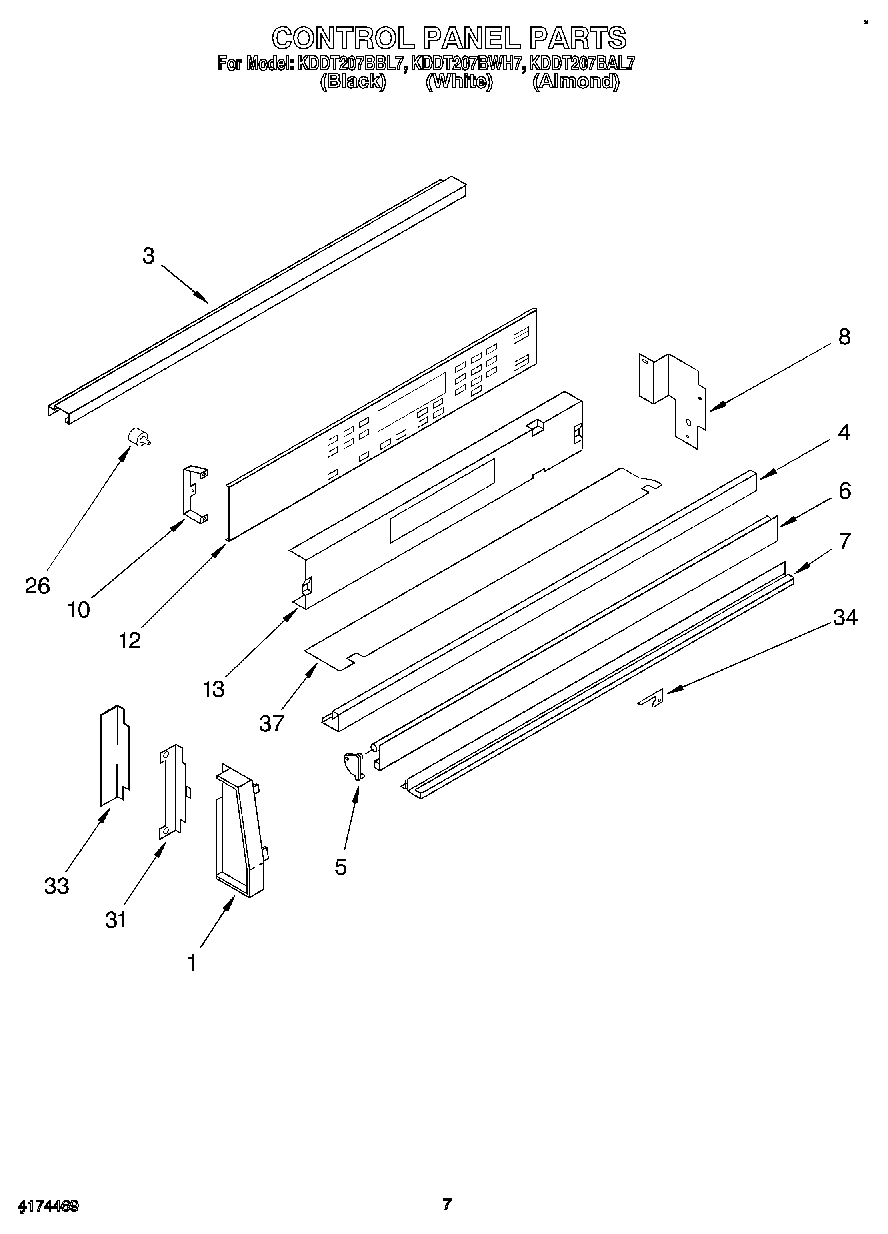

KDDT207BAL7 06 – CONTROL PANEL

Products

Position	Product
1	End Cap (Almond, RH)
1	End Cap, L.H. (Almond)
1	End Cap (White, RH)
1	End Cap (Washer)
1	End Cap (White, LH)
1	End Cap (Black, RH)
1	End Cap (Black, LH)
3	Rail, Top (Bright Aluminum)
3	panel, top (screw, 10a x 3/8 (3))
3	Rail, Top (Black)
4	Trim, Center (Bright Aluminum)
4	Trim, Center (Black)
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
6	Door, Vent
6	Door, Vent (Semi-Bright Aluminum)
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Bracket, Control Panel (Right Side)
8	Bracket, Control Panel (Left Side)
10	Bracket, Control Panel
12	Microcomputer
13	Control Panel (Almond)
13	Control Panel (White)
13	Control Panel (Black)
13	WP308605 Whirlpool Refrigerator Clamp
13	Screw (2)
26	Bumper, Rubber (4)
31	Bracket, Support
33	Trim, End Cap (White)
33	Trim, End Cap (Almond)
33	Trim, End Cap (Black)
34	Screw,
34	Shield, Air
37	Shield, Control
