KDDT207BAL7 07 – OVEN, LITERATURE

Products

Position	Product
	Guide, Auto Set
	WPL LIT3187214
	Cookbook T/C Oven
	WPL LIT3187001
	WPL LIT3186508
	WPL LIT3188265

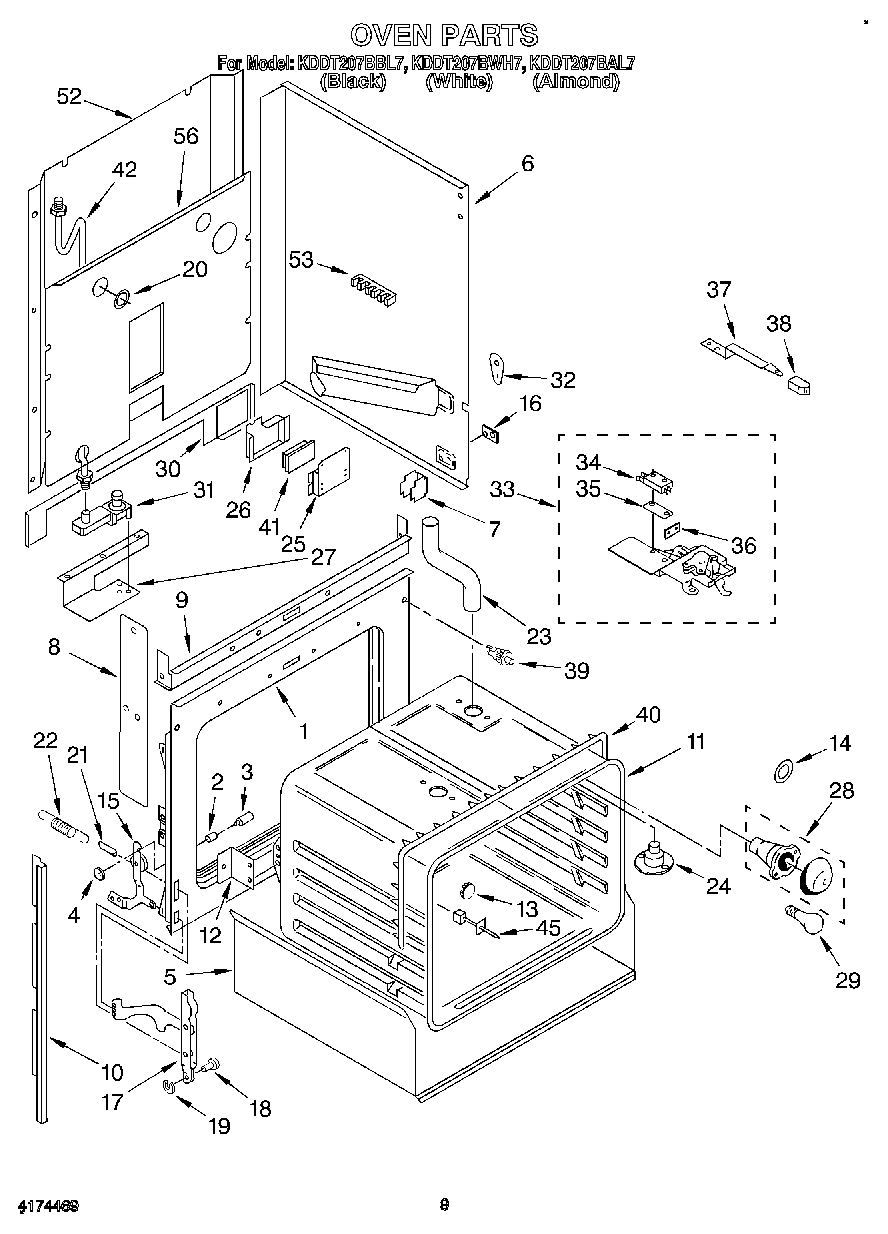

1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper R.H.
6	Side Wrapper L.H.
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	WPL 3185086
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Bushing
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent Extension
24	Tube, Vent
25	Bracket, Spark Module
26	Cover, Spark Module
27	Screw,
27	Bracket, Regulator
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Panel, Kick
31	WP3177991 Whirlpool Screw
31	Pressure Regulator
32	Screw (3)
32	WPL 310662
33	Latch Assembly
33	Screw (3)
34	Screw
34	Safety Switch
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Screw
38	Knob, Latch Handle
39	Switch, Door
40	WPL 3185197
41	Screw
41	WP4454392 Whirlpool Spark Module
42	WPL 3184853
45	Sensor, Heat
52	Panel, Back
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
56	WP488729 Whirlpool Refrigerator Door Screw
56	WPL 310433
56	WPL 3149328
56	WPL 310435
56	Cover, Rear
56	WPL 3187218
