KDDT207BAL8 07 – OVEN, LITERATURE

Products

Position	Product
	Guide, Auto Set
	WPL LIT3187001
	WPL LIT3186508
	Cookbook T/C Oven
	WPL LIT3188265
	WPL LIT3187214

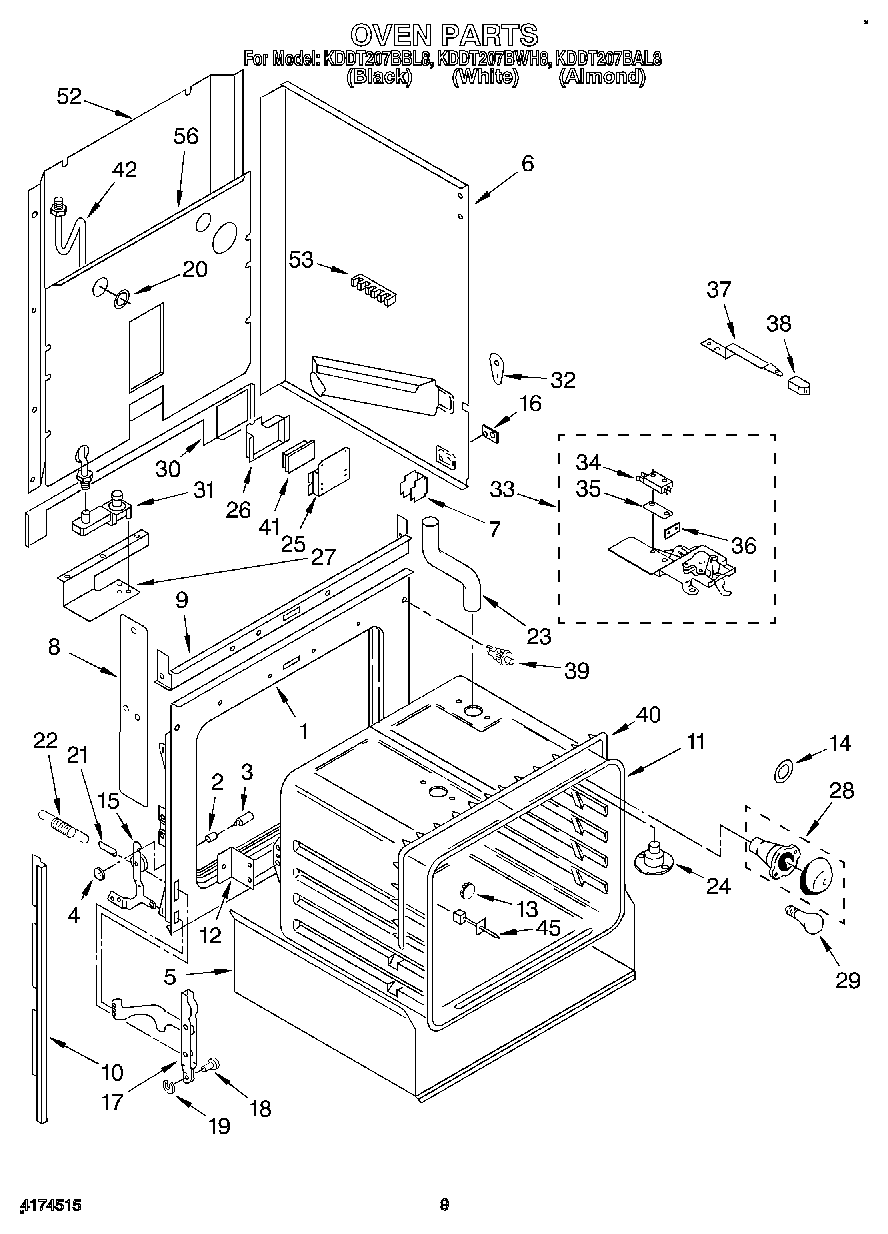

1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper R.H.
6	Side Wrapper L.H.
7	Support, Side Wrapper (4)
8	Baffle, Insulation
8	Screw (2)
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
10	WP313808 Whirlpool Screw
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
13	WPL 3185086
14	WP3184533 Whirlpool Range Light Lens Gasket
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Bushing
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent Extension
23	SCREW
24	Tube, Vent
25	Bracket, Spark Module
26	Cover, Spark Module
27	Bracket, Regulator
27	Screw,
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	Panel, Kick
31	Pressure Regulator
31	WP3177991 Whirlpool Screw
32	Screw (3)
32	WPL 310662
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Latch, Handle
37	Screw
38	Screw
38	Knob, Latch Handle
39	Switch, Door
40	WPL 3185197
41	WP4454392 Whirlpool Spark Module
41	Screw
41	Back Splash (Screw (4) 10AB x 1/2“)
42	WPL 3184853
45	Sensor, Heat
52	Panel, Back
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
56	WPL 3187218
56	WPL 310433
56	WPL 310435
56	WPL 3149328
56	Cover, Rear
56	WP488729 Whirlpool Refrigerator Door Screw
