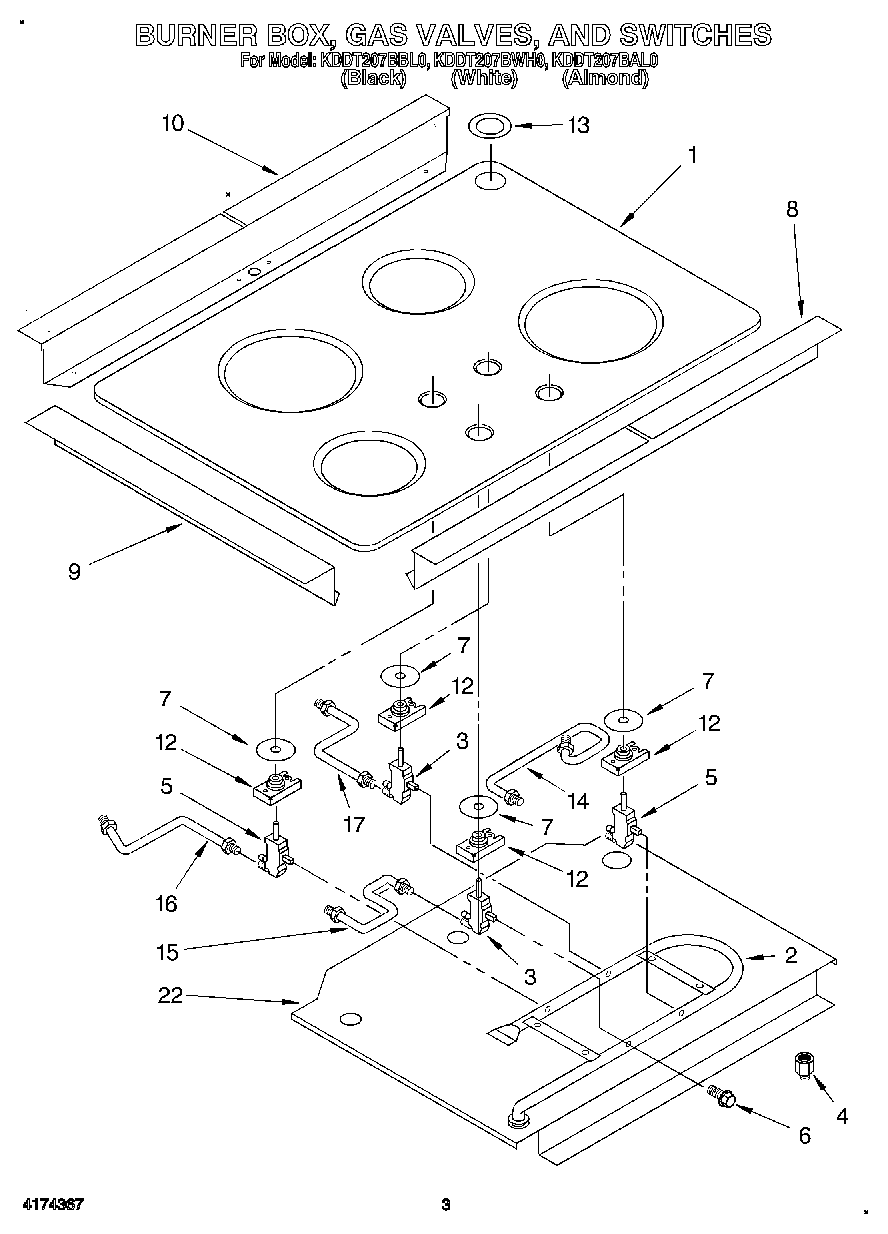

KDDT207BBL0 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
1	Cover, Top Assy.
2	Pipe, Manifold
3	Valve, Gas Burner (LF, RR, & CR)
4	Fitting, Manifold Pipe
5	Valve, Gas Burner (RF & LR)
6	Bolt (Gas Valve)
7	WP3188425 Whirlpool Seal Switch
8	Frame, Front
9	Washer, Flat
9	Screw
9	WP488729 Whirlpool Refrigerator Door Screw
9	Frame, Side (2)
10	Frame, Rear
12	WP3185830 Whirlpool Oven Igniter Switch
13	Seal, Vent Tube
14	Tubing, Large Gas Burner (RF)
15	Tubing, Small Gas Burner (LF)
16	Tubing, Large Gas Burner (LR)
17	Tubing, Small Gas Burner (RR)
22	Protector, Edge Miscellaneous
22	Cover, Burner Box
22	L.P. Gas Conversion Kit
