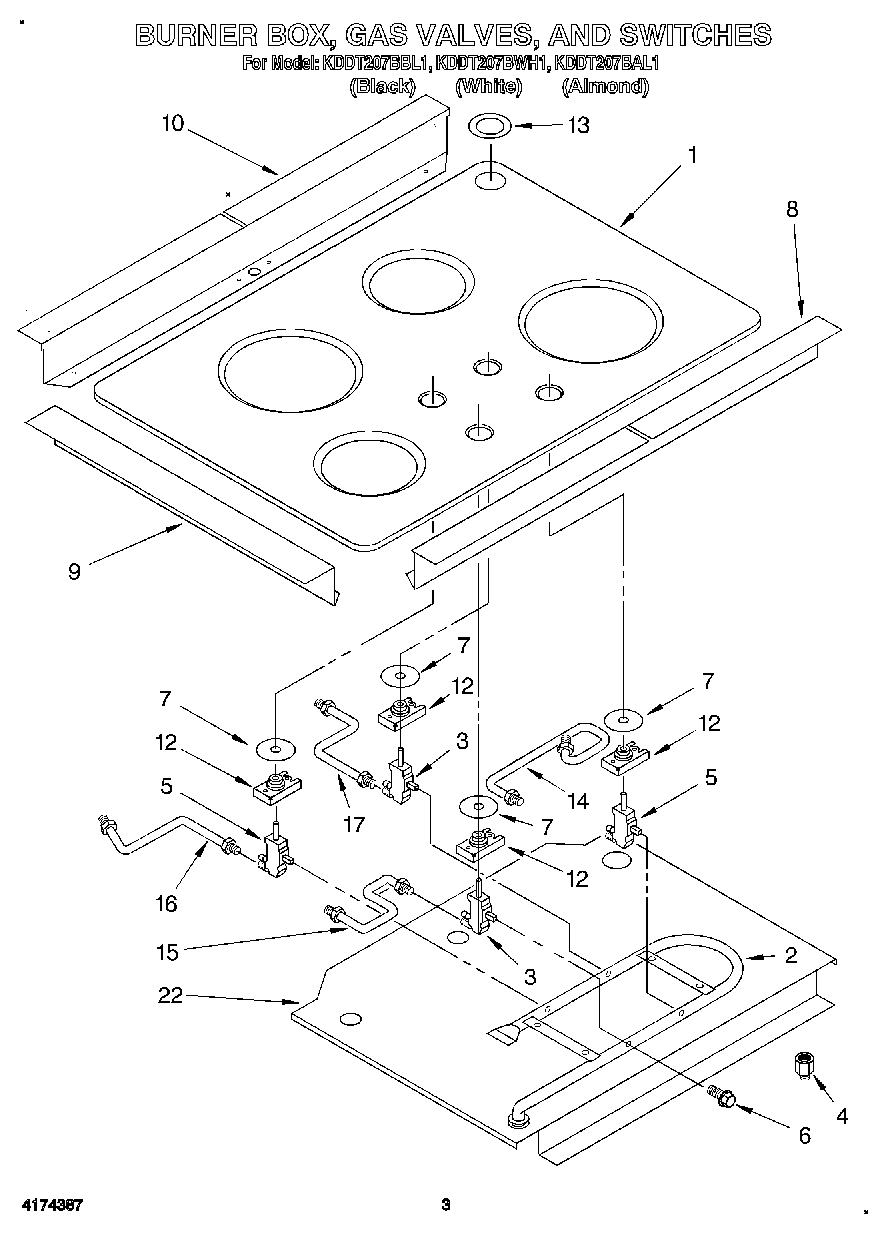

KDDT207BBL1 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Cover, Top Assy.
2Pipe, Manifold
3Valve, Gas Burner (LF, RR, & CR)
4Fitting, Manifold Pipe
5Valve, Gas Burner (RF & LR)
6Bolt (Gas Valve)
7WP3188425 Whirlpool Seal Switch
8Frame, Front
9Washer, Flat
9Screw
9WP488729 Whirlpool Refrigerator Door Screw
9Frame, Side (2)
10Frame, Rear
12WP3185830 Whirlpool Oven Igniter Switch
13Seal, Vent Tube
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
22L.P. Gas Conversion Kit
22Cover, Burner Box
22Protector, Edge Miscellaneous
