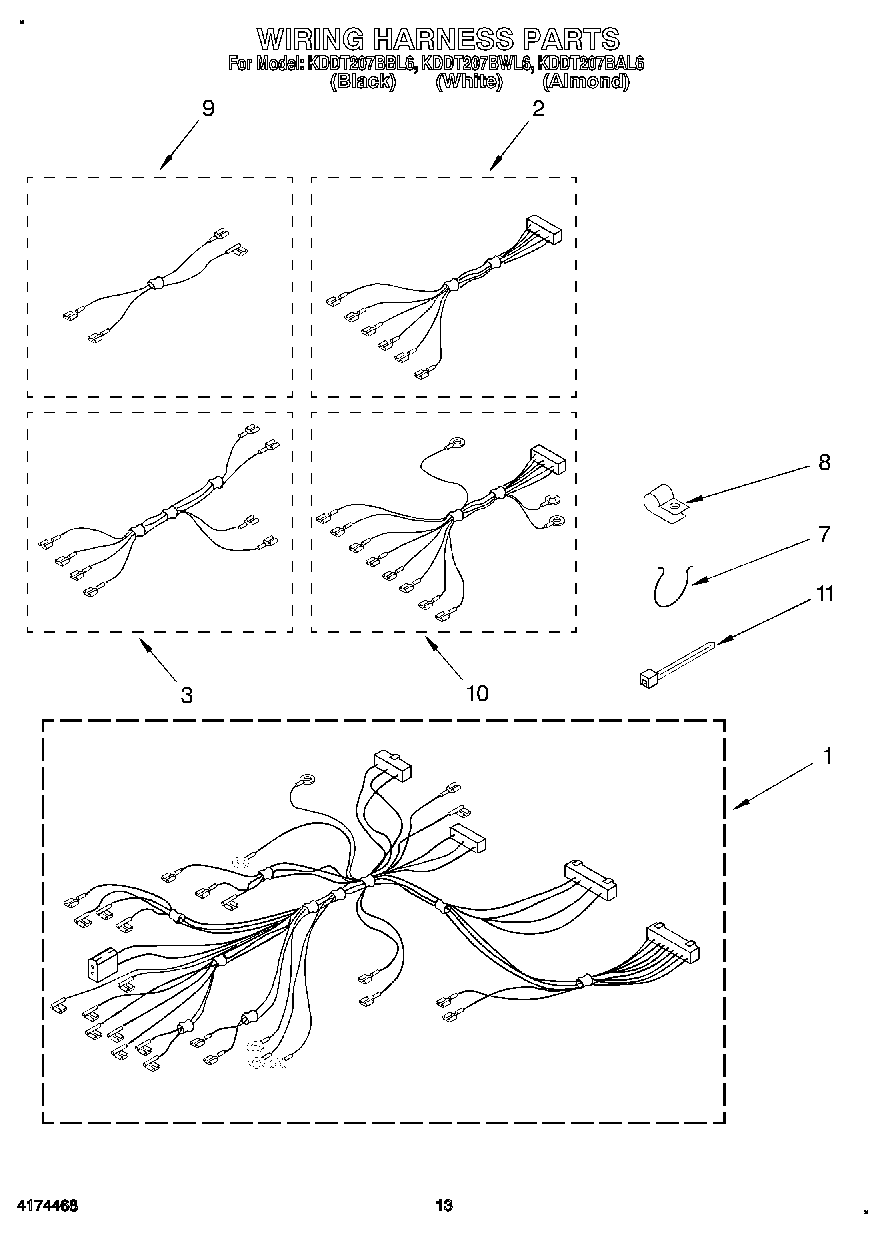

KDDT207BBL6 10 – WIRING HARNESS

Written by

Products

Position	Product
1	Harness, Wire (Main)
2	Harness, Wire (Cooktop Switch)
3	Harness, Wire (Ingnitor)
7	Screw
7	16515 Whirlpool Clip
7	Screw, 10A x 1/2 (2) (Black)
8	WP308605 Whirlpool Refrigerator Clamp
9	Harness, Wire (Gas Valve)
10	Harness, Wire (Spark Module)
11	Cable Tie
