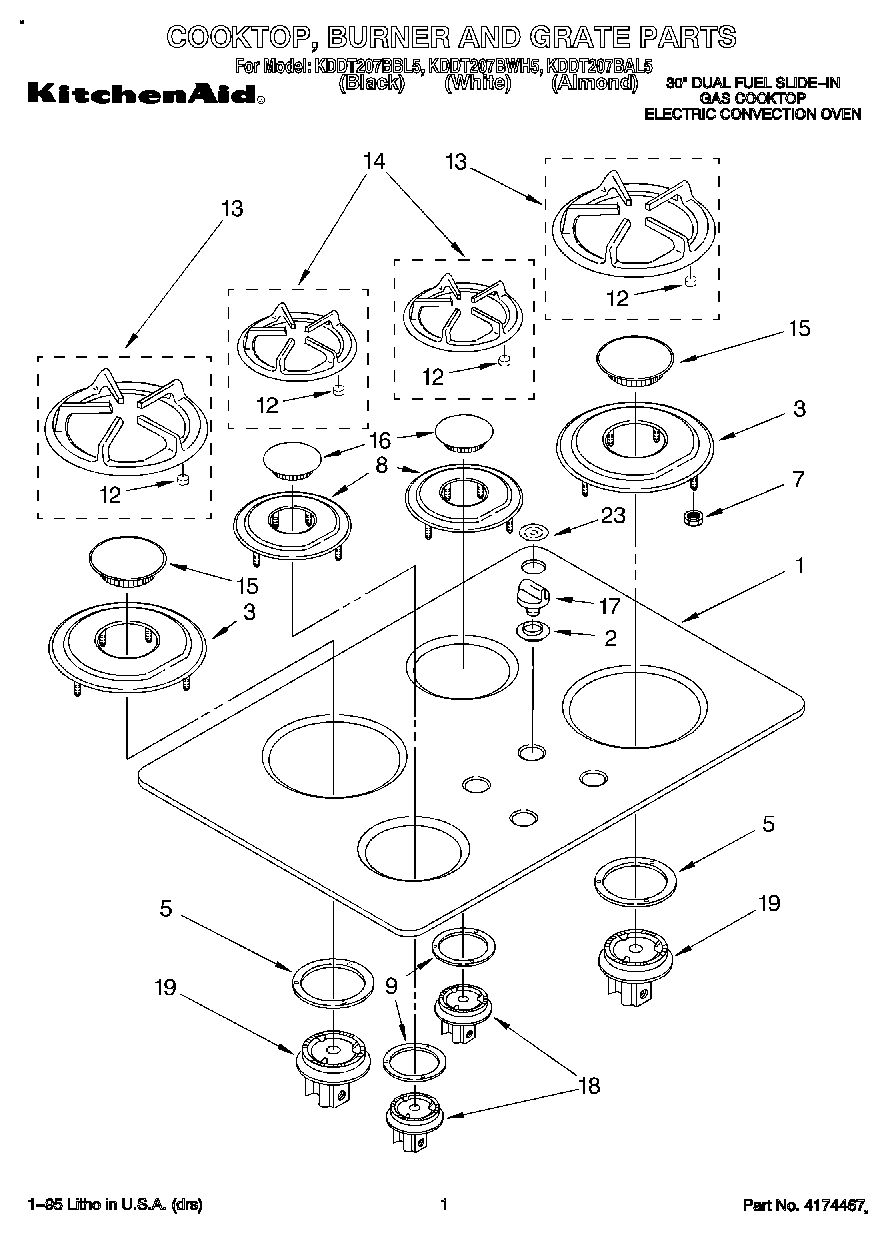

KDDT207BWH5 01 – COOKTOP, BURNER AND GRATE

Products

Position	Product
1	Cooktop, Glass (White)
1	Cooktop, Glass (Almond)
1	Cooktop, Glass (Black)
2	W10854241 Whirlpool Grommet
2	W10854242 Whirlpool Grommet
2	WP3180081 Whirlpool Grommet
3	Bezel, Cooktop (Large) (Black)
3	Bezel, Cooktop (Large) (Almond (Includes Illus. 5 and 7)
3	Bezel, Cooktop (Large) (White)
5	Gasket, Burner (Large)
7	Nut (4)
8	Bezel, Cooktop (Small) (Almond (Includes Illus. 7 and 9)
8	Bezel, Cooktop (Small) (White)
8	Bezel, Cooktop (Small) (Black)
9	Gasket, Burner (Small)
12	Pad, Grate (Incls. 5 pads)
13	Grate, Large (RF & LR) (Black)
13	Grate, Large (RF & LR) (White)
13	Grate, Large (RF & LR) (Almond (Includes No.12))
14	Grate (Small) (LF & RR) (Almond (Includes No.12))
14	Grate (Small) (LF & RR) (Black)
14	Grate (Small) (LF & RR) (White)
15	Cap, Rapid Burner Large (2) (Almond)
15	Cap, Rapid Burner Large (2) (Black)
15	Cap, Rapid Burner Large (2) (White)
16	Cap, Semi Rapid Small (2) (Almond Burner (2))
16	Cap, Semi Rapid Small (2) (White)
16	Cap, Semi Rapid Small (2) (Black)
17	WP3182569 Whirlpool Knob
17	WP3182568 Whirlpool Control Knob
17	WP3182567 Whirlpool Oven Knob
18	WPL 3185821
19	WPL 3185822
23	Cover, Vent (Almond)
23	Cover, Vent (White)
23	Cover, Vent (Black)
