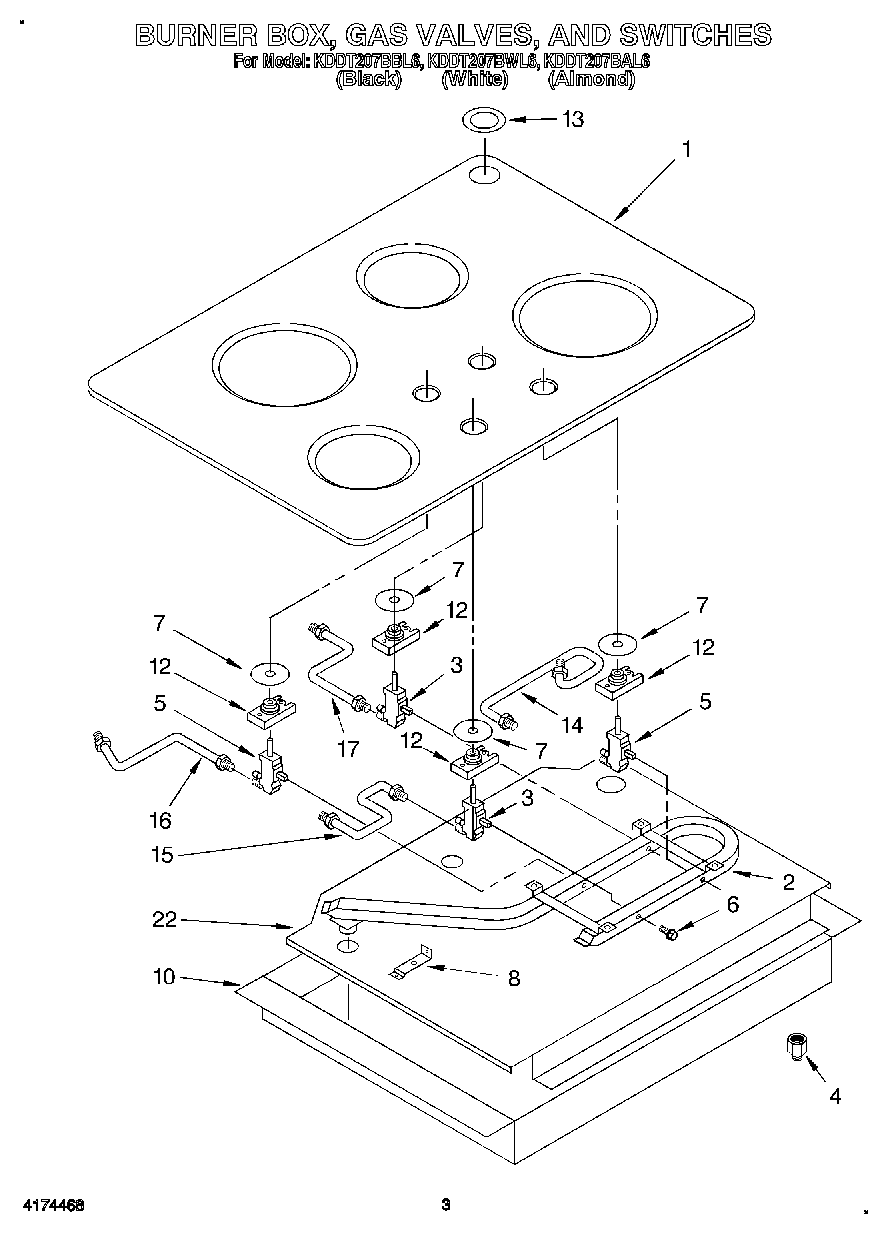

KDDT207BWH6 03 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1Backer, Plate
2Pipe, Manifold
3Valve, Gas Burner (LF & RR)
4Fitting, Manifold Pipe
5Valve, Gas Burner (RF & LR)
6Bolt (Gas Valve)
7WP3188425 Whirlpool Seal Switch
8Bracket, Manifold
8Washer, Flat
10Box Burner
12WP3185830 Whirlpool Oven Igniter Switch
13Seal, Vent Tube
14Tubing, Large Gas Burner (RF)
15Tubing, Small Gas Burner (LF)
16Tubing, Large Gas Burner (LR)
17Tubing, Small Gas Burner (RR)
22L.P. Gas Conversion Kit
22Protector, Edge Miscellaneous
22Cable Tie
22WPW10339879 Whirlpool Wire Tie
22Bracket Cooktop
