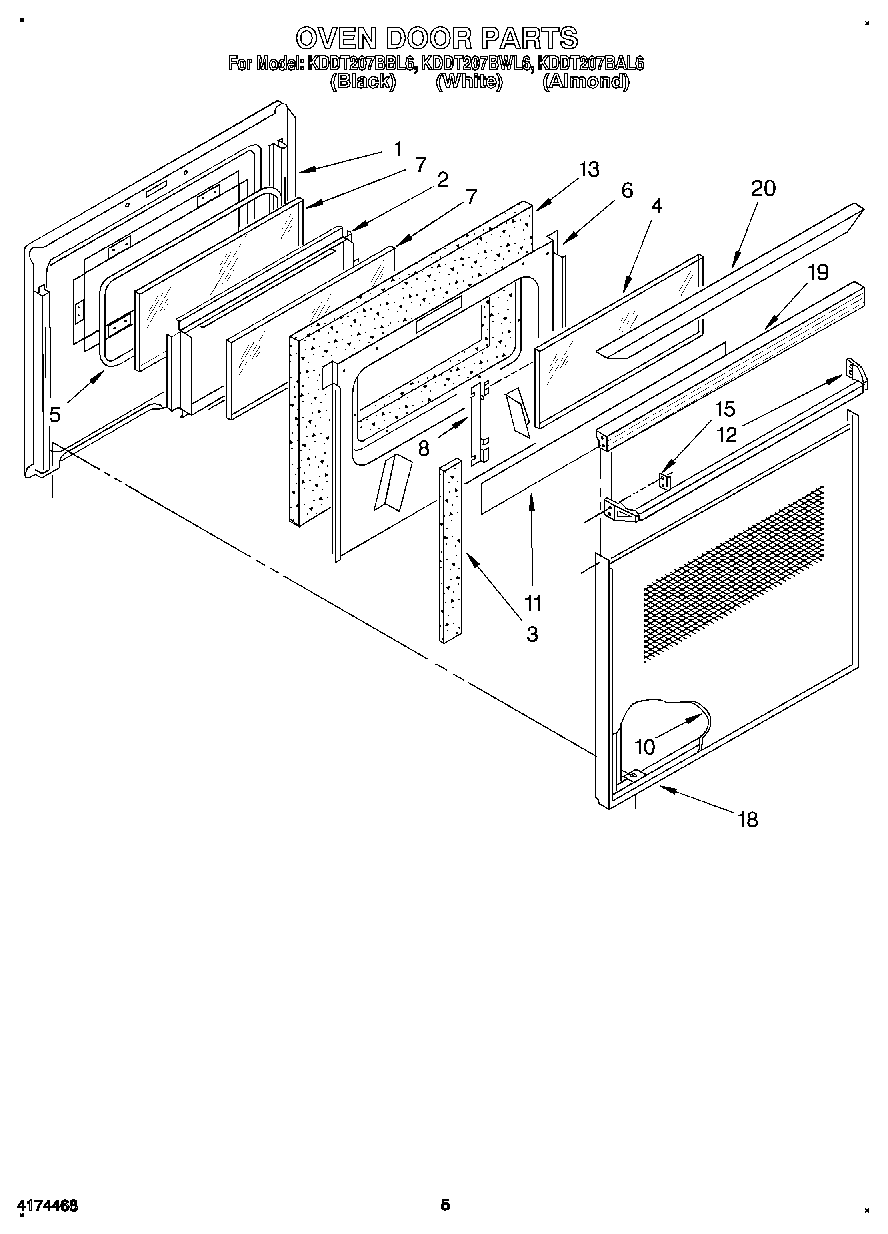

KDDT207BWH6 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Black Model)
10	Glass, Panel (Almond Model)
10	Glass, Panel (White Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (White)
12	Handle, Door (Black)
12	Handle, Door (Almond)
13	Insulation, Door
15	Clip, Mtg (2)
15	Screw
15	Back Splash (Screw (4) 10AB x 1/2“)
18	Frame, Door
19	Top, Door (White Model)
19	Top, Door (Black Model)
20	Cap, Top
20	WP308685 Whirlpool Microwave Screw
