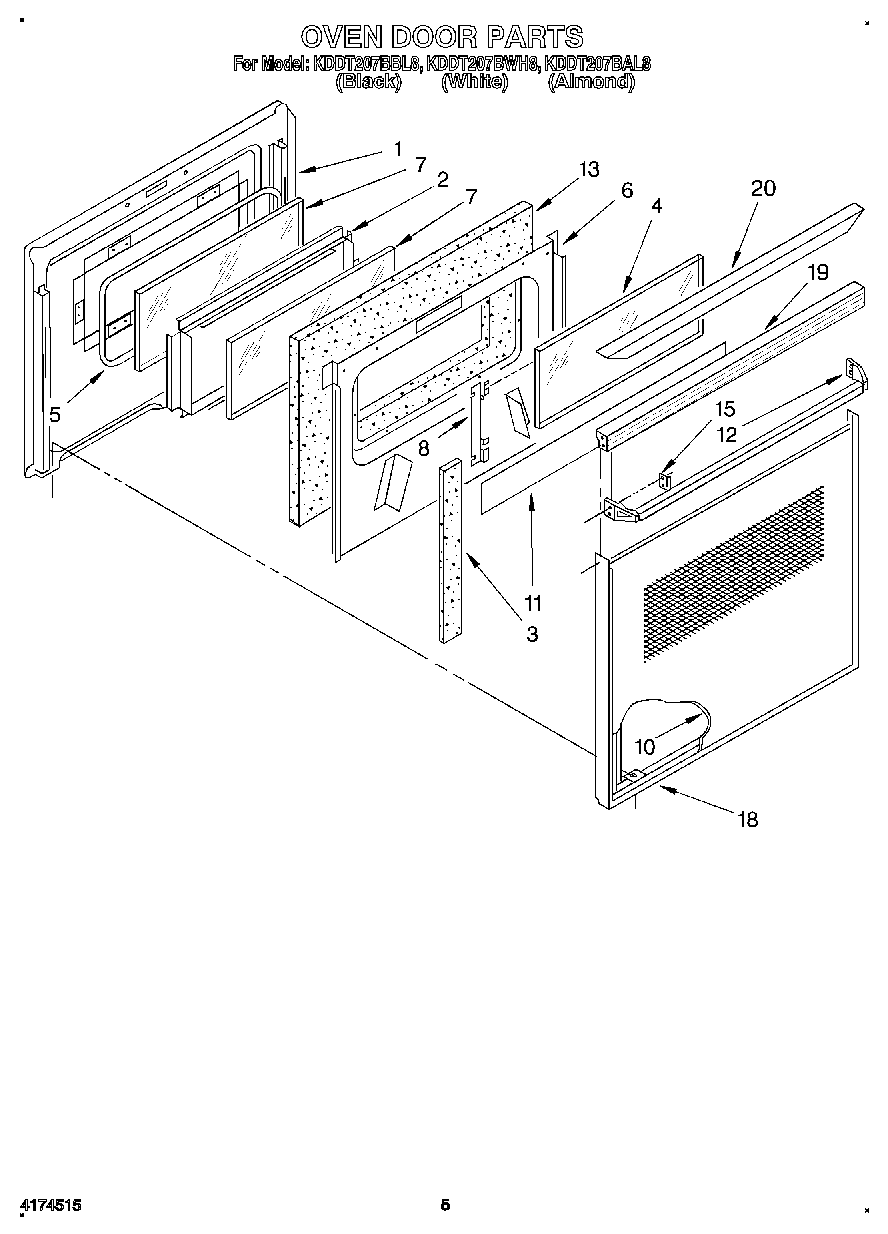

KDDT207BWH8 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Screw
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Almond Model)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (Black)
12	Handle, Door (Almond)
12	Handle, Door (White)
13	Insulation, Door
15	Clip, Mtg (2)
15	Screw
18	Frame, Door
19	Top, Door (Black Model)
19	Top, Door (White Model)
20	Cap, Top
20	Back Splash (Screw (4) 10AB x 1/2“)
