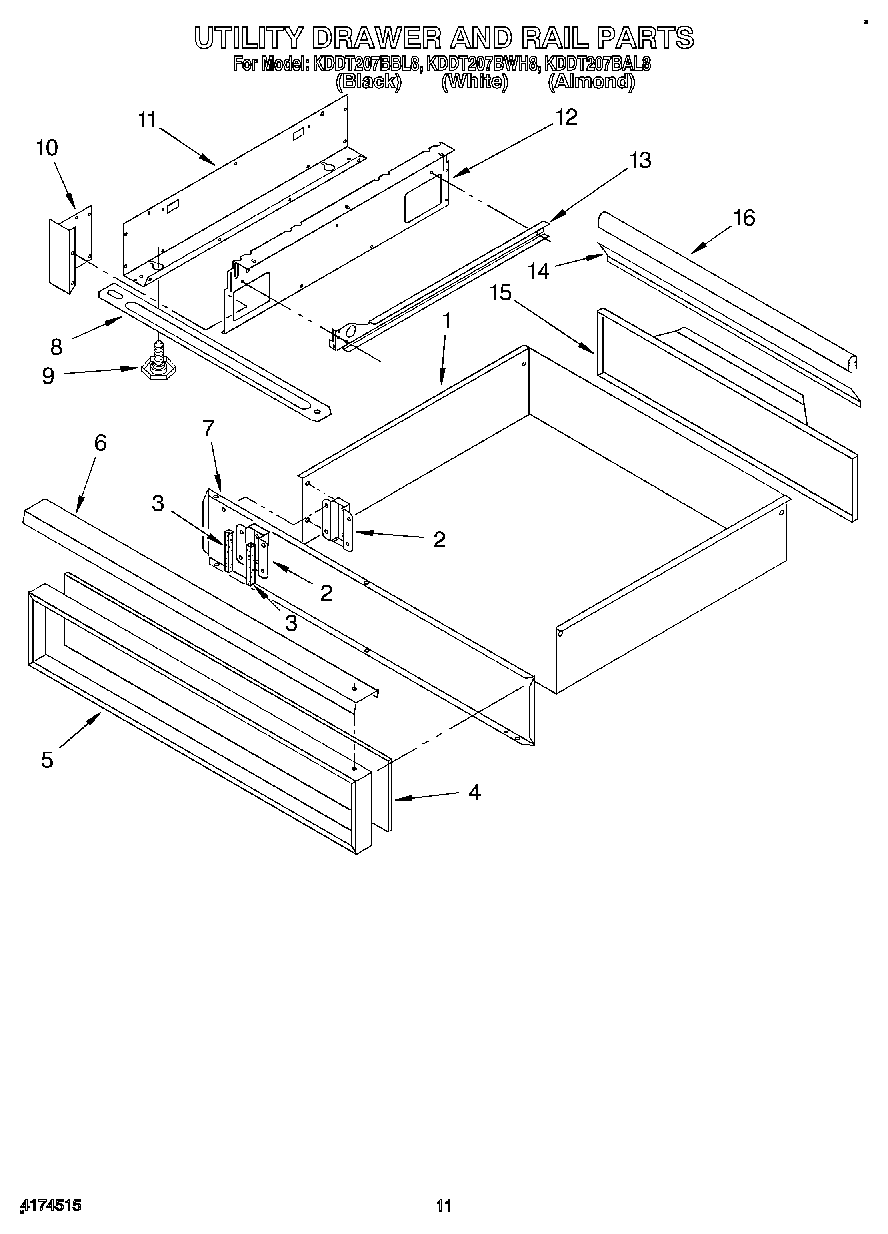

KDDT207BWH8 08 – UTILITY DRAWER AND RAILadmin2025-04-26T12:39:08+00:00KDDT207BWH8 08 – UTILITY DRAWER AND RAIL
Products
| Position | Product |
|---|
| 1 | Drawer, Utility |
| 2 | Bracket, Mounting |
| 3 | Seal, Foam (4) |
| 4 | Glass, Drawer Front (White) |
| 4 | Glass, Drawer Front (Almond) |
| 4 | Glass, Drawer Front (Black) |
| 5 | Frame, Outer |
| 5 | Fastener (2) |
| 6 | Handle, Drawer (Black) |
| 6 | Handle, Drawer (White) |
| 6 | Handle, Drawer (Almond) |
| 6 | WP355515 Whirlpool Screw |
| 6 | Screw |
| 7 | Panel, Back |
| 8 | Bracket |
| 9 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 10 | Cap, Front (Right Hand) |
| 10 | Cap, Front (Left Hand) |
| 11 | Support, Outer Drawer |
| 12 | Support, Inner Drawer |
| 13 | Track, Drawer (Right Hand) |
| 13 | Track, Drawer (Left Hand) |
| 14 | Baffle, Drip |
| 15 | Panel, Kick |
| 15 | WP488729 Whirlpool Refrigerator Door Screw |
| 16 | Protector, Edge |
