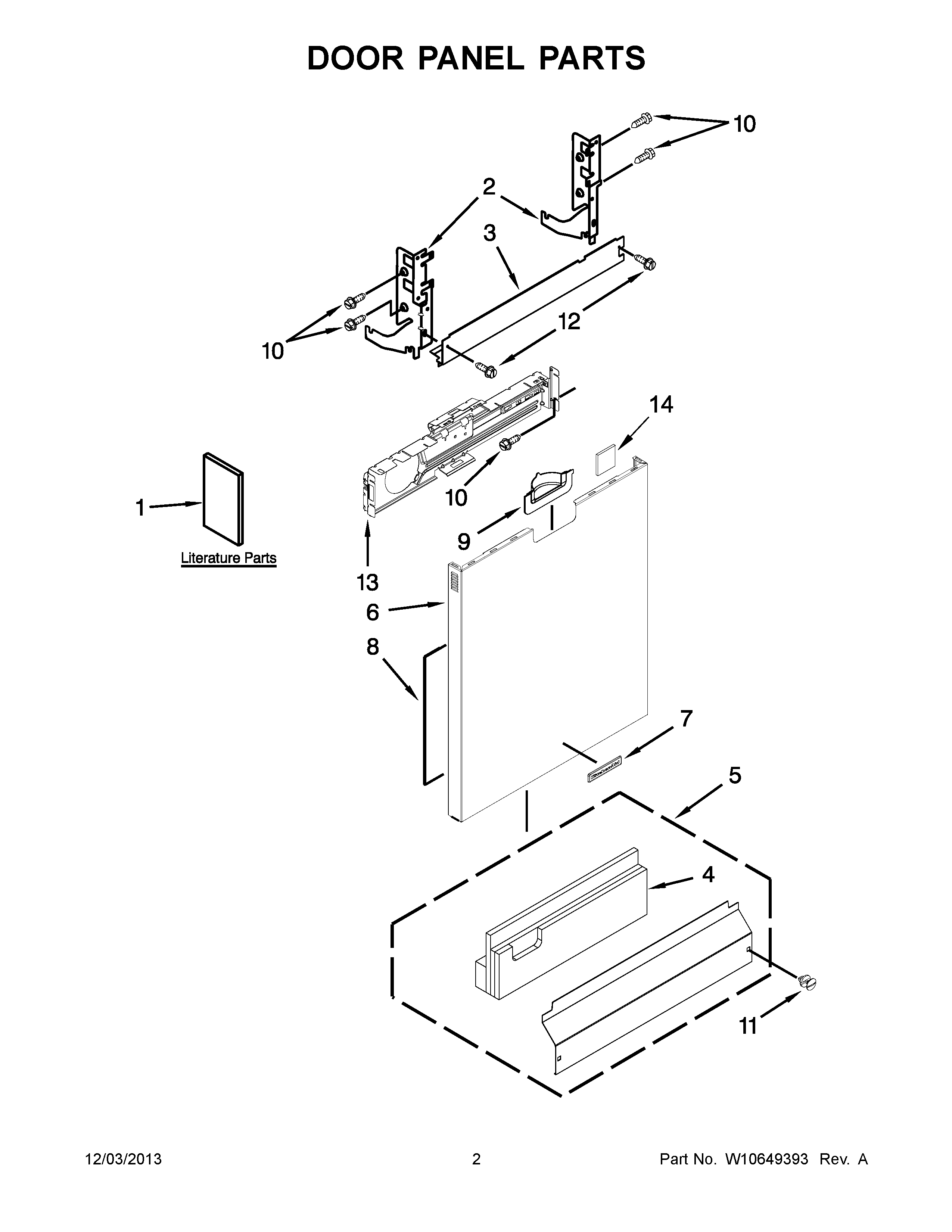

KDFE104DBL0 02 – DOOR PANEL PARTS

Products

Position	Product
1	TECH SHEET, ENGLISH
1	INSTRUCTIONS, INSTALLATION
1	USE & CARE GUIDE
1	ENERGY GUIDE
1	TECH SHEET, FRENCH
2	W11612302 Whirlpool Dishwasher Door Hinge
2	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	WPW10751394 Whirlpool Dishwasher Panel
6	WPW10751393 Whirlpool Dishwasher Panel
6	WPW10751392 Whirlpool Dishwasher Panel
7	WPW10243392 Whirlpool Dishwasher Nameplate
7	WPW10243393 Whirlpool Dishwasher Nameplate
7	WPW10243391 Whirlpool Refrigerator Nameplate
8	WPW10073520 Whirlpool Dishwasher Insulation Pad
9	W10537398 Whirlpool Dishwasher Pocket Handle
9	W10537396 Whirlpool Dishwasher Pocket Handle
9	W10537395 Whirlpool Dishwasher Pocket Handle
10	WP3400071 Whirlpool Screw
11	WPW10503549 Whirlpool Dishwasher Retainer Clip
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WP489069 Whirlpool Compactor Screw
13	WPW10350242 Whirlpool Dishwasher Control Bracket
14	W10622466 Whirlpool Dishwasher Spacer
