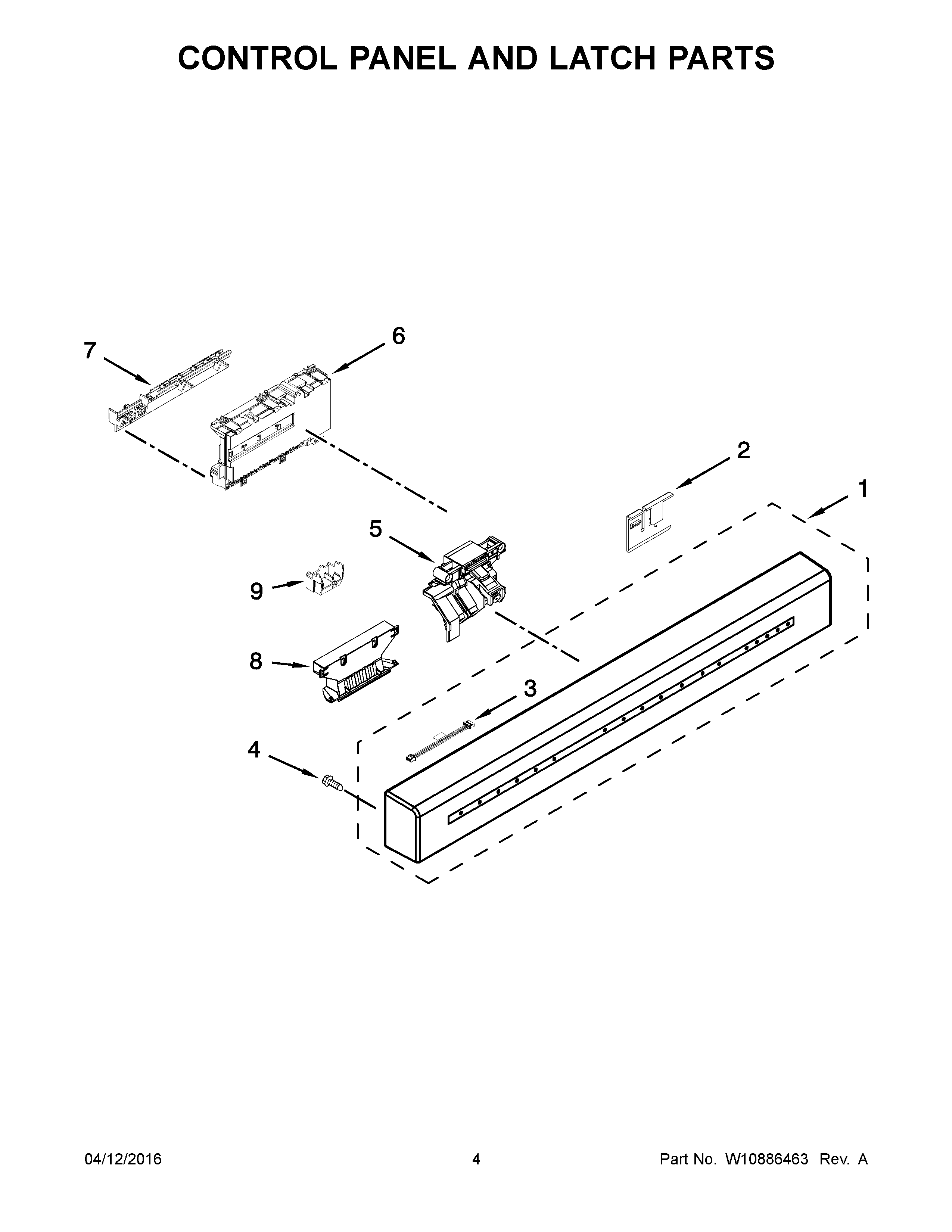

KDFE104DBL3 03 – CONTROL PANEL AND LATCH PARTS

KDFE104DBL3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDFE104DBL3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10891912 Whirlpool Dishwasher Control Panel
1AW10891911 Whirlpool Dishwasher Control Panel
1W10891665 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10792164 Whirlpool Dishwasher Wire
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10875442 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10537379 Whirlpool Dishwasher Handle
9W10783730 Whirlpool Dishwasher Connector
