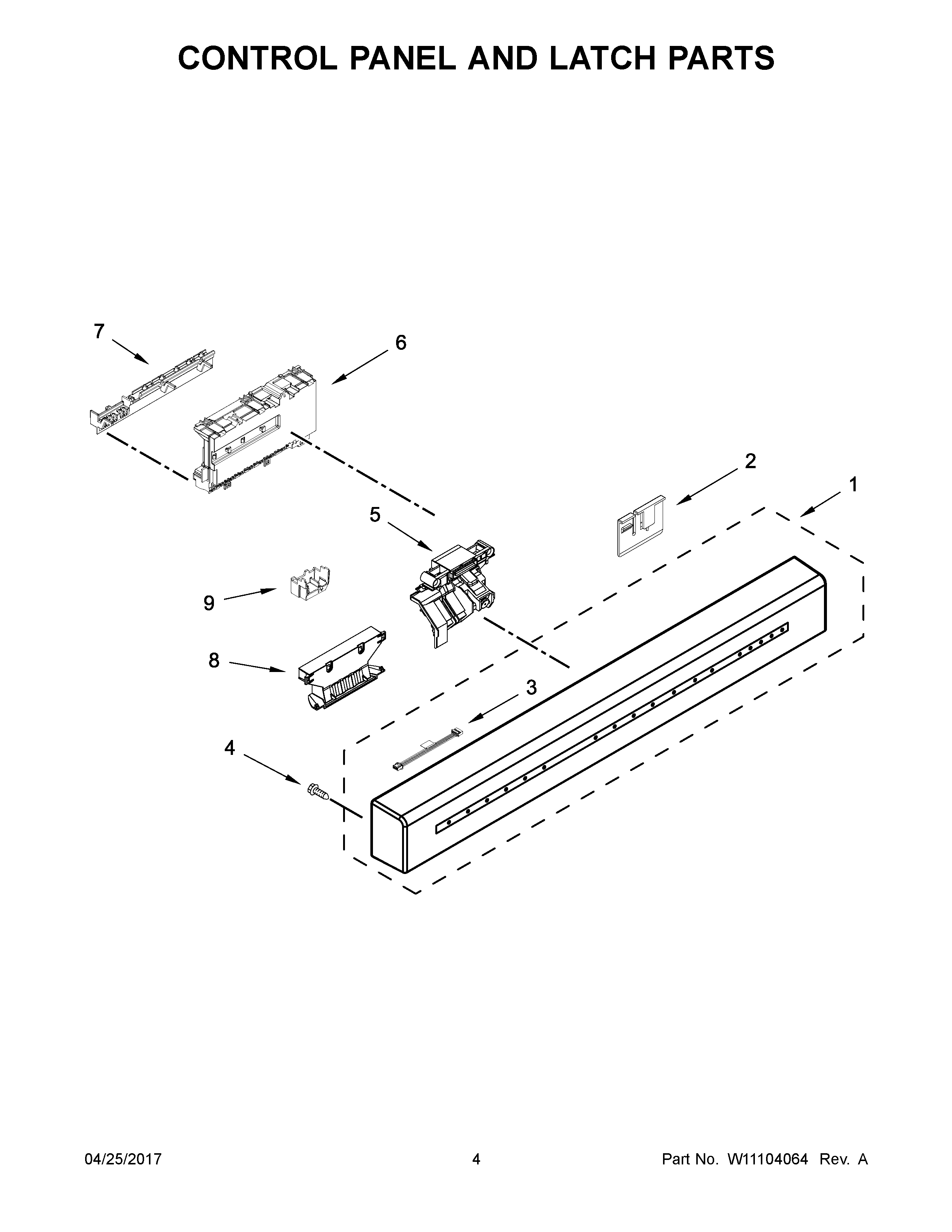

KDFE104DBL5 03 – CONTROL PANEL AND LATCH PARTS

KDFE104DBL5 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDFE104DBL5 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11105845 Whirlpool Dishwasher Console + Core
1AW11105847 Whirlpool Dishwasher Console + Core
1BW11105848 Whirlpool Dishwasher Console + Core
2W11256107 Whirlpool Dishwasher Clip
3W10792164 Whirlpool Dishwasher Wire
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
7W11305293 Whirlpool Dishwasher Electronic Control Board
8W10537379 Whirlpool Dishwasher Handle
