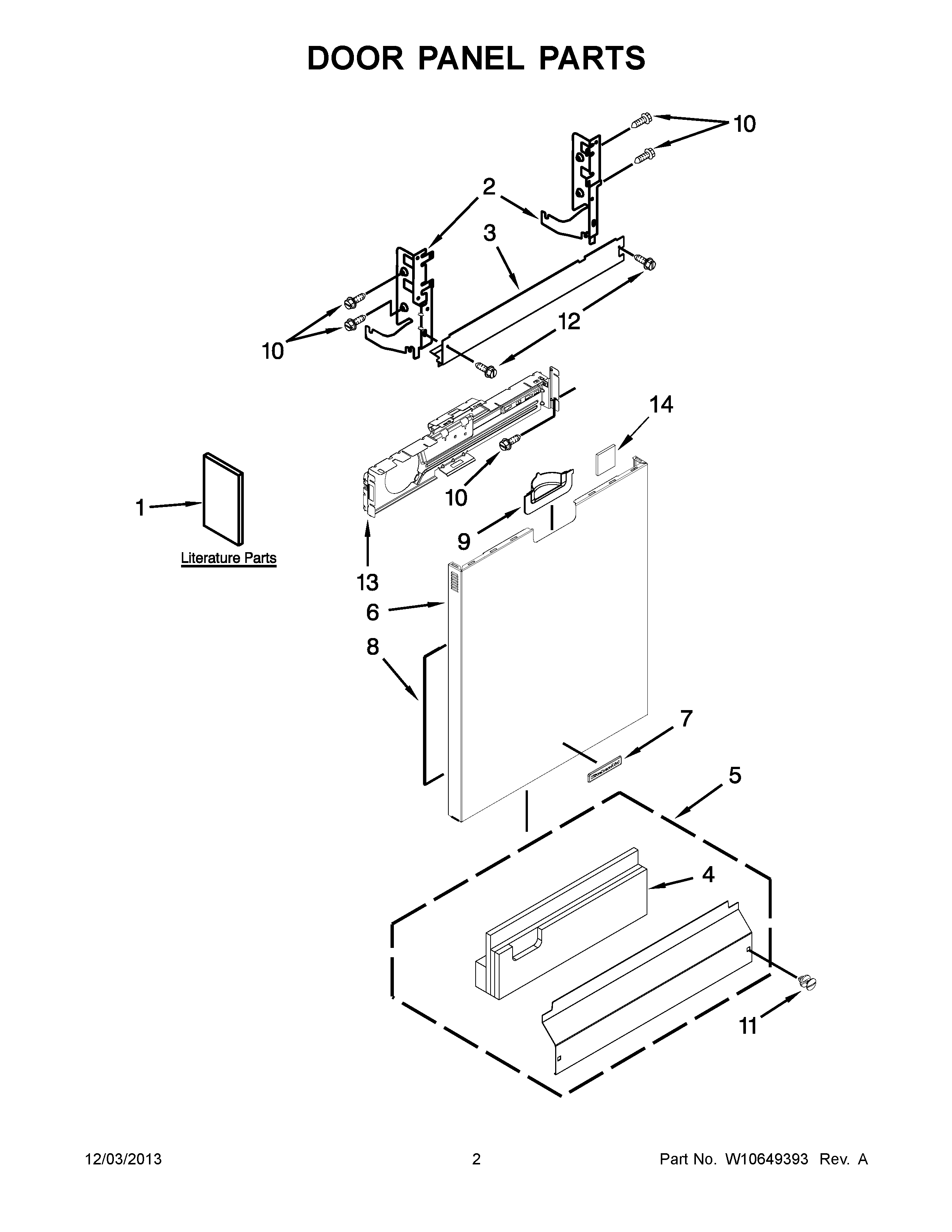

KDFE104DSS0 02 – DOOR PANEL PARTS

KDFE104DSS0 02 – DOOR PANEL PARTS

Written by

in

KDFE104DSS0 02 – DOOR PANEL PARTS

Products

PositionProduct
1TECH SHEET, ENGLISH
1INSTRUCTIONS, INSTALLATION
1USE & CARE GUIDE
1ENERGY GUIDE
1TECH SHEET, FRENCH
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WPW10751394 Whirlpool Dishwasher Panel
6WPW10751393 Whirlpool Dishwasher Panel
6WPW10751392 Whirlpool Dishwasher Panel
7WPW10243392 Whirlpool Dishwasher Nameplate
7WPW10243393 Whirlpool Dishwasher Nameplate
7WPW10243391 Whirlpool Refrigerator Nameplate
8WPW10073520 Whirlpool Dishwasher Insulation Pad
9W10537398 Whirlpool Dishwasher Pocket Handle
9W10537396 Whirlpool Dishwasher Pocket Handle
9W10537395 Whirlpool Dishwasher Pocket Handle
10WP3400071 Whirlpool Screw
11WPW10503549 Whirlpool Dishwasher Retainer Clip
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP489069 Whirlpool Compactor Screw
13WPW10350242 Whirlpool Dishwasher Control Bracket
14W10622466 Whirlpool Dishwasher Spacer
