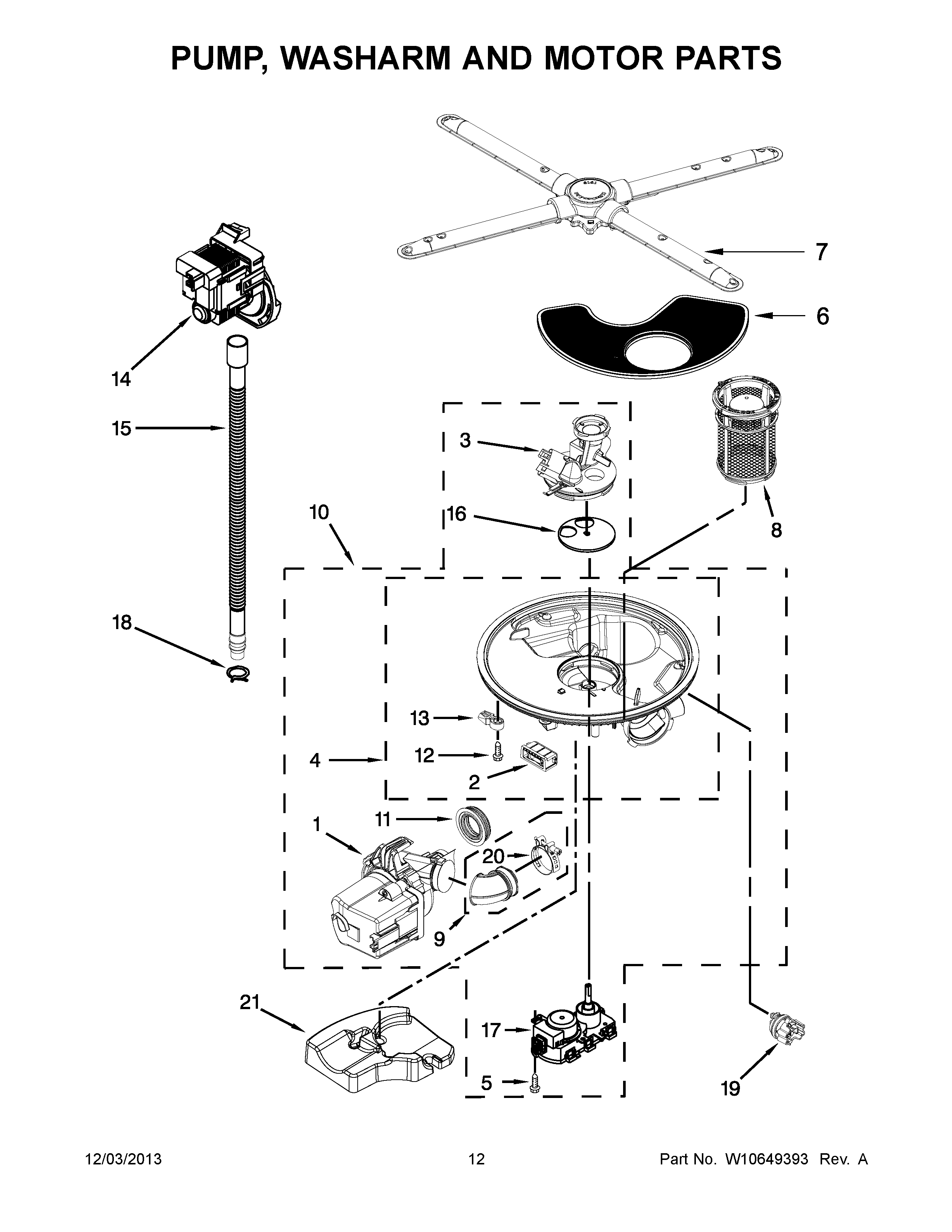

KDFE104DSS0 07 – PUMP, WASHARM AND MOTOR PARTS

KDFE104DSS0 07 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

KDFE104DSS0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W11032770 Whirlpool Dishwasher Circulation Pump & Motor
2W11243394 Whirlpool Dishwasher Support
3WPW10455271 Whirlpool Cover
4WPW10455268 Whirlpool Sump
5WP9741232 Whirlpool Dishwasher Screw
6WPW10463906 Whirlpool Dishwasher Screen Filter Cover
7ARM-SPRAY
8W10872845 Whirlpool Dishwasher Filter Cup Trap
9W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
10WPW10605057 Whirlpool Dishwasher Pump and Motor Assembly
11WPW10538166 Whirlpool Grommet Pump
12WPW10348407 Whirlpool Dishwasher Screw
13WPW10372113 Whirlpool Dishwasher Sump Tab
14WPW10348269 Whirlpool Washer Drain Pump
158269144A Whirlpool Dishwasher Drain Hose
16WPW10476221 Whirlpool Dishwasher Diffuser
17W10537869 Whirlpool Dishwasher Motor
18WP8269146 Whirlpool Dishwasher Clamp
19WPW10705575 Whirlpool Dishwasher Sensor
20W10789434 Whirlpool Dishwasher Hose Clamp
21W10350335 Whirlpool Dishwasher Damper
