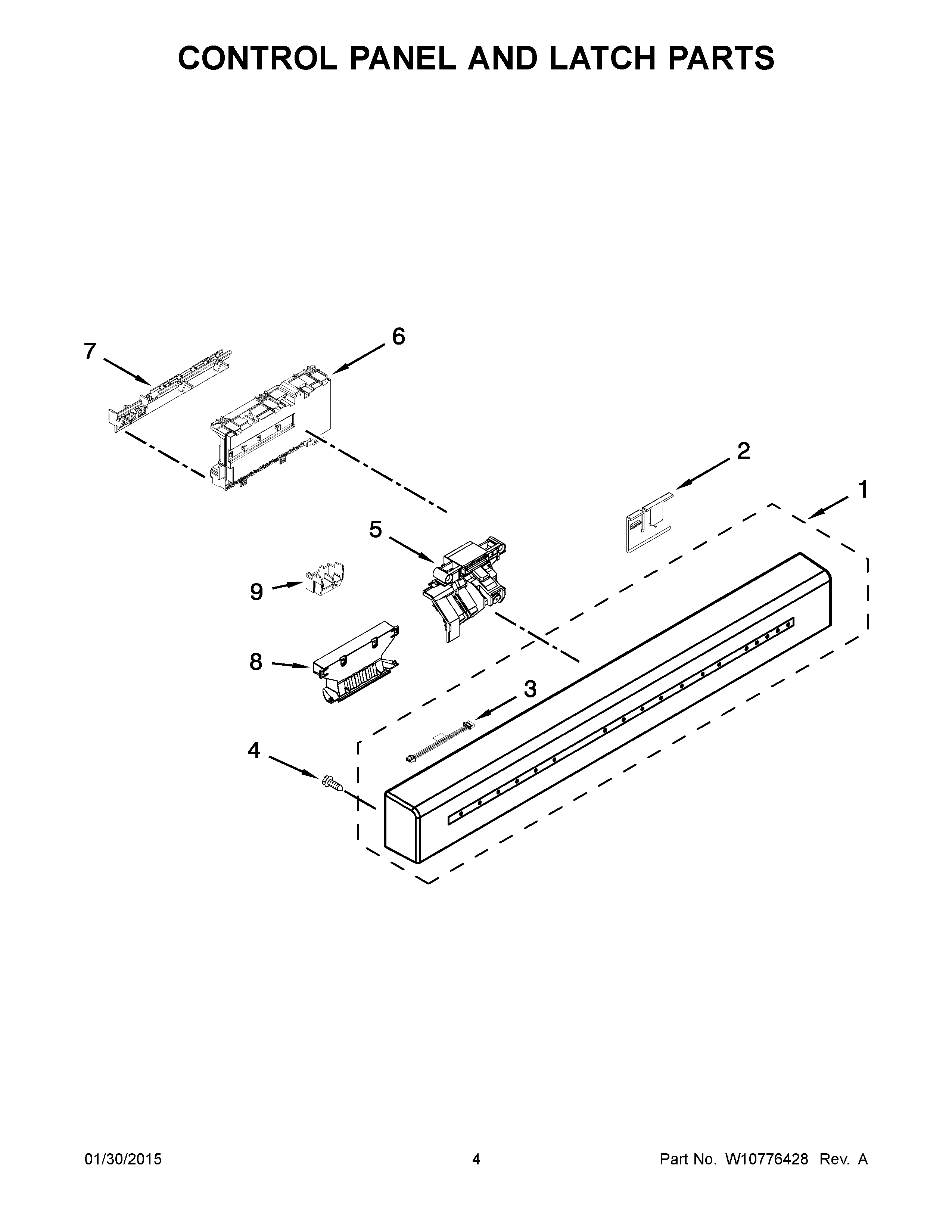

KDFE104DSS1 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1B	WPW10537336 Whirlpool Dishwasher Control Panel
1A	WPW10537335 Whirlpool Dishwasher Control Panel
1	WPW10537334 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10528492 Whirlpool Dishwasher Wire
4	WPW10348408 Whirlpool Dishwasher Screw
5	WPW10653840 Whirlpool Door Latch
6	W10854215 Whirlpool Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8A	W10537379 Whirlpool Dishwasher Handle
9	W10783730 Whirlpool Dishwasher Connector
