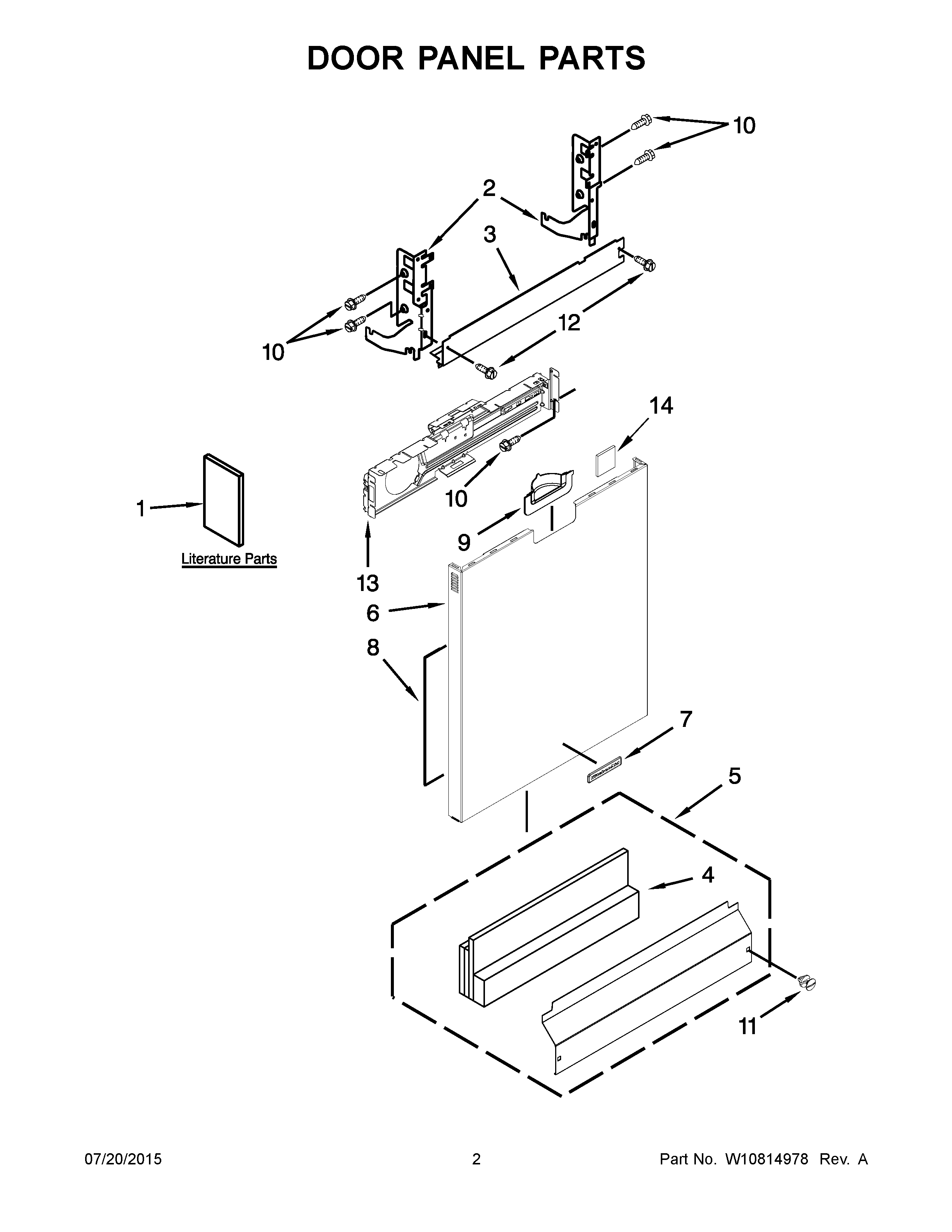

KDFE104DSS2 02 – DOOR PANEL PARTS

Products

Position	Product
1D	TECH SHEET, FRENCH
1C	TECH SHEET, ENGLISH
1A	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
1B	USE & CARE GUIDE
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5A	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6A	WPW10751394 Whirlpool Dishwasher Panel
6	WPW10751393 Whirlpool Dishwasher Panel
6B	WPW10751392 Whirlpool Dishwasher Panel
7B	WPW10243391 Whirlpool Refrigerator Nameplate
7	WPW10243392 Whirlpool Dishwasher Nameplate
7A	WPW10243393 Whirlpool Dishwasher Nameplate
8	WPW10073520 Whirlpool Dishwasher Insulation Pad
9A	W10537396 Whirlpool Dishwasher Pocket Handle
9	W10537395 Whirlpool Dishwasher Pocket Handle
9B	W10537398 Whirlpool Dishwasher Pocket Handle
10	WP3400071 Whirlpool Screw
11A	WPW10503549 Whirlpool Dishwasher Retainer Clip
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WP302868 Whirlpool Screw
13	WPW10350242 Whirlpool Dishwasher Control Bracket
14	W10622466 Whirlpool Dishwasher Spacer
