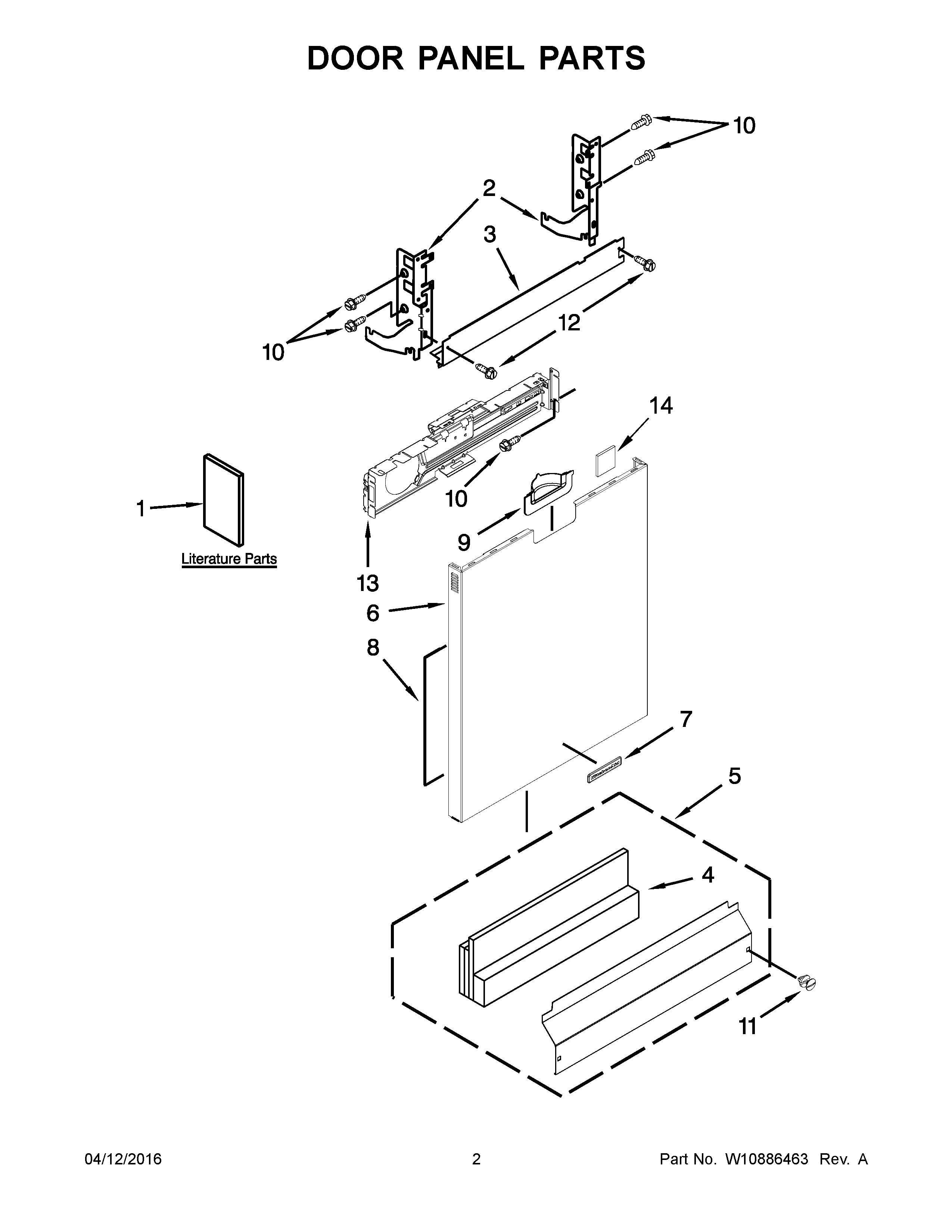

KDFE104DSS3 02 – DOOR PANEL PARTS

KDFE104DSS3 02 – DOOR PANEL PARTS

Written by

in

KDFE104DSS3 02 – DOOR PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
5AWPW10526115 Whirlpool Dishwasher Panel
6WPW10751393 Whirlpool Dishwasher Panel
6AWPW10751394 Whirlpool Dishwasher Panel
6BWPW10751392 Whirlpool Dishwasher Panel
7W10839793 Whirlpool Refrigerator Nameplate
8WPW10073520 Whirlpool Dishwasher Insulation Pad
9BW10537398 Whirlpool Dishwasher Pocket Handle
9AW10537396 Whirlpool Dishwasher Pocket Handle
9W10537395 Whirlpool Dishwasher Pocket Handle
10WP3400071 Whirlpool Screw
11AWPW10503549 Whirlpool Dishwasher Retainer Clip
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP302868 Whirlpool Screw
13WPW10350242 Whirlpool Dishwasher Control Bracket
14W10622466 Whirlpool Dishwasher Spacer
