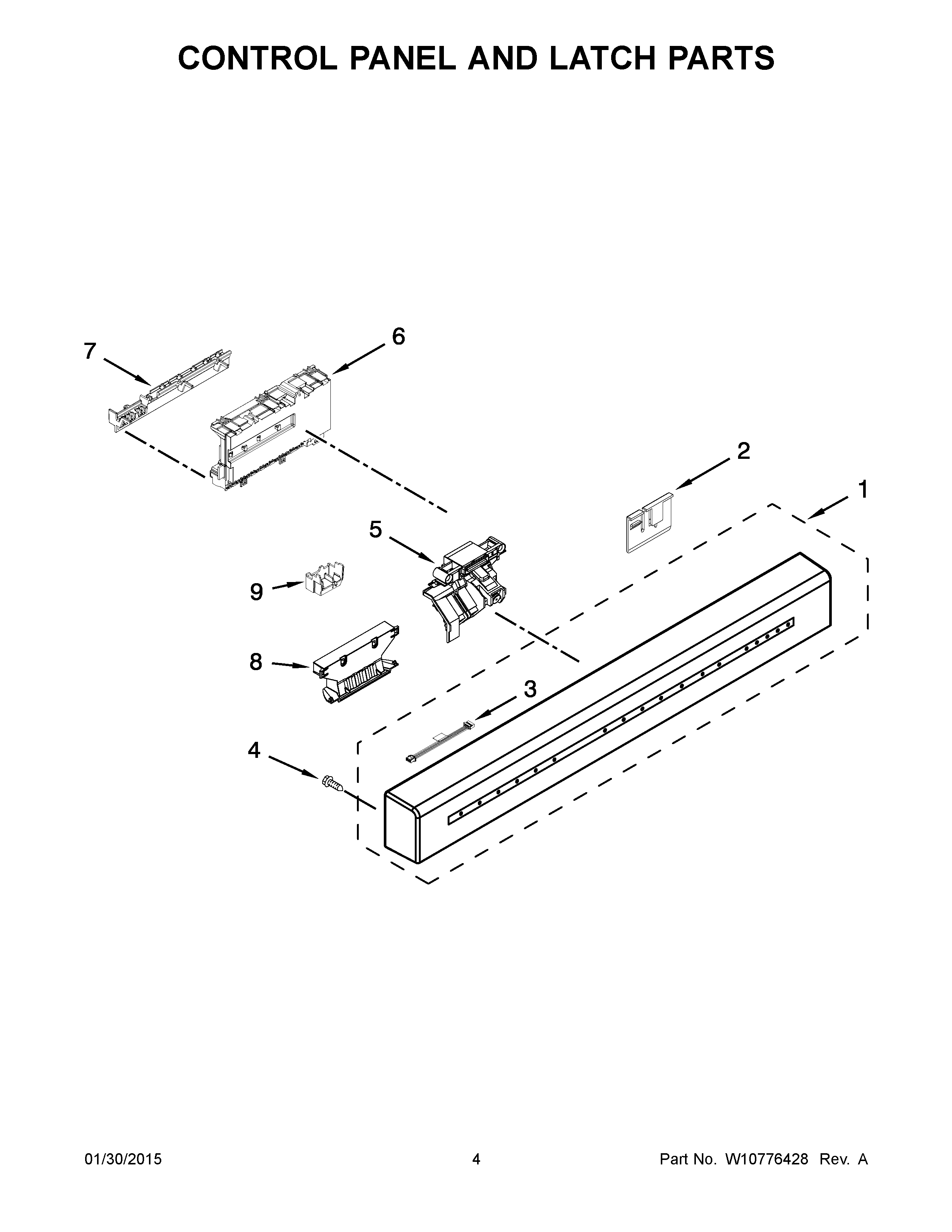

KDFE104DWH1 03 – CONTROL PANEL AND LATCH PARTS

KDFE104DWH1 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDFE104DWH1 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BWPW10537336 Whirlpool Dishwasher Control Panel
1AWPW10537335 Whirlpool Dishwasher Control Panel
1WPW10537334 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10528492 Whirlpool Dishwasher Wire
4WPW10348408 Whirlpool Dishwasher Screw
5WPW10653840 Whirlpool Door Latch
6W10854215 Whirlpool Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8AW10537379 Whirlpool Dishwasher Handle
9W10783730 Whirlpool Dishwasher Connector
