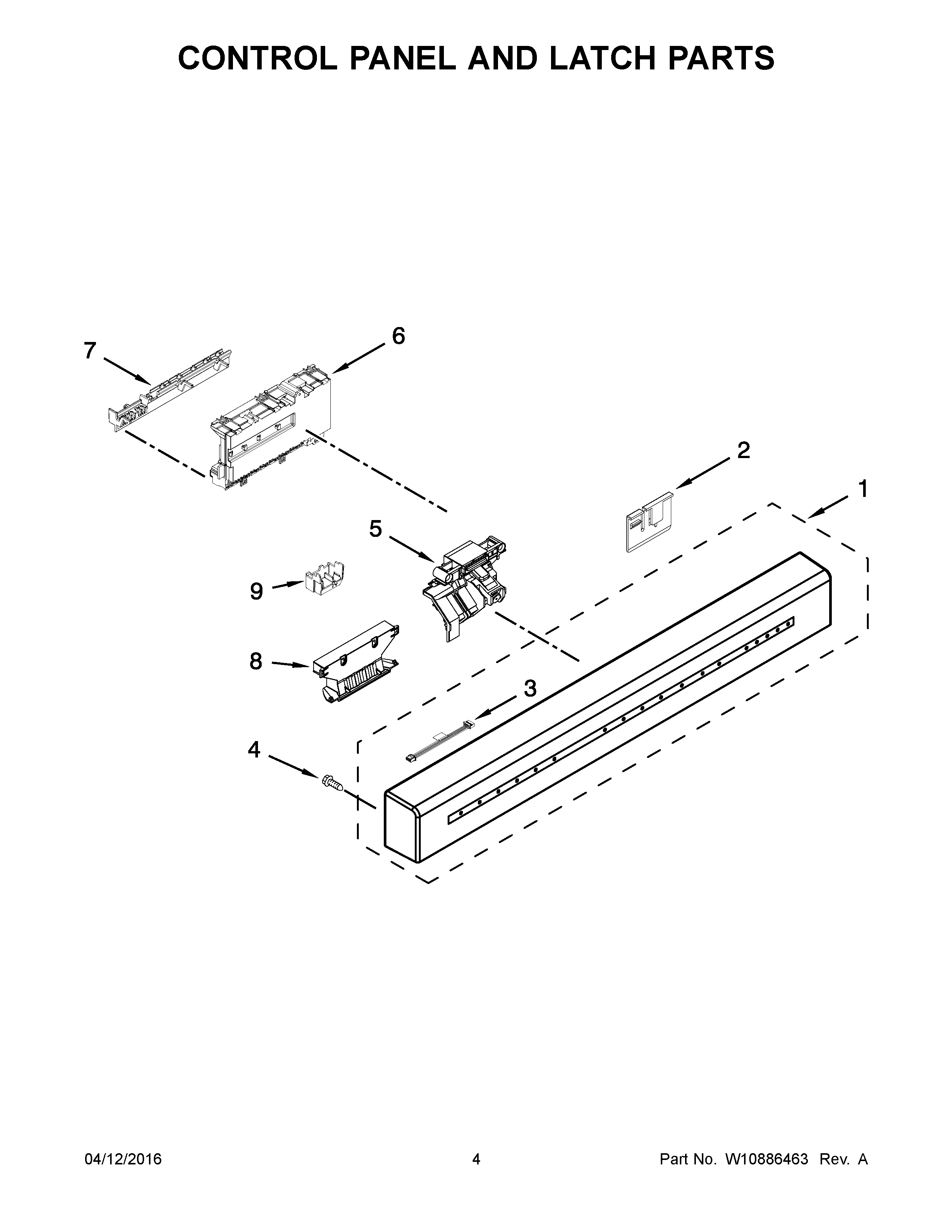

KDFE104DWH3 03 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1B	W10891912 Whirlpool Dishwasher Control Panel
1A	W10891911 Whirlpool Dishwasher Control Panel
1	W10891665 Whirlpool Dishwasher Control Panel
2	W11256107 Whirlpool Dishwasher Clip
3	W10792164 Whirlpool Dishwasher Wire
4	WPW10348408 Whirlpool Dishwasher Screw
5	WPW10653840 Whirlpool Door Latch
6	W10875442 Whirlpool Dishwasher Electronic Control Board
7	WPW10194937 Whirlpool Dishwasher Control Bracket
8	W10537379 Whirlpool Dishwasher Handle
9	W10783730 Whirlpool Dishwasher Connector
