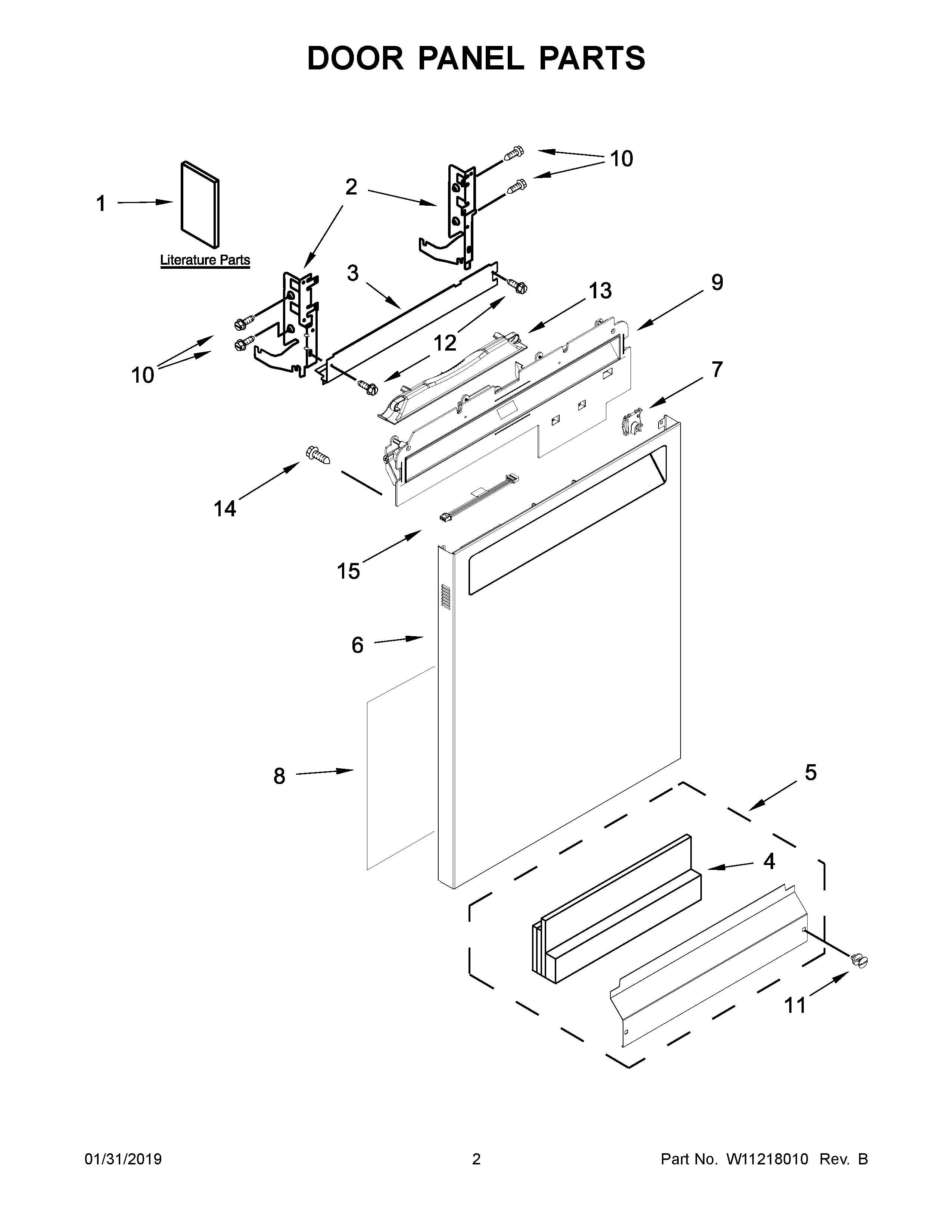

KDFE104HBL0 02 – DOOR PANEL PARTS

KDFE104HBL0 02 – DOOR PANEL PARTS

Written by

in

KDFE104HBL0 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
1AENERGY GUIDE
1CTECH SHEET
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5AWPW10526115 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6AW11231155 Whirlpool Dishwasher Panel
6W11231154 Whirlpool Dishwasher Panel
6BW11231157 Whirlpool Dishwasher Panel
7W10692757 Whirlpool Dishwasher Nut Assembly
8WPW10073520 Whirlpool Dishwasher Insulation Pad
9W11088845 Whirlpool Dishwasher Control Panel
9AW11088846 Whirlpool Dishwasher Control Panel
10WP3400071 Whirlpool Screw
11AWPW10503549 Whirlpool Dishwasher Retainer Clip
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP302868 Whirlpool Screw
13HANDLE, POCKET (BLACK)
13AW11223377 Whirlpool Dishwasher Handle Pocket
14SCREW
15W10919302 Whirlpool Dishwasher Wire
