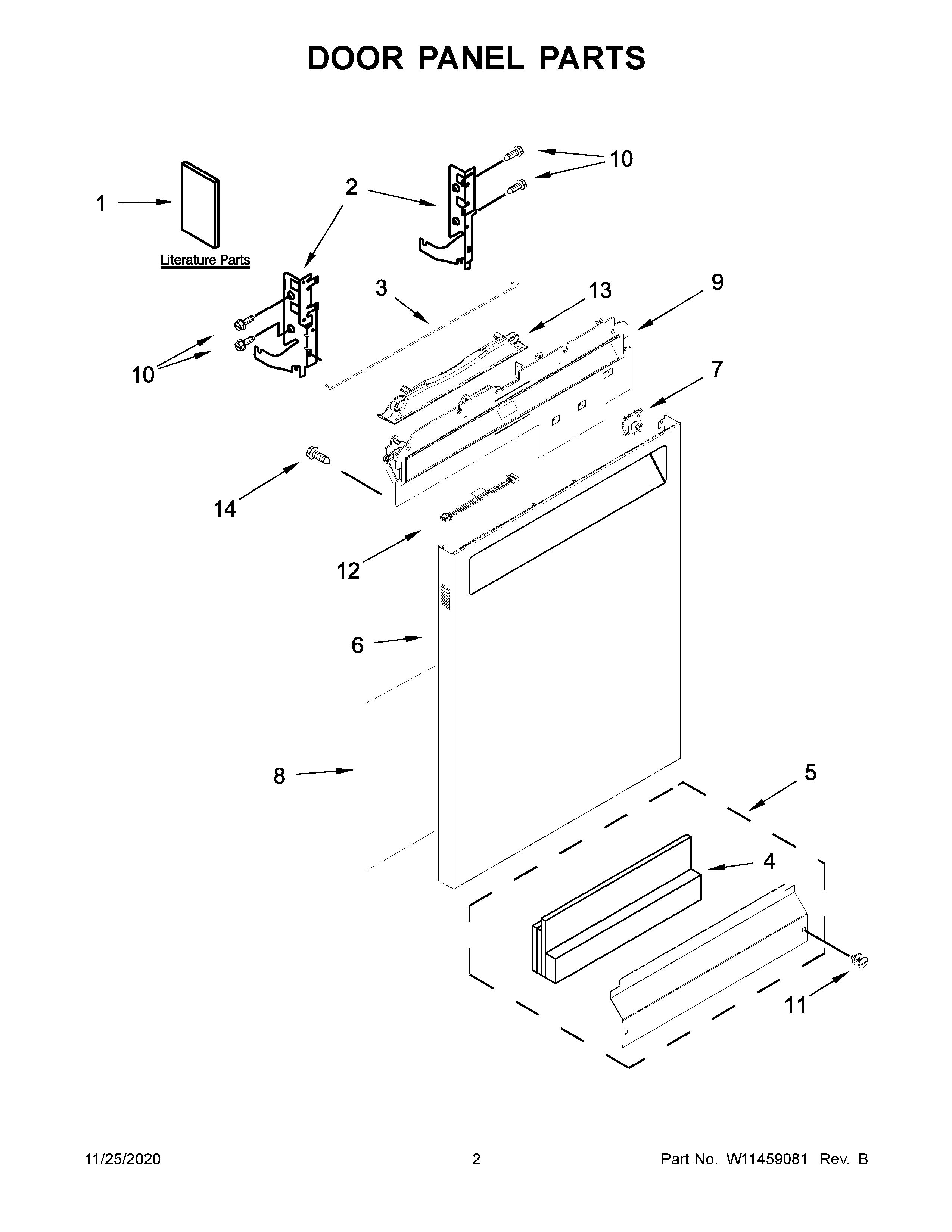

KDFE104HBS1 02 – DOOR PANEL PARTS

KDFE104HBS1 02 – DOOR PANEL PARTS

Written by

in

KDFE104HBS1 02 – DOOR PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1BTECH SHEET
1AOWNERS MANUAL
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
5AWPW10526115 Whirlpool Dishwasher Panel
6AW11231155 Whirlpool Dishwasher Panel
6W11231154 Whirlpool Dishwasher Panel
6CW11231157 Whirlpool Dishwasher Panel
6BW11231156 Whirlpool Outer Door Panel
7W10692757 Whirlpool Dishwasher Nut Assembly
8WPW10073520 Whirlpool Dishwasher Insulation Pad
9W11088845 Whirlpool Dishwasher Control Panel
9AW11088846 Whirlpool Dishwasher Control Panel
9BW11459348 Whirlpool Dishwasher Control Panel
10WP3400071 Whirlpool Screw
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
11AWPW10503549 Whirlpool Dishwasher Retainer Clip
12W10919302 Whirlpool Dishwasher Wire
13HANDLE, POCKET (BLACK)
13AW11223377 Whirlpool Dishwasher Handle Pocket
14SCREW
