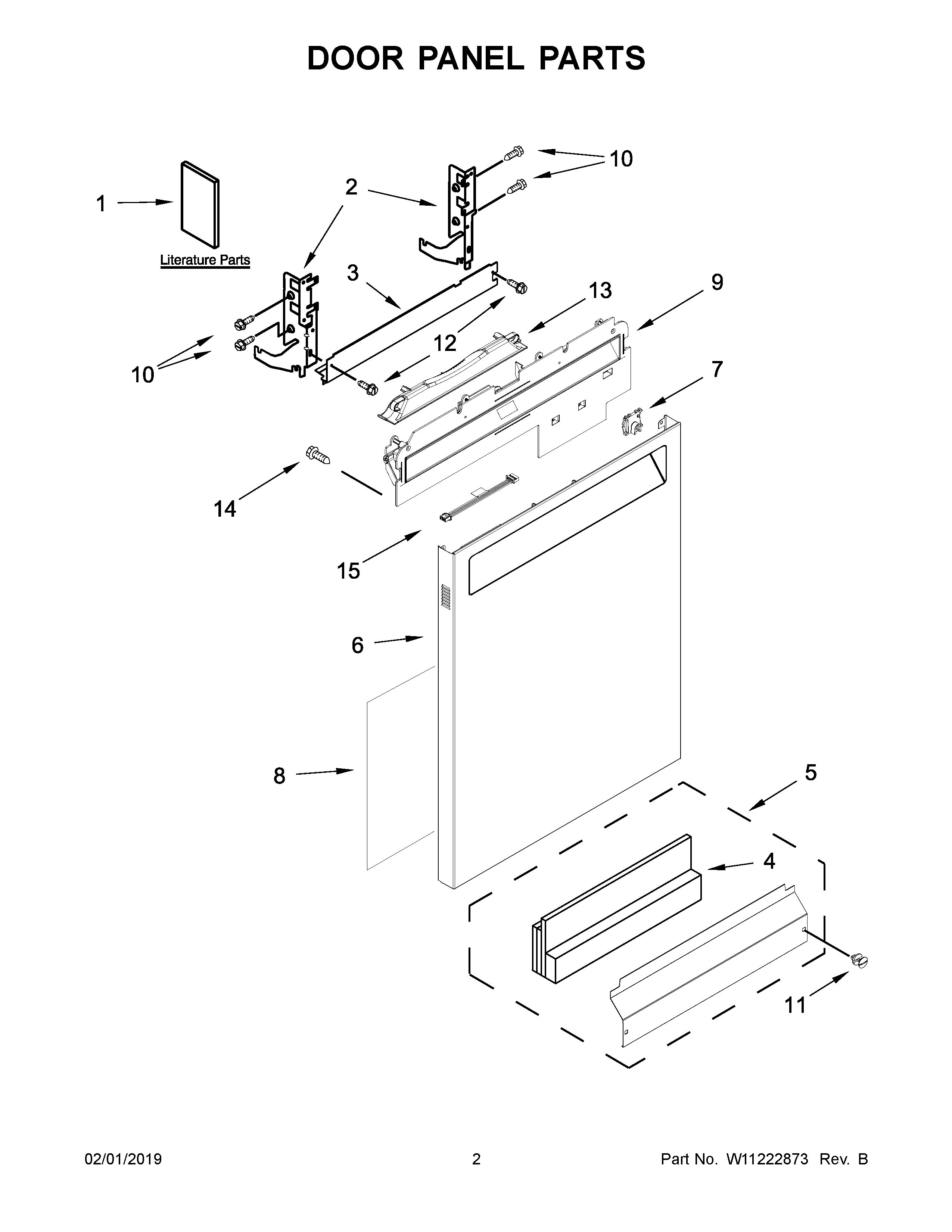

KDFE104HPS0 02 – DOOR PANEL PARTS

KDFE104HPS0 02 – DOOR PANEL PARTS

Written by

in

KDFE104HPS0 02 – DOOR PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CTECH SHEET
1AENERGY GUIDE
1BUSE & CARE GUIDE
2AW11612303 Whirlpool Door Hinge
2W11612302 Whirlpool Dishwasher Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4SHIELD
5WPW10526114 Whirlpool Dishwasher Access Panel
6W11231156 Whirlpool Outer Door Panel
7W10692757 Whirlpool Dishwasher Nut Assembly
8WPW10073520 Whirlpool Dishwasher Insulation Pad
9W11459348 Whirlpool Dishwasher Control Panel
10WP3400071 Whirlpool Screw
11WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12WP302868 Whirlpool Screw
13W11223377 Whirlpool Dishwasher Handle Pocket
14SCREW
15W10919302 Whirlpool Dishwasher Wire
