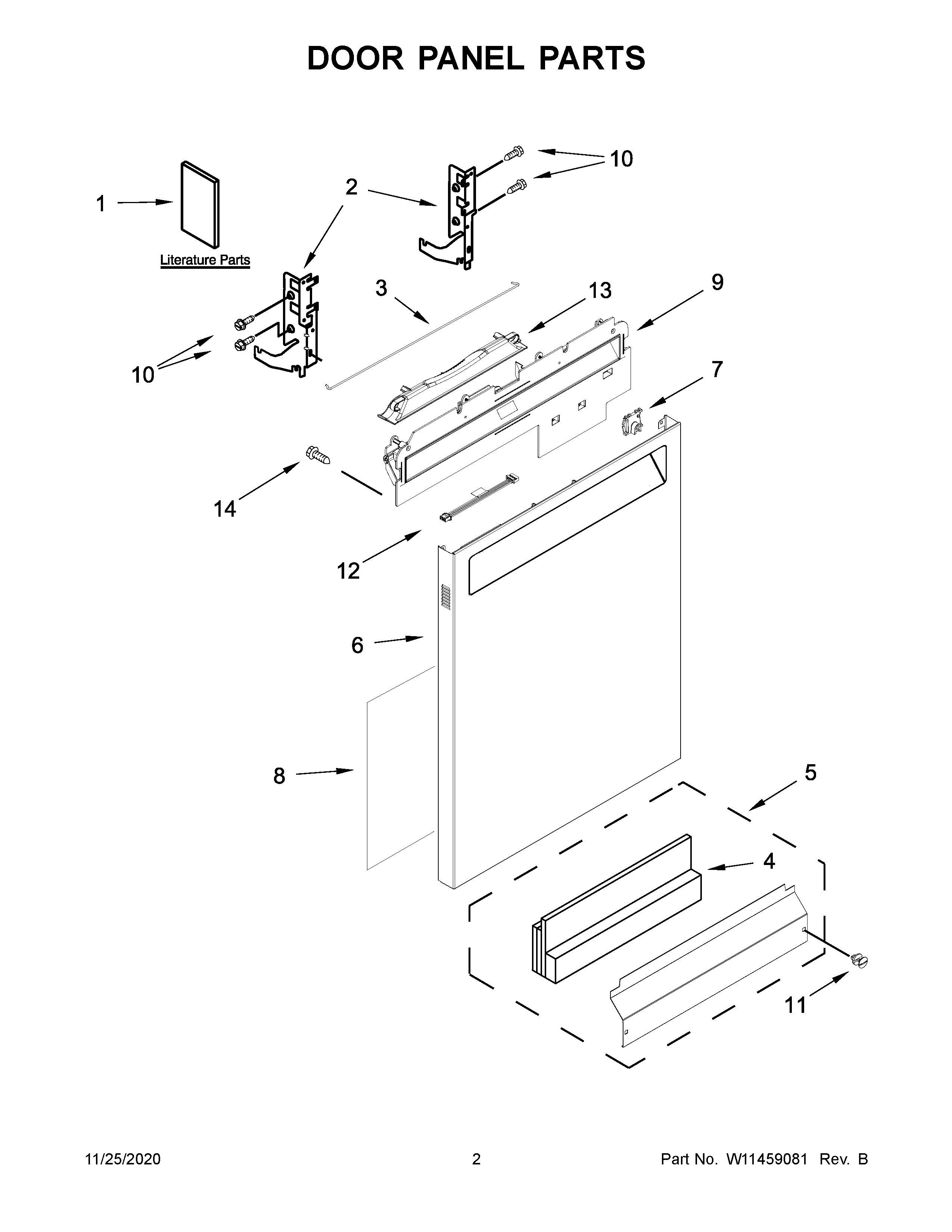

KDFE104HPS1 02 – DOOR PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1B	TECH SHEET
1A	OWNERS MANUAL
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5	WPW10526114 Whirlpool Dishwasher Access Panel
5A	WPW10526115 Whirlpool Dishwasher Panel
6A	W11231155 Whirlpool Dishwasher Panel
6	W11231154 Whirlpool Dishwasher Panel
6C	W11231157 Whirlpool Dishwasher Panel
6B	W11231156 Whirlpool Outer Door Panel
7	W10692757 Whirlpool Dishwasher Nut Assembly
8	WPW10073520 Whirlpool Dishwasher Insulation Pad
9	W11088845 Whirlpool Dishwasher Control Panel
9A	W11088846 Whirlpool Dishwasher Control Panel
9B	W11459348 Whirlpool Dishwasher Control Panel
10	WP3400071 Whirlpool Screw
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
11A	WPW10503549 Whirlpool Dishwasher Retainer Clip
12	W10919302 Whirlpool Dishwasher Wire
13	HANDLE, POCKET (BLACK)
13A	W11223377 Whirlpool Dishwasher Handle Pocket
14	SCREW
