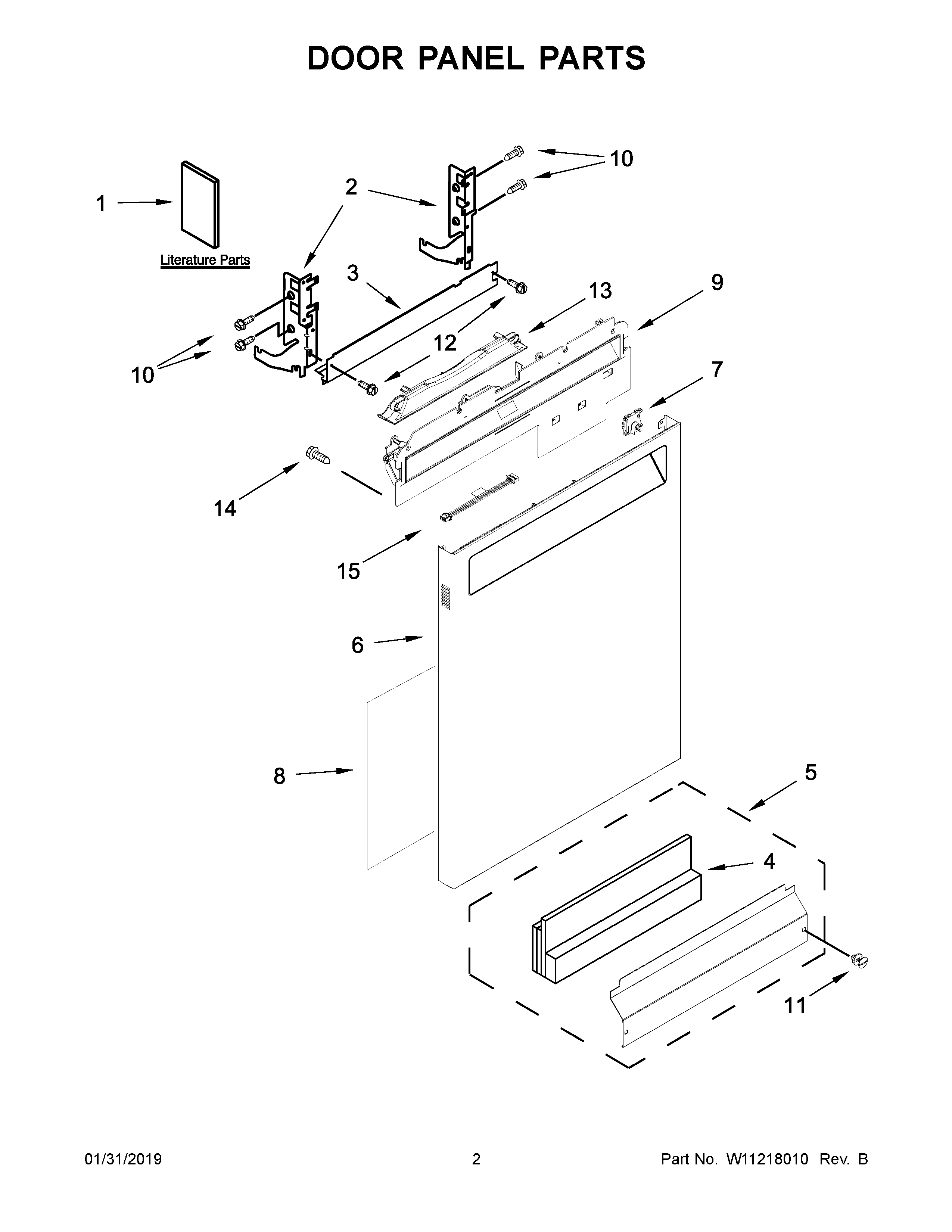

KDFE104HWH0 02 – DOOR PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1B	USE & CARE GUIDE
1A	ENERGY GUIDE
1C	TECH SHEET
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	SHIELD
5A	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6A	W11231155 Whirlpool Dishwasher Panel
6	W11231154 Whirlpool Dishwasher Panel
6B	W11231157 Whirlpool Dishwasher Panel
7	W10692757 Whirlpool Dishwasher Nut Assembly
8	WPW10073520 Whirlpool Dishwasher Insulation Pad
9	W11088845 Whirlpool Dishwasher Control Panel
9A	W11088846 Whirlpool Dishwasher Control Panel
10	WP3400071 Whirlpool Screw
11A	WPW10503549 Whirlpool Dishwasher Retainer Clip
11	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
12	WP302868 Whirlpool Screw
13	HANDLE, POCKET (BLACK)
13A	W11223377 Whirlpool Dishwasher Handle Pocket
14	SCREW
15	W10919302 Whirlpool Dishwasher Wire
