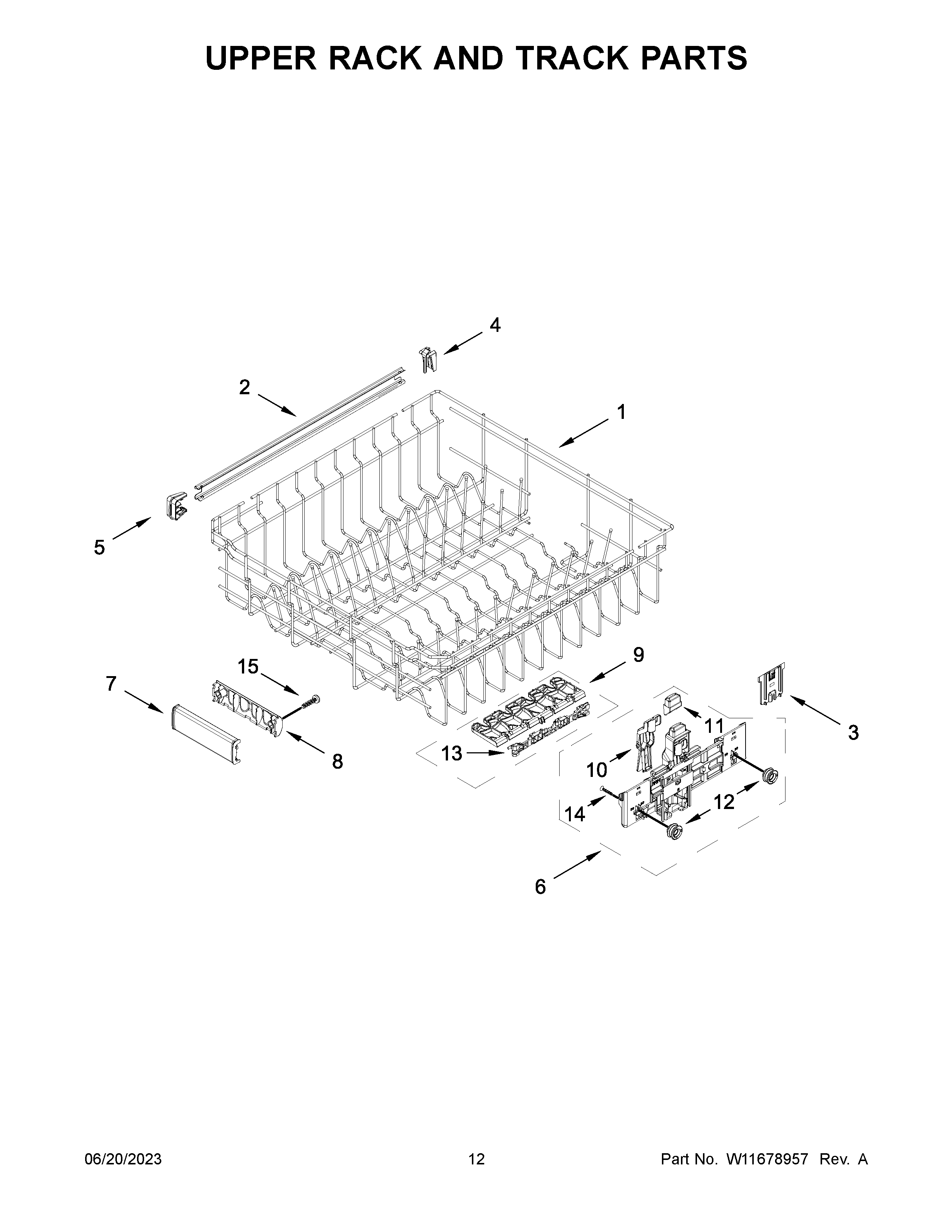

KDFE104KBL2 07 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W11678956 Whirlpool Dish Rack
2	W11561204 Whirlpool Track Assembly
3	W11580020 Whirlpool Positioner
4	W11579392 Whirlpool Stop
5	W11545307 Whirlpool Dishwasher Rack Stop Clip
6	W11551537 Whirlpool Adjuster
6A	W11551430 Whirlpool Adjuster
7	W11268682 Whirlpool Handle
8	W11268681 Whirlpool Handle
9	W11129799 Whirlpool Dishwasher Cupshelf
10	W11180178 Whirlpool Positioner
11	BUTTON, ADJUSTER ARM
12	W11545296 Whirlpool Roller
13	W11129797 Whirlpool Clip
14	W11708397 Whirlpool Screw
15	WP9741232 Whirlpool Dishwasher Screw
