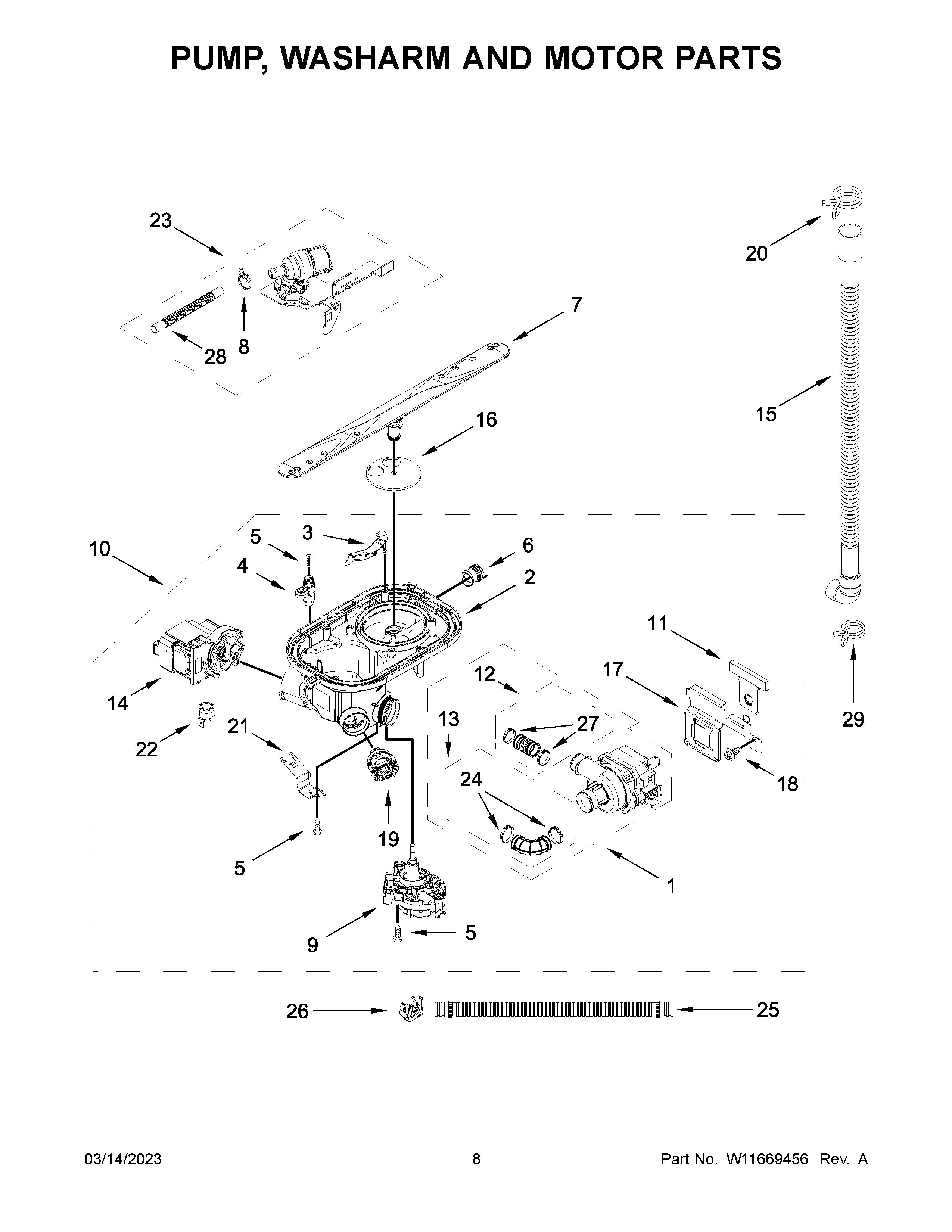

KDFE104KPS1 05 – PUMP, WASHARM AND MOTOR PARTS

KDFE104KPS1 05 – PUMP, WASHARM AND MOTOR PARTS

Written by

in

KDFE104KPS1 05 – PUMP, WASHARM AND MOTOR PARTS

Products

PositionProduct
1W11460963 Whirlpool Dishwasher Circulation Motor Pump Assembly
2W11443105 Whirlpool Sump
3W10891543 Whirlpool Retainer
4W11050773 Whirlpool Check Ball
5WP9741232 Whirlpool Dishwasher Screw
6W11622925 Whirlpool Check Valve
7ARM-SPRAY
8WP596669 Whirlpool Hose Clamp
9CABINET (NOT A SERVICEABLE PART)
10W11460945 Whirlpool Pump and Motor Assembly
11W11450247 Whirlpool Support
12W11419334 Whirlpool Hose
13W11460960 Whirlpool Hose
14PUMP-DRAIN
15W11414944 Whirlpool Drain Hose
16W11580016 Whirlpool Dishwasher Diffuser
17W11497568 Whirlpool Bracket
18W11104048 Whirlpool Cover
19W11410464 Whirlpool Sensor
20WP285655 Whirlpool Hose Clamp
21W11163419 Whirlpool Bracket – Stat
22W11573758 Whirlpool Thermostat
23VALVE-INLT
25W11614117 Whirlpool Drain Hose
26W11596052 Whirlpool Clip
27W10783615 Whirlpool Dishwasher Clamp
28W11627534 Whirlpool Fill Hose
29W11545578 Whirlpool Hose Clamp
