KDFE104KPS2 06 – UPPER WASH AND RINSE PARTS

KDFE104KPS2 06 – UPPER WASH AND RINSE PARTS

Written by

in

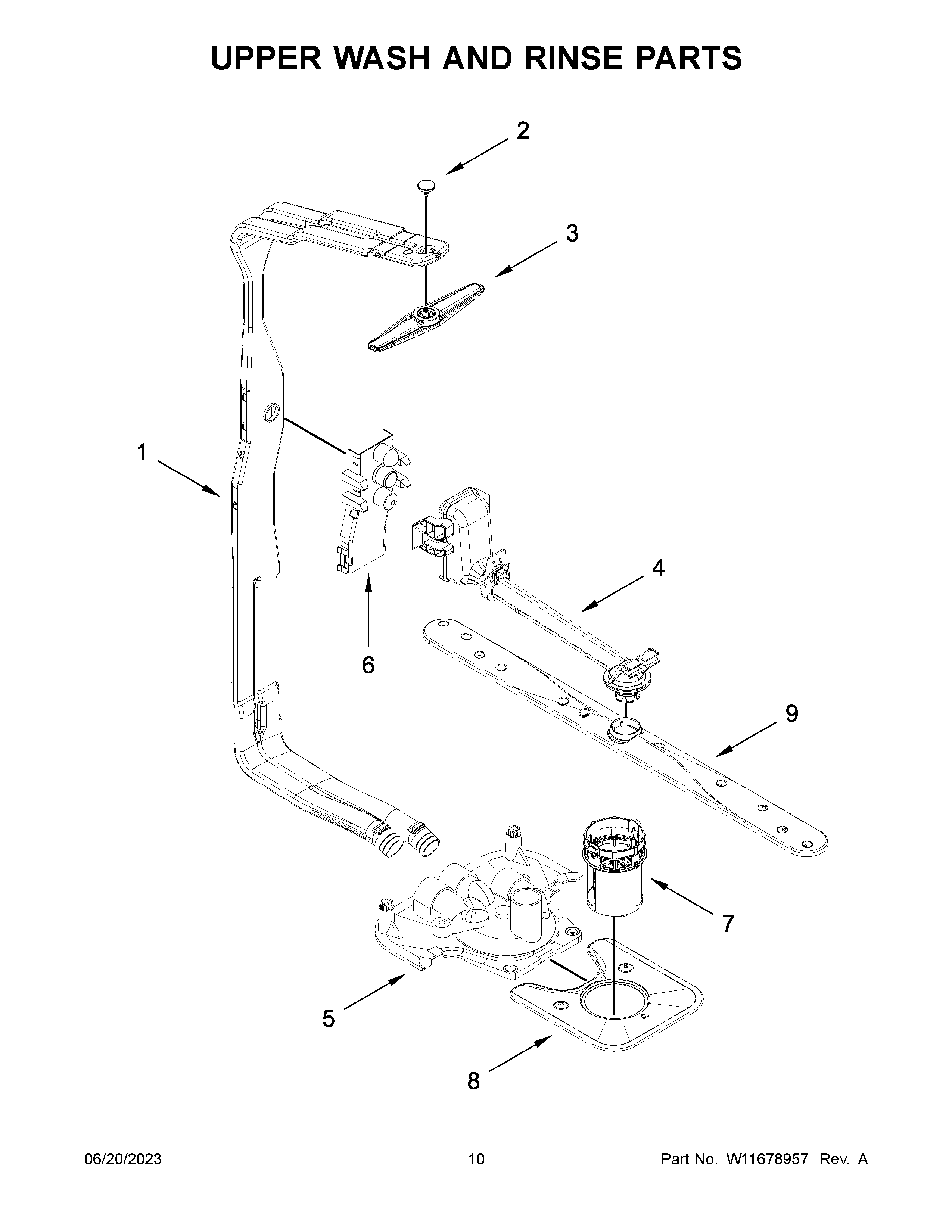

KDFE104KPS2 06 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1W11507999 Whirlpool Feed Tube
2W11590538 Whirlpool Retainer Assembly
3W11573766 Whirlpool Dishwasher Spray Arm
4W11662109 Whirlpool Dishwasher Center Wash Manifold
5W11743983 Whirlpool Cover
6W11690647 Whirlpool Retainer Clip
7W11460958 Whirlpool Filter
8W11590541 Whirlpool Screen
9W11627525 Whirlpool Spray Arm
